AE95L-CWPDKK (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1993
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )4FC

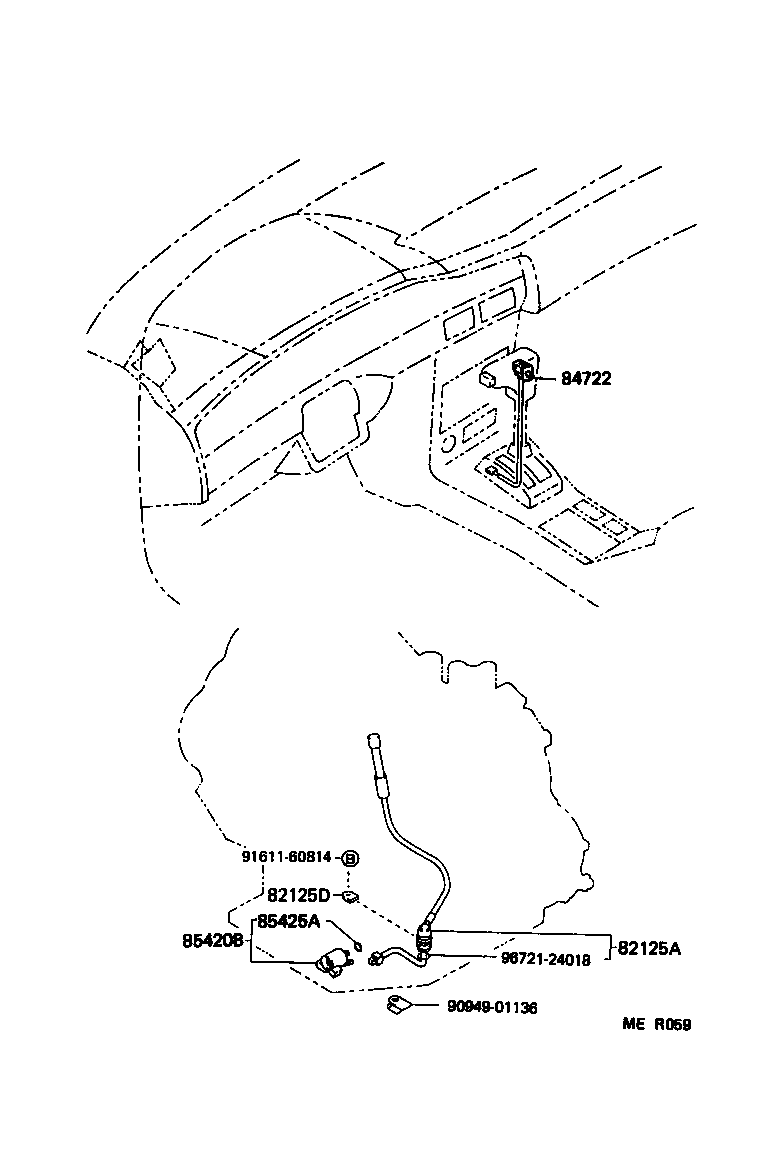

Click highlighted areas on diagram

diagram 82125A 82125D 84722 85420B 85425A 9094901136 9161160814 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20100

AE95..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AE95..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-12040B1

AE95..4FC

SHADOW GRAY,TRIM1#

 1
84722-12040J0

AE95..4FC

DARK BLUE,TRIM8#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-10011

AE95..4FC

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-06004

AE95..4FC

 1
Common parts
90949-01136
91611-60814
96721-24018
