AE95L-CWPDKK (1990)
Toyota Corolla Wagon
(9009- )4FC
A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-12030 |
AE95..4FC |
1 | ||
| 33481G - RING, SHAFT SNAP (FOR ATM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-99005 |
AE95..4FC |
1 | ||
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-12070 |
AE95..4FC N=25,NO MARK |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12040 |
AE95..4FC |
1 | ||
| 35105-12041 |
AE95..4FC |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
AE95..4FC |
1 | ||
| 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
AE95..4FC |
1 | ||
| 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) | ||||
| 90301-06196 |
AE95..4FC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-10011 |
AE95..4FC |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
AE95..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-17030 |
AE95..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30037 |
AE95..4FC |
1 | ||
| 90366-30054 |
AE95..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30053 |
AE95..4FC |
1 | ||
| 90366-30036 |
AE95..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-12280 |
AE95..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
AE95..4FC |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-17010 |
AE95..4FC |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90149-80017 |
AE95..4FC |
8 | ||
| 41301U - CASE SUB-ASSY, FRONT DIFFERENTIAL RING GEAR MOUNTING | ||||
| 41301-12140 |
AE95..4FC |
1 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-20010 |
AE95..4FC |
1 | ||
| 41306G - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT | ||||
| 90521-26004 |
AE95 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-12120 |
AE95..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-77004 |
AE95..4FC T=2.15,MARK 54 |
1 | ||
| 90564-77010 |
AE95..4FC T=2.45,MARK 60 |
1 | ||
| 90564-77017 |
AE95..4FC T=2.80,MARK 67 |
1 | ||
| 90564-77015 |
AE95..4FC T=2.70,MARK 65 |
1 | ||
| 90564-77018 |
AE95..4FC T=2.85,MARK 68 |
1 | ||
| 90564-77014 |
AE95..4FC T=2.65,MARK 64 |
1 | ||
| 90564-77021 |
AE95..4FC T=2.09,MARK D |
1 | ||
| 90564-77023 |
AE95..4FC T=2.16,MARK G |
1 | ||
| 90564-77020 |
AE95..4FC T=2.06,MARK C |
1 | ||
| 90564-77007 |
AE95..4FC T=2.30,MARK 57 |
1 | ||
| 90564-77001 |
AE95..4FC T=2.00,MARK 51 |
1 | ||
| 90564-77011 |
AE95..4FC T=2.50,MARK 61 |
1 | ||
| 90564-77016 |
AE95..4FC T=2.75,MARK 66 |
1 | ||
| 90564-77027 |
AE95..4FC T=2.33,MARK M |
1 | ||
| 90564-77025 |
AE95..4FC T=2.24,MARK J |
1 | ||
| 90564-77013 |
AE95..4FC T=2.60,MARK 63 |
1 | ||
| 90564-77030 |
AE95..4FC T=2.42,MARK Q |
1 | ||
| 90564-77012 |
AE95..4FC T=2.55,MARK 62 |
1 | ||
| 90564-77024 |
AE95..4FC T=2.21,MARK H |
1 | ||
| 90564-77026 |
AE95..4FC T=2.27,MARK K |
1 | ||
| 90564-77029 |
AE95..4FC T=2.39,MARK P |
1 | ||
| 90564-77022 |
AE95..4FC T=2.12,MARK E |
1 | ||
| 90564-77019 |
AE95..4FC T=2.03,MARK B |
1 | ||
| 90564-77028 |
AE95..4FC T=2.36,MARK N |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-67001 |
AE95..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55028 |
AE95..4FC |
1 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
AE95..4FC |
4 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
AE95 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
AE95 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE95..4FC |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE95..4FC |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90249-06093 |
AE95..4FC |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-12060 |
AE95..4FC |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE95..4FC |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE95..4FC |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12420 |
AE95 T=1.40,MARK K |
1 | ||
| 41361-12410 |
AE95 T=1.35,MARK J |
1 | ||
| 41361-12350 |
AE95..4FC T=1.05,MARK C |
2 | ||
| 41361-12340 |
AE95..4FC T=1.00,MARK B |
2 | ||
| 41361-12400 |
AE95 T=1.30,MARK H |
1 | ||
| 41361-12390 |
AE95..4FC T=1.25,MARK G |
2 | ||
| 41361-12360 |
AE95..4FC T=1.10,MARK D |
2 | ||
| 41361-12380 |
AE95..4FC T=1.20,MARK F |
2 | ||
| 41361-12330 |
AE95 T=0.95,MARK A |
1 | ||
| 41361-12370 |
AE95..4FC T=1.15,MARK E |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12420 |
AE95 T=1.40,MARK K |
1 | ||
| 41361-12410 |
AE95 T=1.35,MARK J |
1 | ||
| 41361-12350 |
AE95..4FC T=1.05,MARK C |
2 | ||
| 41361-12340 |
AE95..4FC T=1.00,MARK B |
2 | ||
| 41361-12400 |
AE95 T=1.30,MARK H |
1 | ||
| 41361-12390 |
AE95..4FC T=1.25,MARK G |
2 | ||
| 41361-12360 |
AE95..4FC T=1.10,MARK D |
2 | ||
| 41361-12380 |
AE95..4FC T=1.20,MARK F |
2 | ||
| 41361-12330 |
AE95 T=0.95,MARK A |
1 | ||
| 41361-12370 |
AE95..4FC T=1.15,MARK E |
2 | ||
| 41365 - WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.1 | ||||
| 41365-12010 |
AE95..4FC |
1 | ||
| 41366 - WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.2 | ||||
| 41366-12010 |
AE95..4FC |
1 | ||
| 41407 - SPRING SUB-ASSY, DIFFERENTIAL LOCK PISTON RETURN | ||||
| 41407-12010 |
AE95..4FC |
1 | ||
| 41407A - RING, SHAFT SNAP (FOR DIFF LOCK PISTON RETURN SPRING) | ||||
| 90520-43008 |
AE95..4FC |
1 | ||
| 41471 - PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1 | ||||
| 41471-12010 |
AE95..4FC |
1 | ||
| 41471A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1) | ||||
| 90301-55004 |
AE95..4FC |
1 | ||
| 41472 - PISTON, DIFFERENTIAL LOCK CLUTCH, NO.2 | ||||
| 41472-12010 |
AE95..4FC |
1 | ||
| 41472A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) | ||||
| 90301-46002 |
AE95..4FC INNER |
1 | ||
| 90301-98001 |
AE95..4FC OUTER |
1 | ||
| 41472A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) | ||||
| 90301-46002 |
AE95..4FC INNER |
1 | ||
| 90301-98001 |
AE95..4FC OUTER |
1 | ||
| 41473 - SLEEVE, DIFFERENTIAL LOCK CLUTCH PISTON REACTION | ||||
| 41473-12010 |
AE95..4FC |
1 | ||
| 41473A - RING, O (FOR PISTON REACTION SLEEVE) | ||||
| 90301-92001 |
AE95..4FC |
1 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-12010 |
AE95..4FC |
7 | ||
| 41476 - FLANGE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41476-12010 |
AE95..4FC |
1 | ||
| 41476A - RING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE) | ||||
| 90521-99057 |
AE95..4FC |
1 | ||

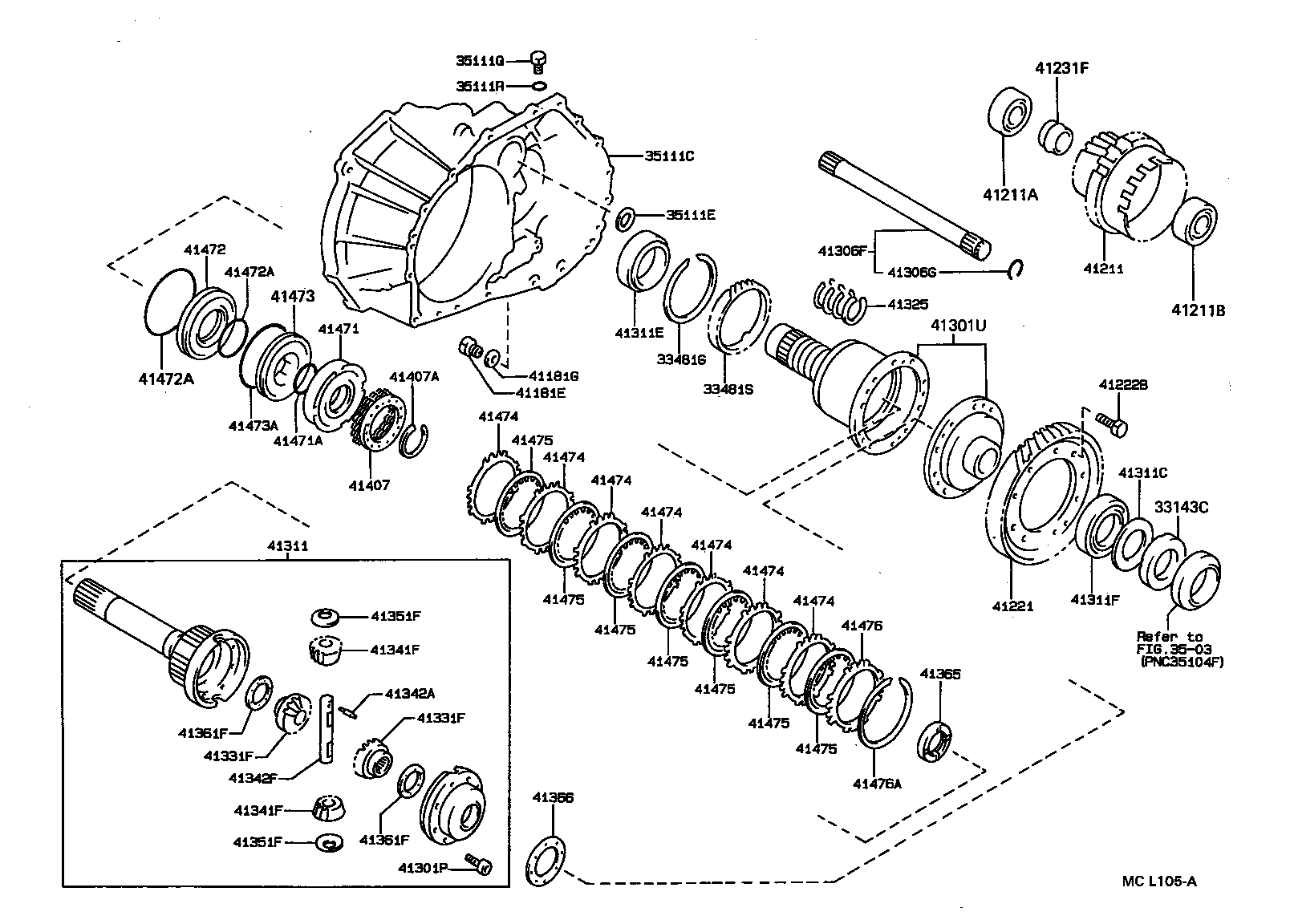

| Linked diagrams | ||||
| 3503 | ||||
