AE95L-CWPDKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

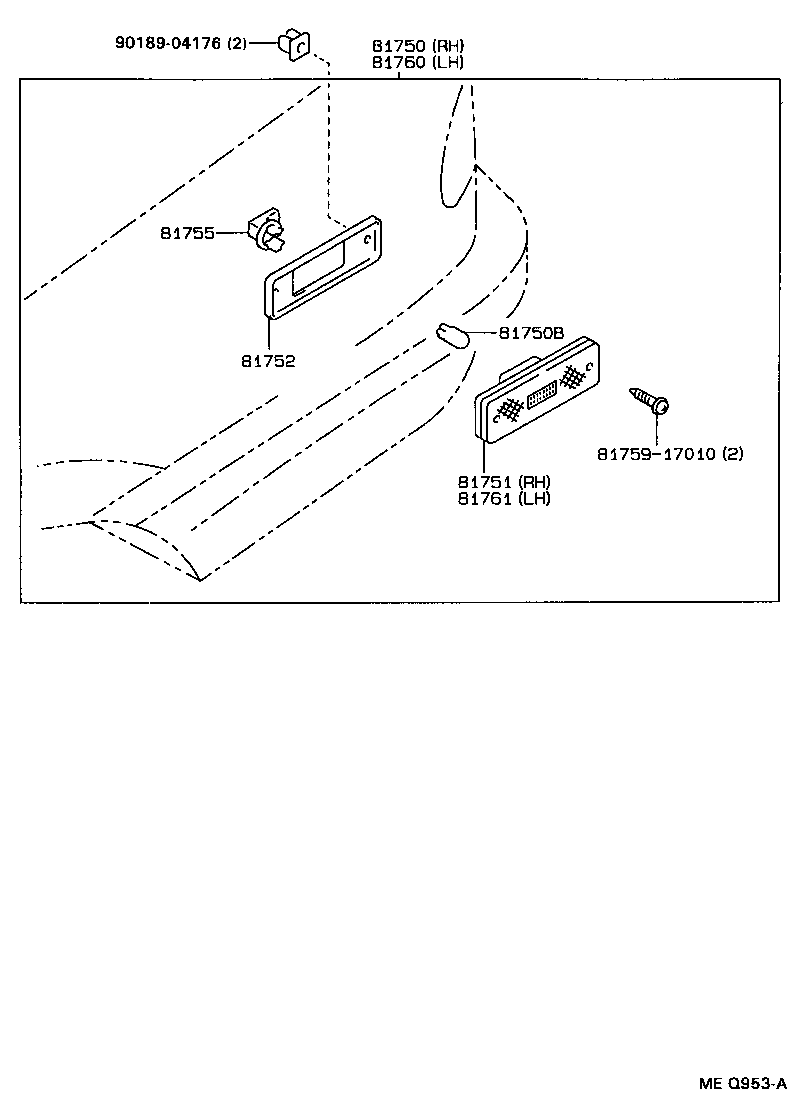

Click highlighted areas on diagram

diagram 81750 81750B 81751 81752 81755 8175917010 81760 81761 9018904176
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-16020

AE95

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

AE95

12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-16020

AE95

 1
81752 - GASKET, REAR SIDE MARKER LAMP LENS
81752-17010

AE95

 2
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
90075-99005

AE95

 2
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-16020

AE95

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-16020

AE95

 1
Common parts
81759-17010
90189-04176
