AE95L-CWPDKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9009- )

Click highlighted areas on diagram

diagram 77601B 77602B 77614 77614 77641A 77651A 77652A 77652A 9011906407 9011908499 9011910477 9046709085
Part # Description Qty Price
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-12161

AE95

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-12110

AE95

 1
77614 - SEAT, FUEL TANK BAND
77682-12010

AE95

LH

 1
77681-12020

AE95

RH

 1
77614 - SEAT, FUEL TANK BAND
77682-12010

AE95

LH

 1
77681-12020

AE95

RH

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-12150

AE95

 1
77651A - CUSHION, FUEL TANK, NO.1
77652-12070

AE95

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-12090

AE95

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-12090

AE95

 2
Common parts
90119-06407
90119-08499
90119-10477
90467-09085

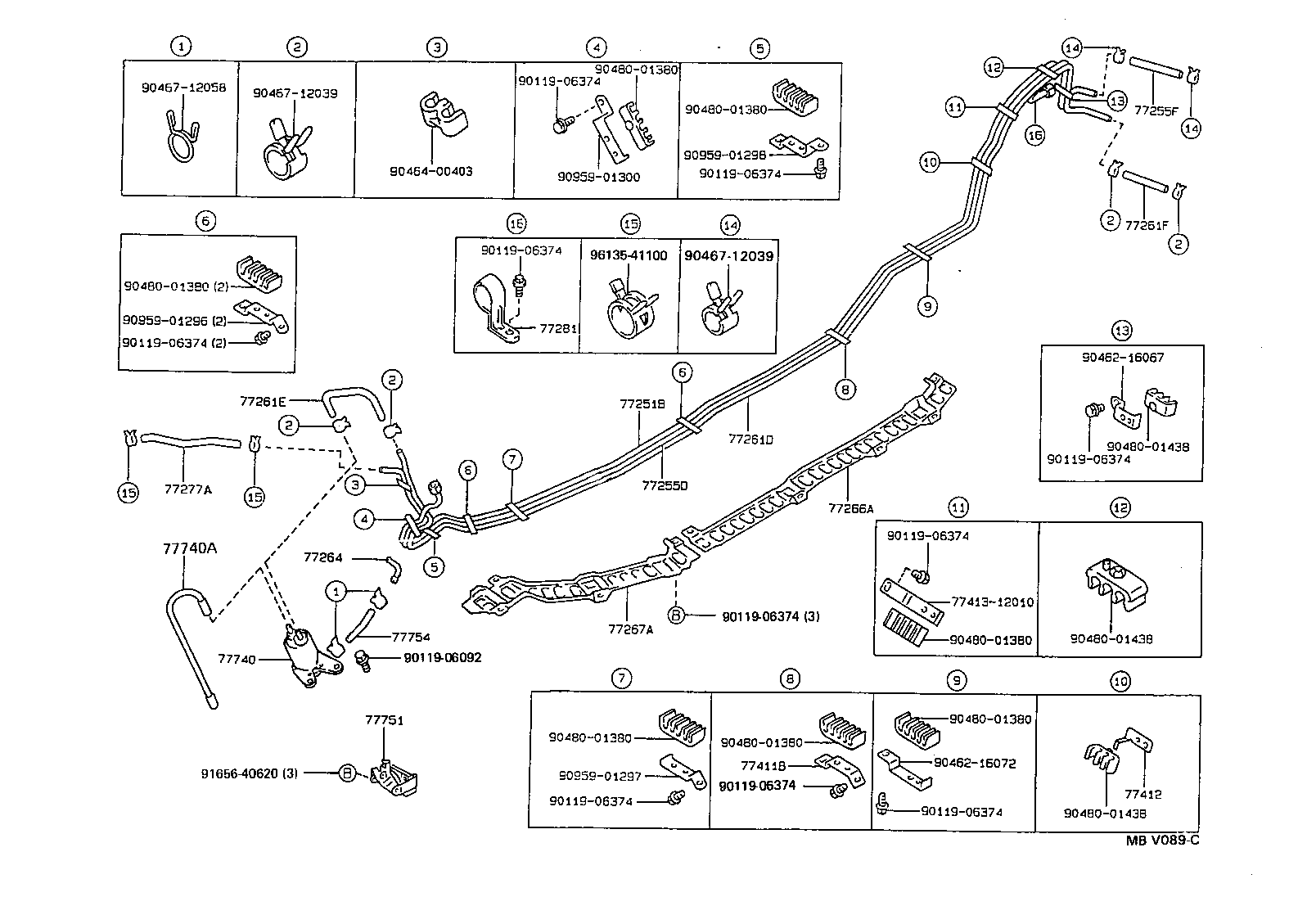

ILLUST NO. 3 OF 3(9009- )

Click highlighted areas on diagram

diagram 77251B 77255D 77255F 77261D 77261E 77261F 77264 77266A 77267A 77277A 77281 77411B 77412 7741312010 77740 77740A 77751 77754 9011906092 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9046216067 9046216072 9046400403 9046712039 9046712039 9046712058 9048001380 9048001380 9048001380 9048001380 9048001380 9048001380 9048001380 9048001438 9048001438 9048001438 9095901296 9095901297 9095901298 9095901300 9165640620 9613541100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12430

AE95

 1
77255D - TUBE, FUEL RETURN
77255-12380

AE95

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06030

AE95

*H,L=300

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12280

AE95

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12120

AE95

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77249-12060

AE95

 1
77264 - TUBE, CANISTER TO FRONT SIDE MEMBER
77264-12160

AE95

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12050

AE95

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE95

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12102

AE95

L=340

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-12020

AE95

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-12010

AE95

 1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-12010

AE95

 1
77740 - CANISTER ASSY, CHARCOAL
77740-12570

AE95

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90447-04125

AE95

L=490

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12050

AE95

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12130

AE95

 1
Common parts
77413-12010
90119-06092
90119-06374
90462-16067
90462-16072
90464-00403
90467-12039
90467-12058
90480-01380
90480-01438
90959-01296
90959-01297
90959-01298
90959-01300
91656-40620
96135-41100

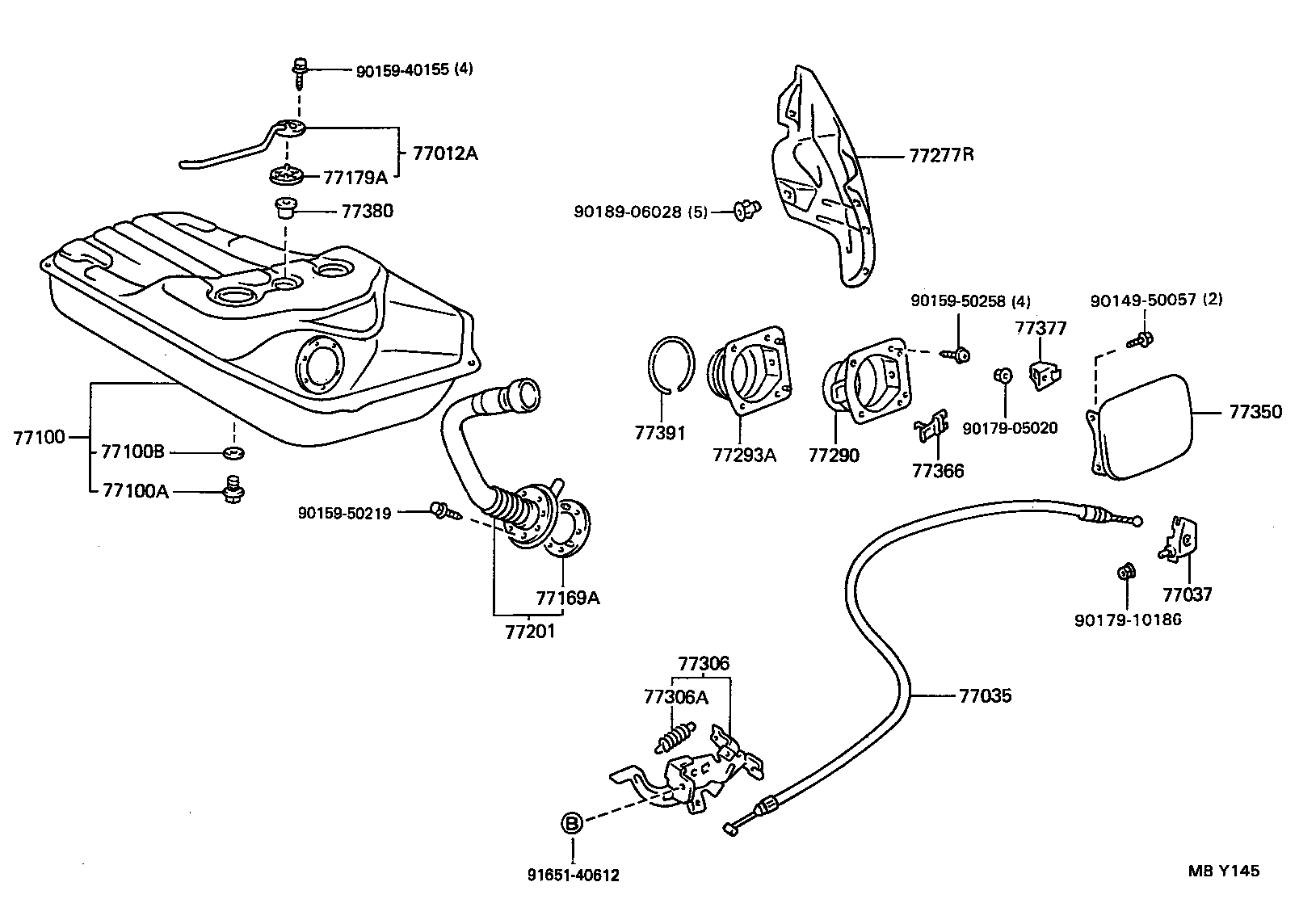

ILLUST NO. 1 OF 3(9009- )

Click highlighted areas on diagram

diagram 77012A 77035 77037 77100 77100A 77100B 77169A 77179A 77201 77277R 77290 77293A 77306 77306A 77350 77366 77377 77380 77391 9014950057 9015940155 9015950219 9015950258 9017905020 9017910186 9018906028 9165140612
Part # Description Qty Price
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-12060

AE95

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12260

AE95

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050

AE95

 1
77100 - TANK ASSY, FUEL
77001-19565

AE95

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

AE95

 1
77100B - GASKET(FOR FUEL TANK)
90430-20007

AE95

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-12020

AE95

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-16010

AE95

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12370

AE95

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12110

AE95

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12070

AE95

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-12040

AE95

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-13030

AE95

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

AE95

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12240

AE95

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-12010

AE95

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12040

AE95

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-14020

AE95

 1
77391 - RING, FUEL INLET BOX
77391-14020

AE95

 1
Common parts
90149-50057
90159-40155
90159-50219
90159-50258
90179-05020
90179-10186
90189-06028
91651-40612
