AE95L-CWMXKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

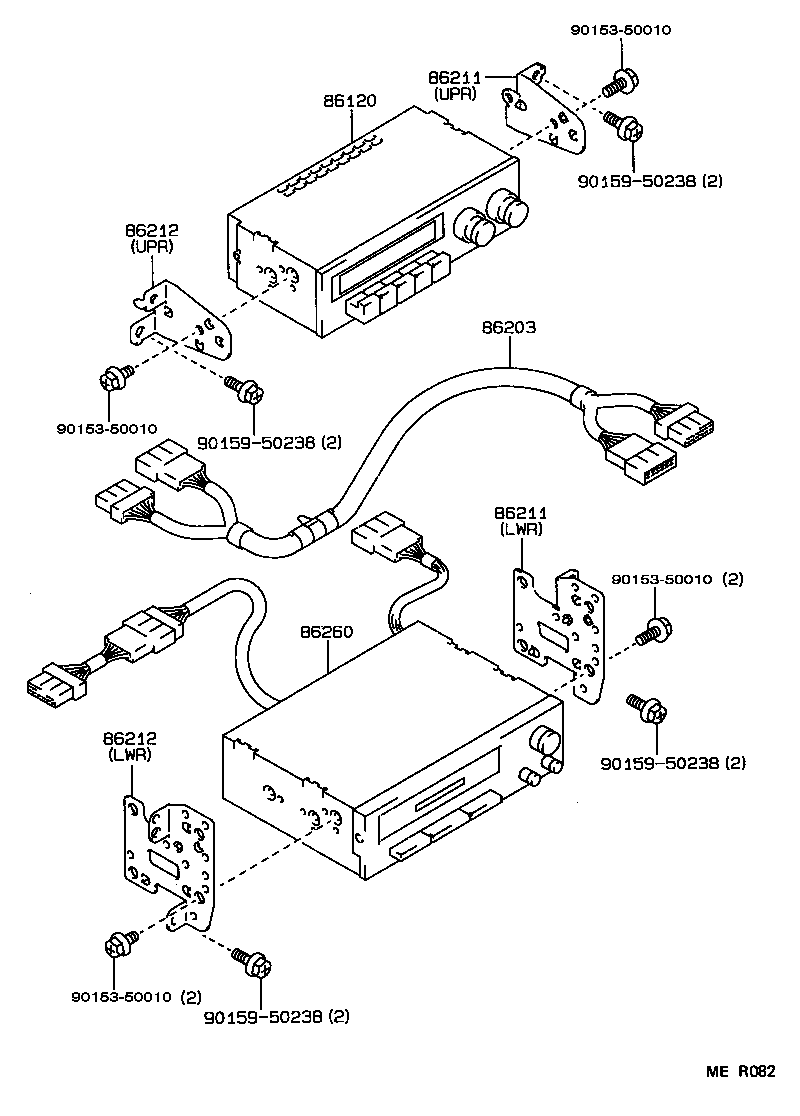

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-28041 |
AE95..SR5 AM/FM MPX ETR,4-SPEAKER |
1 | ||
| 86120-16571 |
AE95 AM/FM MPX ETR,4-SPEAKERS,W(CASSETTE) |
1 | ||
| 86120-12840 |
AE95..SR5 FUJITSU TEN,AM/FM MPX ETR,4-SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12210 |
AE95 UPR |
1 | ||
| 86211-12220 |
AE95 LWR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12210 |
AE95 UPR |
1 | ||
| 86211-12220 |
AE95 LWR |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12190 |
AE95 UPR |
1 | ||
| 86212-12200 |
AE95 LWR |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12190 |
AE95 UPR |
1 | ||
| 86212-12200 |
AE95 LWR |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||
(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 90980-05204 |
AE95 NO.1 |
1 | ||
