AE95L-CWMXKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9009- )

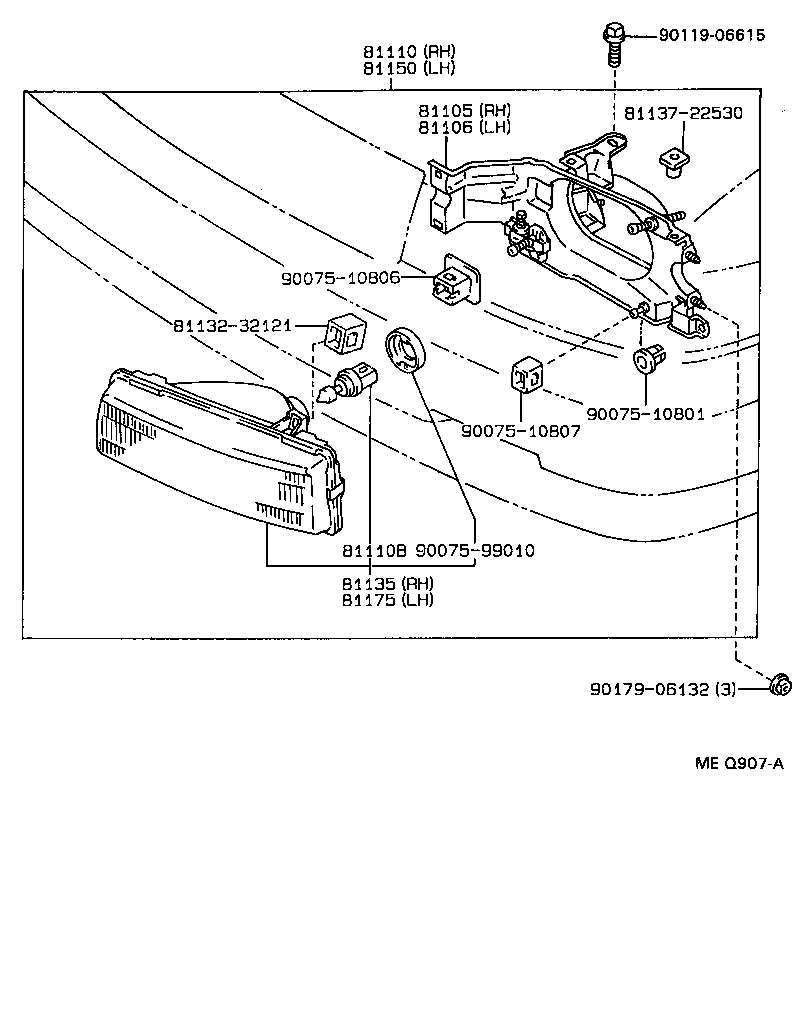

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-1A750	AE95	09/1990 - 08/1993	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-1A750	AE95	09/1990 - 08/1993	1
81110 - HEADLAMP ASSY, RH
81110-1A750	AE95	09/1990 - 08/1993	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032	AE95 12V 65/45W,HAL,WH	09/1990 - 08/1993	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-1A750	AE95	09/1990 - 08/1993	1
81150 - HEADLAMP ASSY, LH
81160-1A750	AE95	09/1990 - 08/1993	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A750	AE95	09/1990 - 08/1993	1
Common parts
81132-32121
81137-22530
90075-10801
90075-10806
90075-10807
90075-99010
90119-06615
90179-06132
