AE95L-CWMDKA (1990)
Toyota Corolla Wagon
(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12290 |
AE95 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12290 |
AE95 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12290 |
AE95 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-12290 |
AE95 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-16050 |
AE95..USA |
1 | ||
| 85310-14080 |
AE95..USA COLD SPEC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-16050 |
AE95..USA |
1 | ||
| 85310-14080 |
AE95..USA COLD SPEC |
1 | ||
| 85312 - PACKING, WINDSHIELD WASHER TANK | ||||
| 85312-12650 |
AE95 |
1 | ||
| 85312 - PACKING, WINDSHIELD WASHER TANK | ||||
| 85312-12650 |
AE95 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
AE95..USA COLD SPEC |
1 | ||
| 90099-32089 |
AE95..USA |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
AE95..USA COLD SPEC |
1 | ||
| 90099-32089 |
AE95..USA |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-12680 |
AE95..USA |
1 | ||
| 85331-12700 |
AE95..USA COLD SPEC |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-12680 |
AE95..USA |
1 | ||
| 85331-12700 |
AE95..USA COLD SPEC |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12660 |
AE95 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12660 |
AE95 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
AE95..USA COLD SPEC,NO.1 |
1 | ||
| 85333-20020 |
AE95..USA COLD SPEC,NO.2 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
AE95..USA COLD SPEC,NO.1 |
1 | ||
| 85333-20020 |
AE95..USA COLD SPEC,NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-14010 |
AE95..USA COLD SPEC,2-WAY,NO.1 |
1 | ||
| 85349-20010 |
AE95..USA COLD SPEC,2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AE95..USA 2-WAY |
2 | ||
| 85348-12250 |
AE95 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-14010 |
AE95..USA COLD SPEC,2-WAY,NO.1 |
1 | ||
| 85349-20010 |
AE95..USA COLD SPEC,2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AE95..USA 2-WAY |
2 | ||
| 85348-12250 |
AE95 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-14010 |
AE95..USA COLD SPEC,2-WAY,NO.1 |
1 | ||
| 85349-20010 |
AE95..USA COLD SPEC,2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AE95..USA 2-WAY |
2 | ||
| 85348-12250 |
AE95 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-14010 |
AE95..USA COLD SPEC,2-WAY,NO.1 |
1 | ||
| 85349-20010 |
AE95..USA COLD SPEC,2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AE95..USA 2-WAY |
2 | ||
| 85348-12250 |
AE95 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-14010 |
AE95..USA COLD SPEC,2-WAY,NO.1 |
1 | ||
| 85349-20010 |
AE95..USA COLD SPEC,2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AE95..USA 2-WAY |
2 | ||
| 85348-12250 |
AE95 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-14010 |
AE95..USA COLD SPEC,2-WAY,NO.1 |
1 | ||
| 85349-20010 |
AE95..USA COLD SPEC,2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AE95..USA 2-WAY |
2 | ||
| 85348-12250 |
AE95 3-WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AE95..USA |
1 | ||
| 85355-32110 |
AE95..USA COLD SPEC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AE95..USA |
1 | ||
| 85355-32110 |
AE95..USA COLD SPEC |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33410 |
AE95..USA *H,L=1100 |
1 | ||
| 90099-33075 |
AE95..USA L=1100,COLD SPEC |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33410 |
AE95..USA *H,L=1100 |
1 | ||
| 90099-33075 |
AE95..USA L=1100,COLD SPEC |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33196 |
AE95 *H,L=560 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33196 |
AE95 *H,L=560 |
1 | ||
| 85372G - TUBE, RUBBER | ||||
| 90099-33080 |
AE95..USA L=1450,COLD SPEC |
1 | ||
| 90099-33080 |
AE95..USA L=1450 |
1 | ||
| 85372G - TUBE, RUBBER | ||||
| 90099-33080 |
AE95..USA L=1450,COLD SPEC |
1 | ||
| 90099-33080 |
AE95..USA L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 82711-24070 | ||||
| 90119-06144 | ||||
| 90959-01335 | ||||
| 90989-01031 | ||||

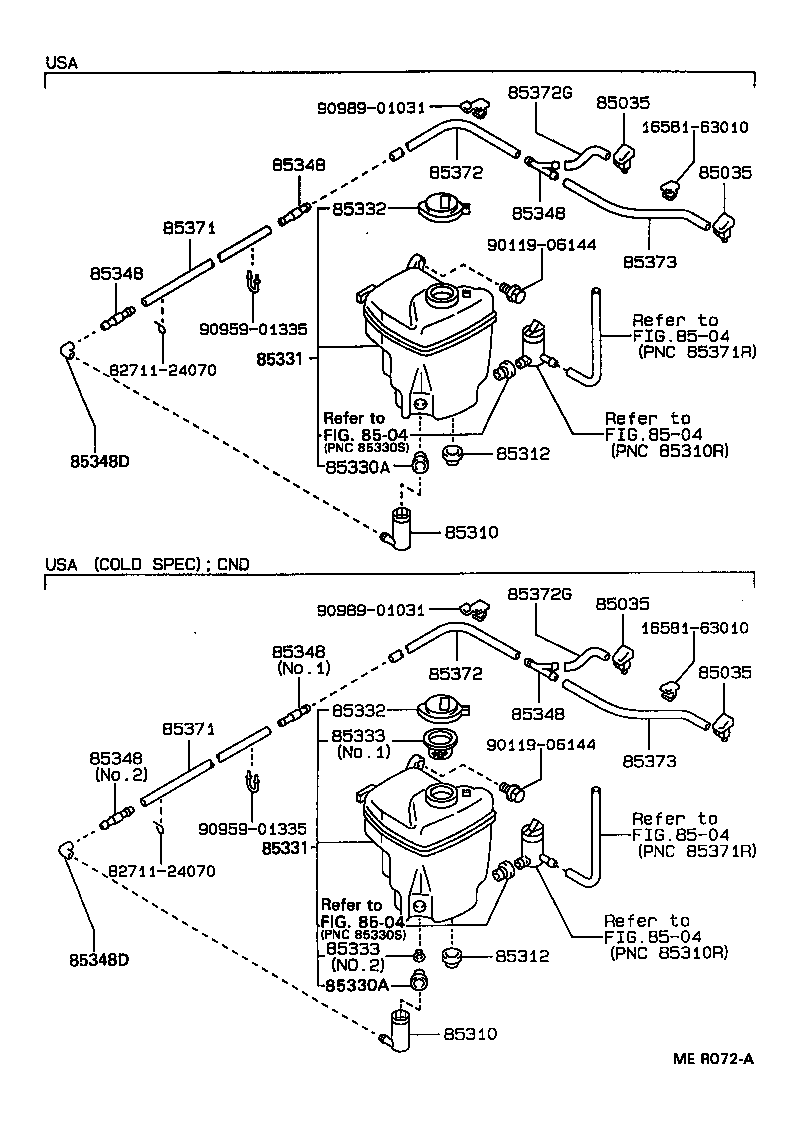

| Linked diagrams | ||||
| 8504 | ||||
