AE95L-CWMDKA (1990)
Toyota Corolla Wagon

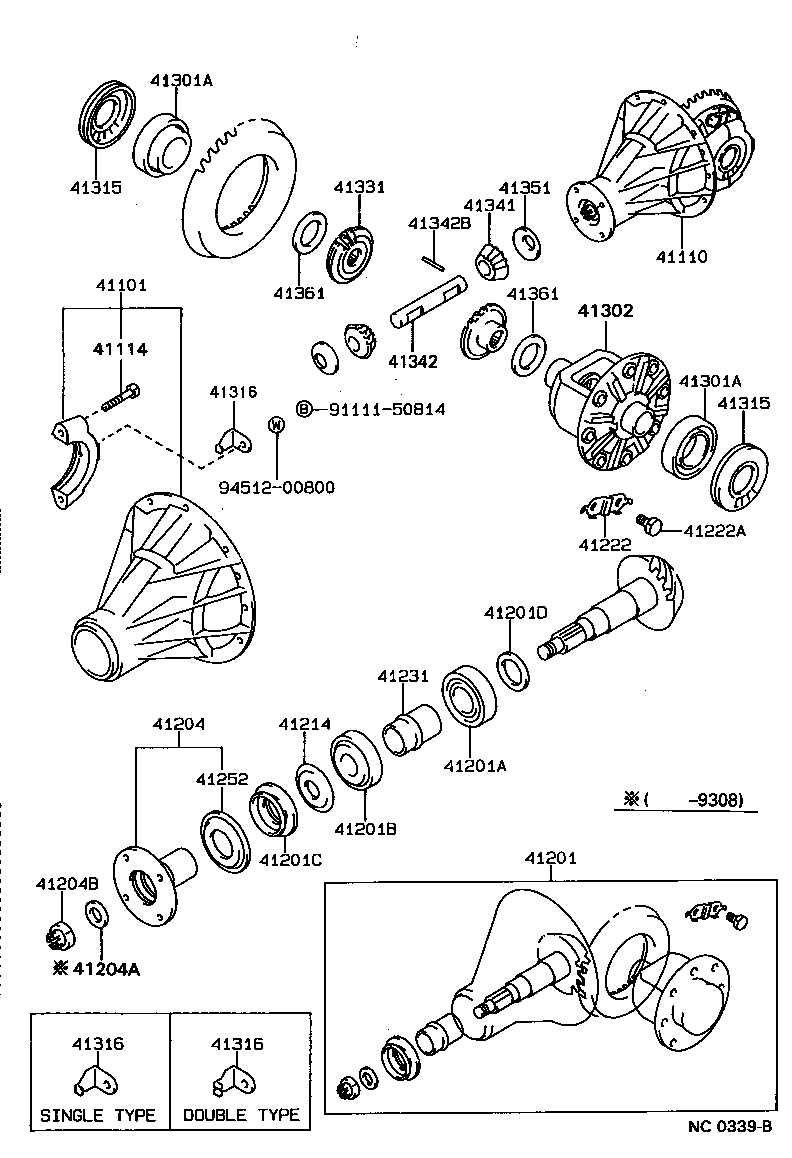

ILLUST NO. 1 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-12040 |
AE95 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-12220 |
AE95 *FGR=41:14=2.929 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12114 |
AE95 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29835 |
AE95 *FGR=41:14=2.929 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-34049 |
AE95 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30002 |
AE95 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38015 |
AE95 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35404 |
AE95 T=2.60,MARK 13 |
1 | ||
| 90201-35402 |
AE95 T=2.54,MARK 11 |
1 | ||
| 90201-35397 |
AE95 T=2.39,MARK 06 |
1 | ||
| 90201-35401 |
AE95 T=2.51,MARK 10 |
1 | ||
| 90201-35438 |
AE95 T=2.63,MARK 14 |
1 | ||
| 90201-35400 |
AE95 T=2.48,MARK 09 |
1 | ||
| 90201-35435 |
AE95 T=2.27,MARK 02 |
1 | ||
| 90201-35398 |
AE95 T=2.42,MARK 07 |
1 | ||
| 90201-35439 |
AE95 T=2.66,MARK 15 |
1 | ||
| 90201-35396 |
AE95 T=2.36,MARK 05 |
1 | ||
| 90201-35437 |
AE95 T=2.33,MARK 04 |
1 | ||
| 90201-35399 |
AE95 T=2.43,MARK 08 |
1 | ||
| 90201-35440 |
AE95 T=2.69,MARK 16 |
1 | ||
| 90201-35436 |
AE95 T=2.30,MARK 03 |
1 | ||
| 90201-35403 |
AE95 T=2.57,MARK 12 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
AE95 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AE95 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AE95 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
AE95 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-28010 |
AE95 |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AE95 |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AE95 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-22010 |
AE95 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
AE95 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
AE95 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-22031 |
AE95 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-22011 |
AE95 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-22011 |
AE95 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-22011 |
AE95 DOUBLE TYPE |
2 | ||
| 41316-22011 |
AE95 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-22011 |
AE95 DOUBLE TYPE |
2 | ||
| 41316-22011 |
AE95 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-22011 |
AE95 DOUBLE TYPE |
2 | ||
| 41316-22011 |
AE95 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22021 |
AE95 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
AE95 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22010 |
AE95 |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04193 |
AE95 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12030 |
AE95 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
AE95 T=1.10,MARK 03 |
2 | ||
| 41361-22150 |
AE95 T=1.05,MARK 15 |
2 | ||
| 41361-22020 |
AE95 T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
AE95 T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
AE95 T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
AE95 T=0.95,MARK 14 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
AE95 T=1.10,MARK 03 |
2 | ||
| 41361-22150 |
AE95 T=1.05,MARK 15 |
2 | ||
| 41361-22020 |
AE95 T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
AE95 T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
AE95 T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
AE95 T=0.95,MARK 14 |
2 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||

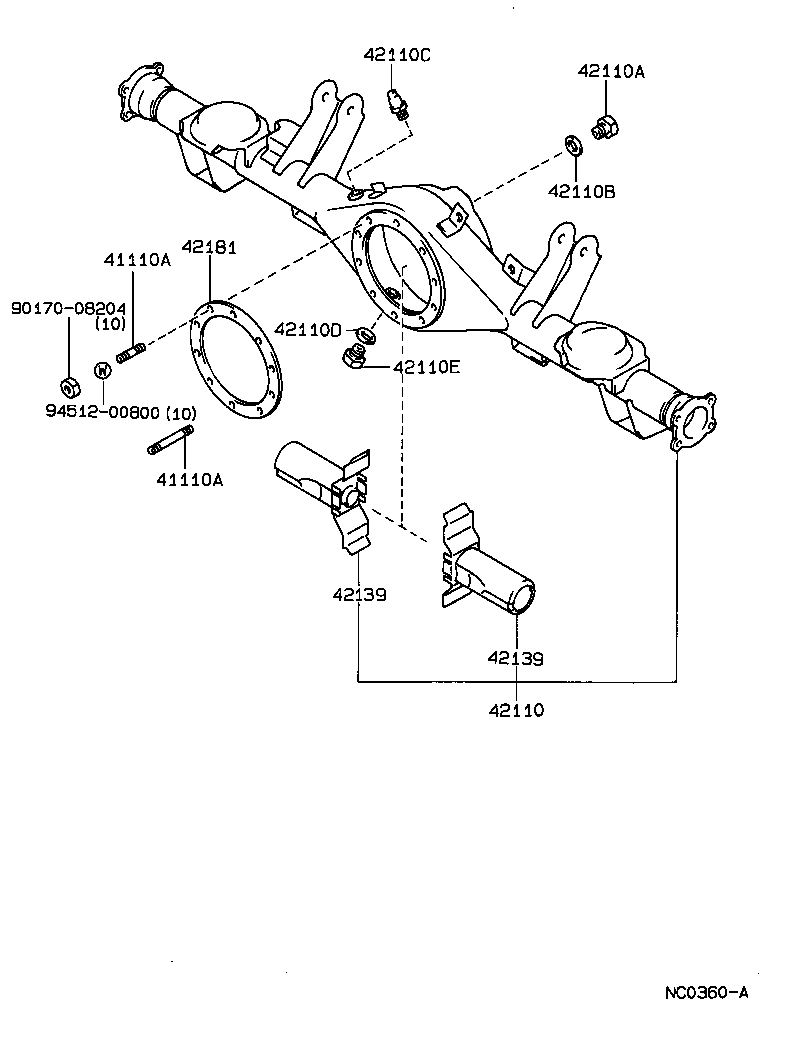

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
AE95 S=12 & 15,L=34 |
9 | ||
| 90116-08236 |
AE95 S=12 & 15,L=78 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
AE95 S=12 & 15,L=34 |
9 | ||
| 90116-08236 |
AE95 S=12 & 15,L=78 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-12190 |
AE95 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
AE95 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
AE95 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
AE95 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
AE95 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
AE95 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-14010 |
AE95 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-14010 |
AE95 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-22010 |
AE95 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
