AE95L-CWMDKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

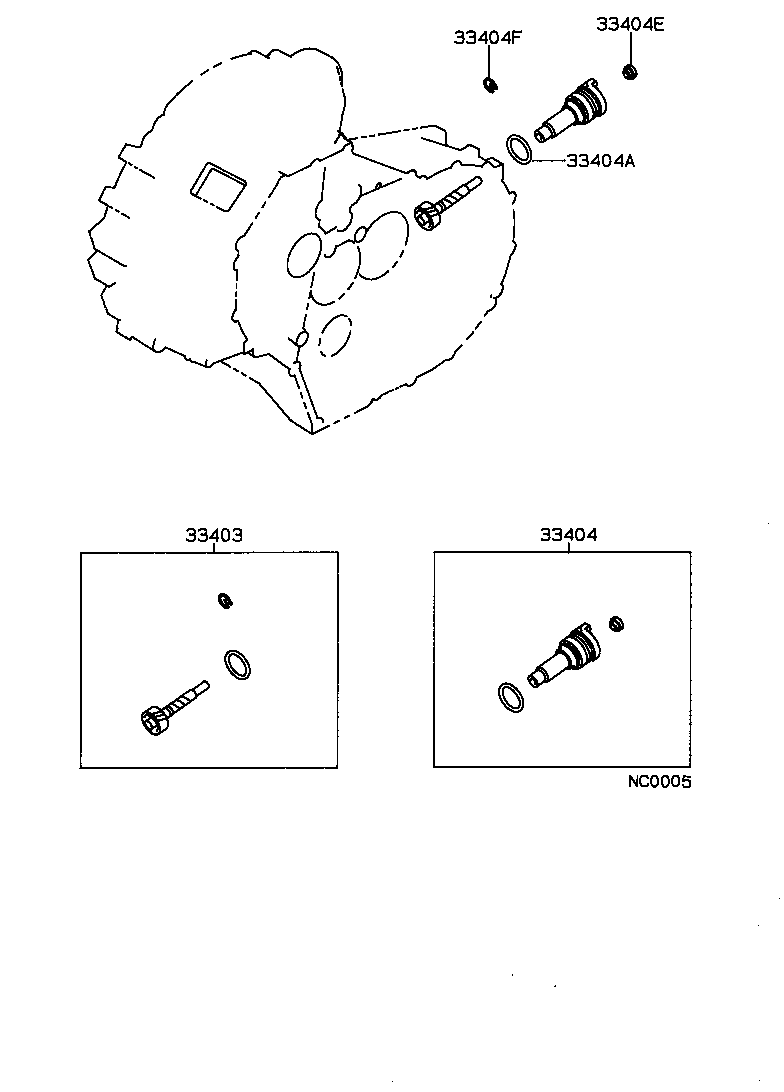

Click highlighted areas on diagram

E57F5

diagram 33403 33404 33404A 33404E 33404F
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19405

AE95..5F

N=30,MARK 30:35

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-17010

AE95..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96721-24030

AE95..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09003

AE95..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE95..5F

 1
