AE95L-CWMDKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

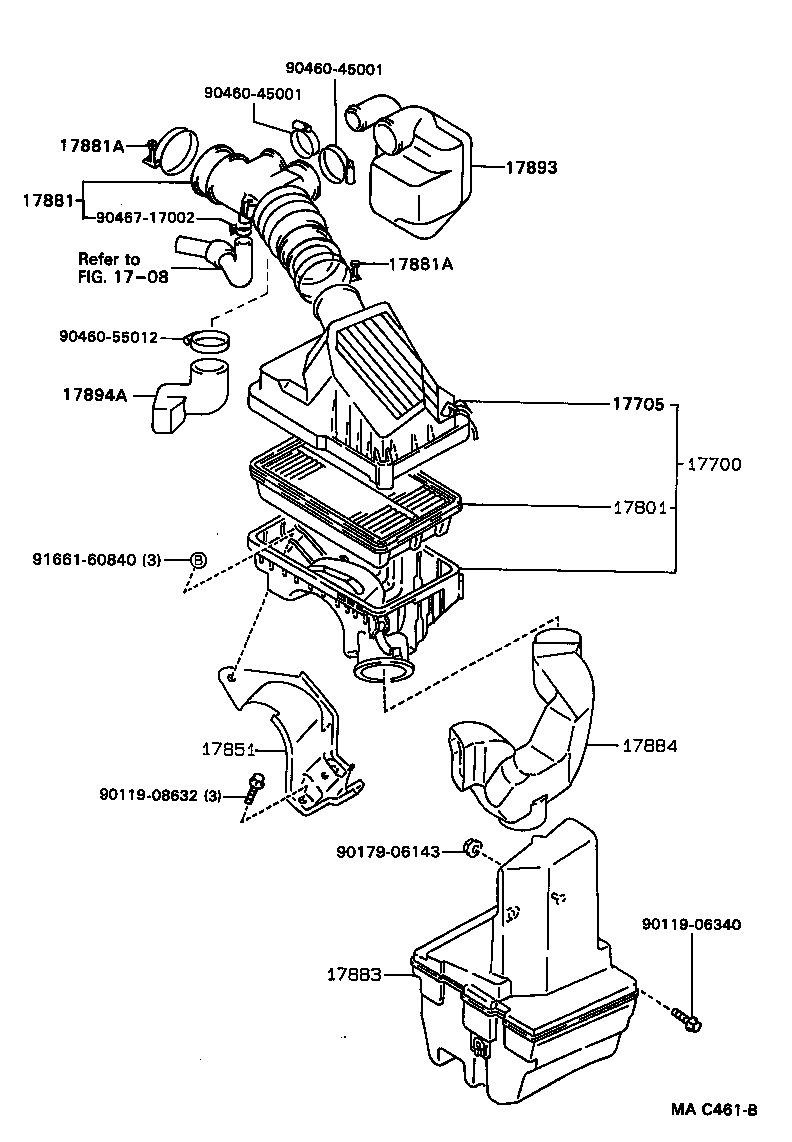

Click highlighted areas on diagram

diagram 1708 17700 17705 17801 17851 17881 17881A 17881A 17883 17884 17893 17894A 9011906340 9011908632 9017906143 9046045001 9046045001 9046055012 9046717002 9166160840
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-16680

4AFE..AE95

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16360

4AFE..AE95

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

4AFE..AE95

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-15010

4AFE..AE95

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-15160

4AFE..AE95

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73005

4AFE..AE95

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73005

4AFE..AE95

 2
17883 - HOSE, AIR CLEANER, NO.3
17883-16041

4AFE..AE95

 1
17884 - HOSE, AIR CLEANER, NO.4
17882-16100

4AFE..AE95

 1
17893 - RESONATOR, INTAKE AIR
17893-16060

4AFE..AE95

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-16020

4AFE..AE95

 1
Common parts
90119-06340
90119-08632
90179-06143
90460-45001
90460-55012
90467-17002
91661-60840
Linked diagrams
1708
