ZRE212L-DEXDPK (2019)
Toyota Corolla Sed (Nap)
(1903- )D,L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02390 |
MZEA12,ZRE212..S,X,Y MARK NBK D6360 |
1 | ||
| 04466-02390 |
ZRE212..CVT..(D,L) MARK NBK D6360,PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04466-47110 |
ZRE212..D,L MARK NBK 478-XW5P |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02430 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 04479-02430 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04479-12260 |
ZRE212..D,L |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-02130 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 04946-47070 |
ZRE212..D,L |
1 | ||
| 04946-02130 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02150 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04948-02150 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 04948-12060 |
ZRE212..D,L |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 31478-30010 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 31478-52010 |
ZRE212..D,L |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47547-20010 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47847-52050 |
ZRE212..D,L |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA614 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
4 | ||
| 90015-AA102 |
ZRE212..D,L |
4 | ||
| 90016-AA614 |
MZEA12,ZRE212..S,X,Y |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA614 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
4 | ||
| 90015-AA102 |
ZRE212..D,L |
4 | ||
| 90016-AA614 |
MZEA12,ZRE212..S,X,Y |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
ZRE212..D,L |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
ZRE212..D,L |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
MZEA12,ZRE212 (J) |
4 | ||
| 90080-10395 |
MZEA12,ZRE212 (L) |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
MZEA12,ZRE212 (J) |
4 | ||
| 90080-10395 |
MZEA12,ZRE212 (L) |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-02350 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47821-47110 |
ZRE212..D,L |
1 | ||
| 47821-02350 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-02340 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47821-47110 |
ZRE212..D,L |
1 | ||
| 47822-02340 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02350 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47830-02350 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47830-47111 |
ZRE212..D,L |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-10030 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47831-10030 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47831-52050 |
ZRE212..D,L |
2 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
ZRE212..D,L |
4 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
ZRE212..D,L |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02340 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47850-02340 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47850-47111 |
ZRE212..D,L |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02180 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47881-47010 |
ZRE212..D,L |
1 | ||
| 47881-02180 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02180 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47882-02180 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47882-47010 |
ZRE212..D,L |
1 | ||
(1903- )MZEA12 ; (1903- )ZRE212..CVT
ELECTRIC PARKING BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02390 |
MZEA12,ZRE212..S,X,Y MARK NBK D6360 |
1 | ||
| 04466-02390 |
ZRE212..CVT..(D,L) MARK NBK D6360,PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04466-47110 |
ZRE212..D,L MARK NBK 478-XW5P |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02430 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 04479-02430 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04479-12260 |
ZRE212..D,L |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-02130 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 04946-47070 |
ZRE212..D,L |
1 | ||
| 04946-02130 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02150 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 04948-02150 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 04948-12060 |
ZRE212..D,L |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 31478-30010 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 31478-52010 |
ZRE212..D,L |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47547-20010 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47847-52050 |
ZRE212..D,L |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA614 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
4 | ||
| 90015-AA102 |
ZRE212..D,L |
4 | ||
| 90016-AA614 |
MZEA12,ZRE212..S,X,Y |
4 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-50010 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47769-50010 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
MZEA12,ZRE212 (J) |
4 | ||
| 90080-10395 |
MZEA12,ZRE212 (L) |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-0R050 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47814-0R050 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-0R050 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47815-0R050 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-02350 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47821-47110 |
ZRE212..D,L |
1 | ||
| 47821-02350 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-02340 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47821-47110 |
ZRE212..D,L |
1 | ||
| 47822-02340 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02350 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47830-02350 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47830-47111 |
ZRE212..D,L |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-10030 |
MZEA12,ZRE212..S,X,Y |
2 | ||
| 47831-10030 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
2 | ||
| 47831-52050 |
ZRE212..D,L |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02340 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47850-02340 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47850-47111 |
ZRE212..D,L |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02180 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47881-47010 |
ZRE212..D,L |
1 | ||
| 47881-02180 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02180 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 47882-02180 |
ZRE212..CVT..(D,L) PARKING BRAKE-ELECTRIC PARKING BRAKE |
1 | ||
| 47882-47010 |
ZRE212..D,L |
1 | ||

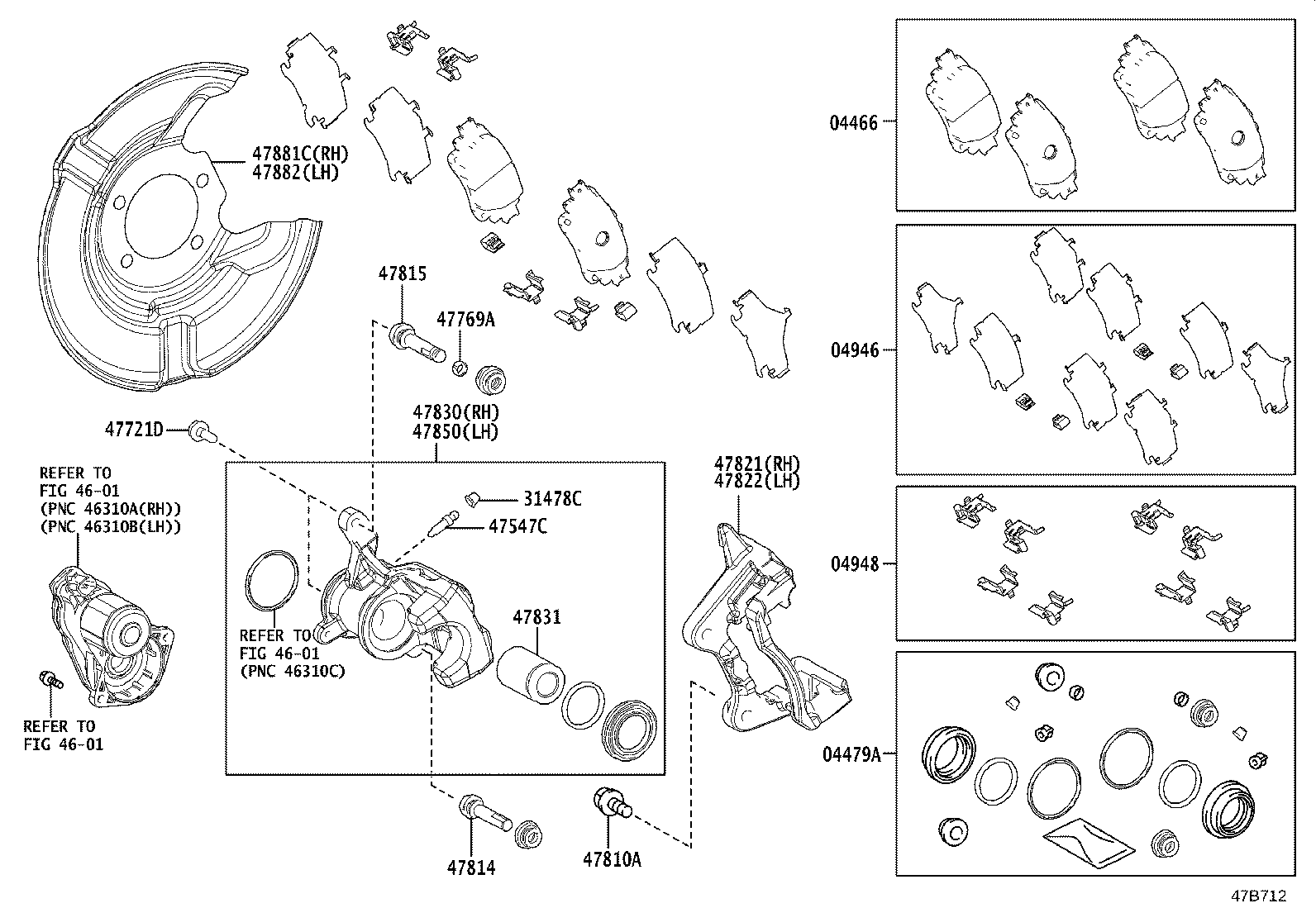

| Linked diagrams | ||||
| 4601 | ||||
