ZRE212L-DEXDPA (2019)

Toyota Corolla Sed (Nap)

Production Mar 2019 - Jul 2020
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 55900 9046705171 9046808048
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02D50B0

ZRE212..X

SILVER,TRIM0#,2#

 1
55900-02D50B0

ZRE212..L

SILVER,TRIM0#,1#,2#

 1
55900-02D40B0

ZRE212..D..USA

SILVER,TRIM1#,2#

 1
Common parts
90467-05171
90468-08048

(1903- )

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55086A 55846D 55846D 55950G 55990B 87211 87211A 87212 87212F 87212G 87212H 87212J 87212K 87220 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015077 9008017244 90119A0105 90119A0105
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02600

MZEA12,ZRE212

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02050

MZEA12,ZRE212

 1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-02570

MZEA12,ZRE212

 1
55846D - CLIP, HEATER TO REGISTER DUCT
90467-A0001C1

MZEA12,ZRE212

BLACK

 2
55846D - CLIP, HEATER TO REGISTER DUCT
90467-A0001C1

MZEA12,ZRE212

BLACK

 2
55950G - NOZZLE ASSY, DEFROSTER
55950-02400

MZEA12,ZRE212

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02270

MZEA12,ZRE212

 1
87211 - DUCT, AIR, NO.1
87211-02570

MZEA12,ZRE212

 1
87211A - DUCT, AIR, NO.2
87211-02580

MZEA12,ZRE212

 1
87212 - DUCT, AIR, REAR NO.1
87413-02030

MZEA12,ZRE212

 1
87212F - DUCT, AIR, REAR NO.2
87215-02120

MZEA12,ZRE212..USA

WITHOUT(COLD AREA SPEC)

 1
87215-02120

MZEA12,ZRE212

 1
87212G - DUCT, AIR, REAR NO.3
87213-02140

MZEA12,ZRE212

 1
87213-02140

MZEA12,ZRE212..USA

WITHOUT(COLD AREA SPEC)

 1
87212H - DUCT, AIR, REAR NO.4
87217-02010

MZEA12,ZRE212

 1
87217-02010

MZEA12,ZRE212..USA

WITHOUT(COLD AREA SPEC)

 1
87212J - DUCT, AIR, REAR NO.5
87212-02150

MZEA12,ZRE212..USA

WITHOUT(COLD AREA SPEC)

 1
87212-02150

MZEA12,ZRE212

 1
87212K - DUCT, AIR, REAR NO.6
87216-02060

MZEA12,ZRE212..USA

WITHOUT(COLD AREA SPEC)

 1
87216-02060

MZEA12,ZRE212

 1
87220 - DUCT ASSY, AIR
87220-02190

MZEA12,ZRE212

 1
87220-02191

MZEA12,ZRE212

 1
Common parts
90080-15073
90080-15077
90080-17244
90119-A0105

(1903- )

Click highlighted areas on diagram

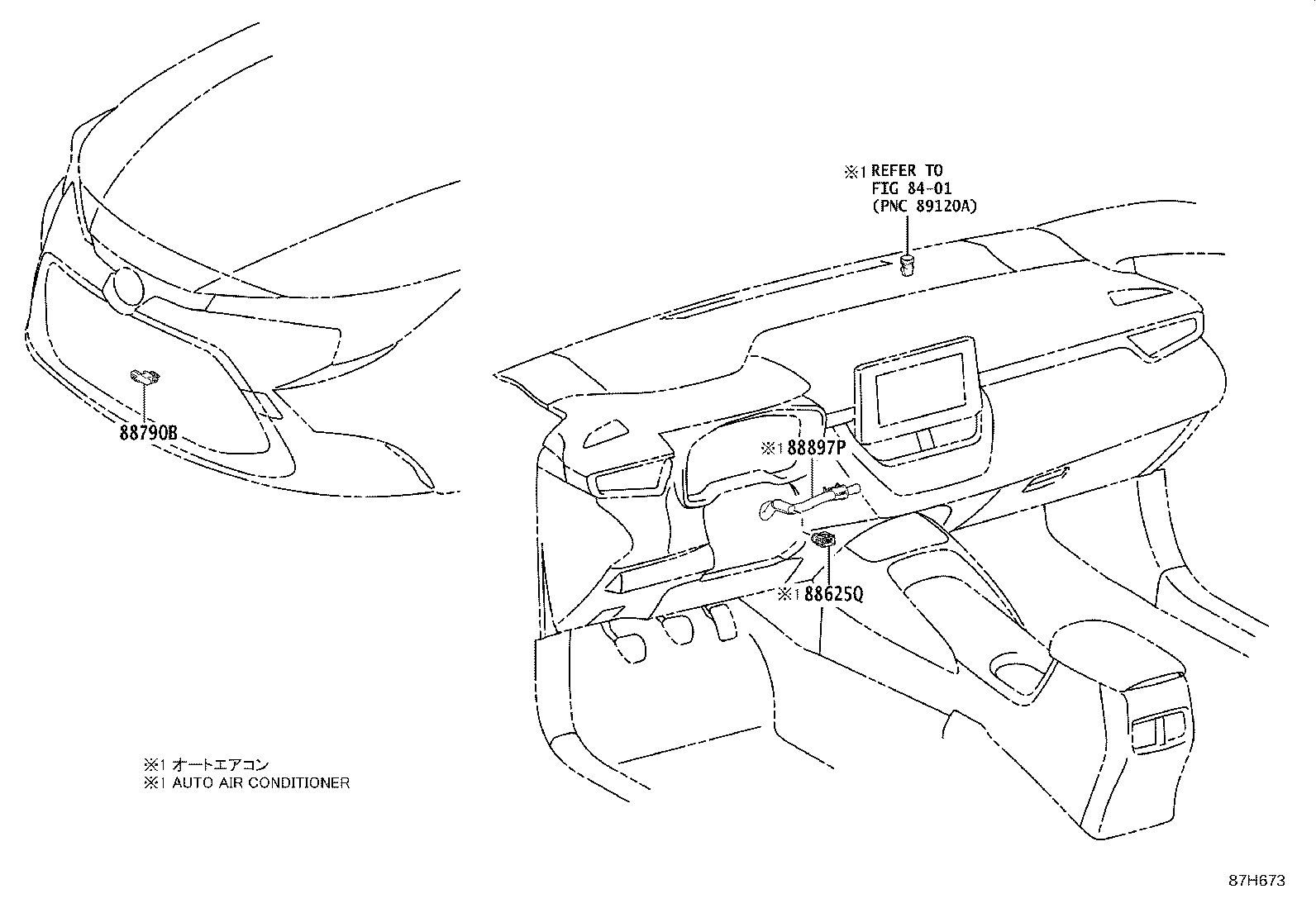

SENSOR

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-06040

MZEA12,ZRE212..L,S,X,Y

 1
88790B - THERMISTOR ASSY
88790-06020

MZEA12,ZRE212

 1
88897P - ASPIRATOR
88505-02210

MZEA12,ZRE212..L,S,X,Y

 1
Linked diagrams
8401
