ZRE212L-DEXDPA (2019)
Toyota Corolla Sed (Nap)
ILLUST NO. 2 OF 2(1903-2107)D ; (1903- )L,S,X,Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-02200C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55012-02200C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55012-02200C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02610B0 |
ZRE212..D,L LT.GRAY,TRIM1# |
1 | ||
| 55403-02610C0 |
MZEA12,ZRE212..D,L,X,Y BLACK,TRIM2# |
1 | ||
| 55403-02610A0 |
ZRE212..L,X FROMAGE,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02F50B0 |
ZRE212..L SILVER,TRIM0#,1#,2# |
1 | ||
| 55405-02F50B0 |
ZRE212..X SILVER,TRIM0#,2# |
1 | ||
| 55405-02E10 |
ZRE212..D |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02610C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55410-02650C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55410-02610C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55410-02650C0 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-02600B0 |
ZRE212..D,L LT.GRAY,TRIM1# |
1 | ||
| 55413-02620B0 |
ZRE212..L WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.GRAY,TRIM1# |
1 | ||
| 55413-02620A0 |
ZRE212..L WIRELESS DOOR LOCK-WITH(SMART ENTRY),FROMAGE,TRIM0# |
1 | ||
| 55413-02620C0 |
MZEA12,ZRE212..X,Y BLACK,TRIM2# |
1 | ||
| 55413-02600C0 |
ZRE212..D,L BLACK,TRIM2# |
1 | ||
| 55413-02600A0 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 55413-02620C0 |
ZRE212..L WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2# |
1 | ||
| 55413-02620A0 |
ZRE212..X FROMAGE,TRIM0# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02310 |
MZEA12,ZRE212 |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-02700C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55422-02700C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55422-02700C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02780C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55432-02780C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55432-02780C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02540C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55433-02540C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55433-02540C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02310C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55434-02310C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55434-02310C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55434-02660C0 |
ZRE212..X ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK,TRIM0#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02370B0 |
ZRE212..D,L LT.GRAY,TRIM1# |
1 | ||
| 55470-02480C0 |
MZEA12,ZRE212..X,Y BLACK,TRIM2# |
1 | ||
| 55470-02370A0 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 55470-02480A0 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER,FROMAGE,TRIM0# |
1 | ||
| 55470-02480C0 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM2# |
1 | ||
| 55470-02480A0 |
ZRE212..X FROMAGE,TRIM0# |
1 | ||
| 55470-02370C0 |
ZRE212..D,L BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02130B0 |
ZRE212..L SILVER,TRIM0#,1#,2# |
1 | ||
| 55474-02130B0 |
ZRE212..X SILVER,TRIM0#,2# |
1 | ||
| 55474-02130B0 |
ZRE212..D SILVER,TRIM1#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02080C1 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 55475-02080C1 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55475-02080C1 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-06110 |
MZEA12,ZRE212 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02430C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55550-02430C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55550-02430C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MZEA12,ZRE212 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02250 |
MZEA12,ZRE212 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02280 |
ZRE212..(L,X)..USA VFM PACKAGE |
1 | ||
| 55607-02280 |
MZEA12,ZRE212..L,S,X,Y |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02820 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 55650-02820 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 55650-02800 |
ZRE212..D,L |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02490 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 55660-02490 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 55660-02470 |
ZRE212..D,L |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02780 |
ZRE212..D,L |
1 | ||
| 55670-02790 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 55670-02790 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02190C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 73900-02190C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 73900-02190C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90119-A0105 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

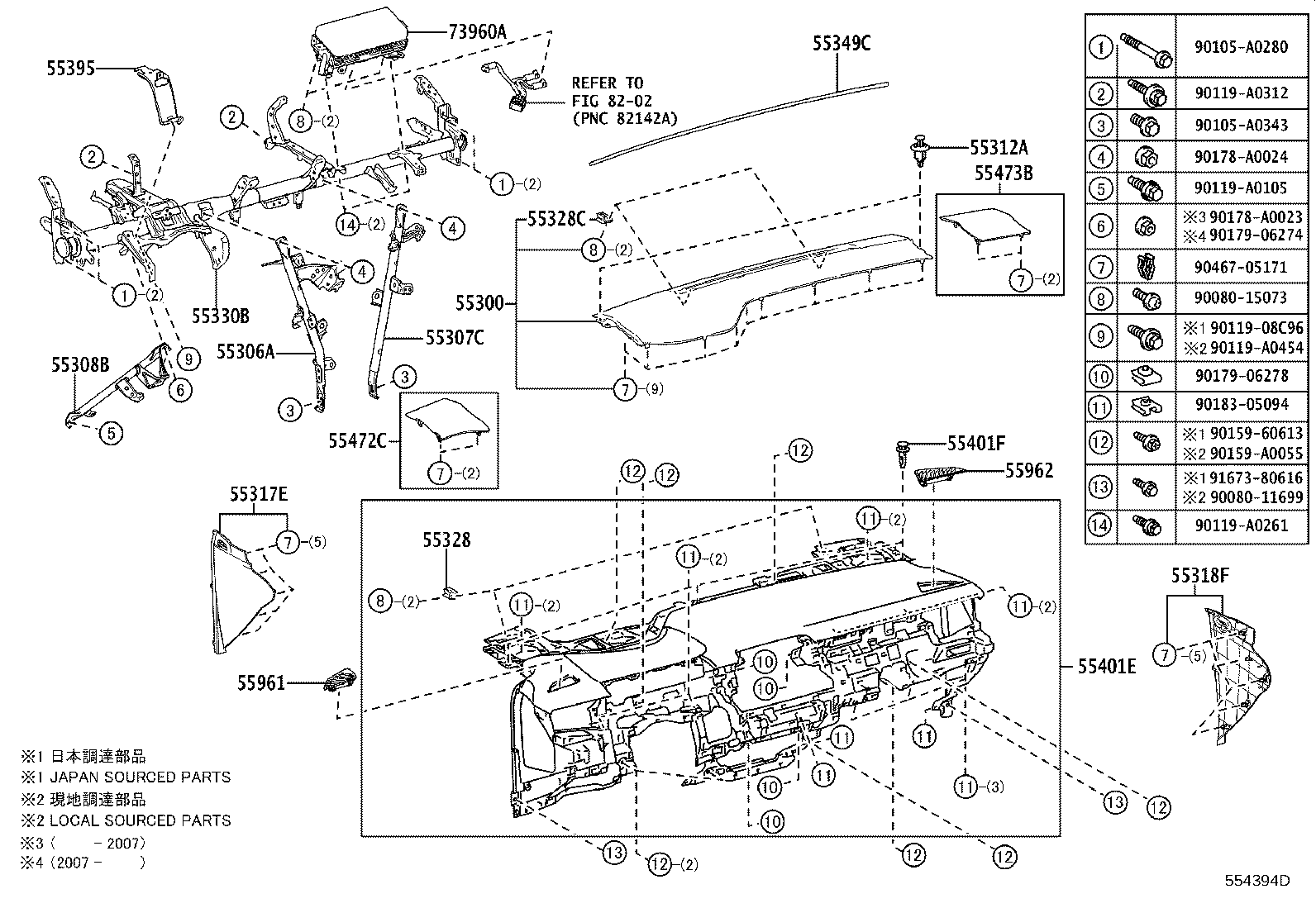

ILLUST NO. 1 OF 2(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02090C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55300-02090C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55300-02090C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02490 |
MZEA12,ZRE212 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02490 |
MZEA12,ZRE212 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02130 |
MZEA12,ZRE212 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07217 |
MZEA12,ZRE212 |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-02670C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55317-02670C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55317-02670C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-02300C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55318-02300C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55318-02300C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E060 |
MZEA12,ZRE212 |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-02880 |
MZEA12,ZRE212 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02D00 |
MZEA12,ZRE212..CVT |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02320 |
MZEA12,ZRE212 |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02030 |
MZEA12,ZRE212 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02060C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55400-02080C1 |
ZRE212..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK/SHELL,TRIM0#,2# |
1 | ||
| 55400-02080C1 |
ZRE212..X BLACK/SHELL,TRIM0#,2# |
1 | ||
| 55400-02060C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
MZEA12,ZRE212 |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02030C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55472-02050C0 |
ZRE212..L AUDIO-T0 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,1#,2# |
1 | ||
| 55472-02050C0 |
ZRE212..X AUDIO-T1 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55472-02030C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55472-02030C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55472-02050C0 |
ZRE212..X AUDIO-T2 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02020C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55473-02020C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55473-02040C0 |
ZRE212..L AUDIO-T0 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,1#,2# |
1 | ||
| 55473-02020C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55473-02040C0 |
ZRE212..X AUDIO-T2 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55473-02040C0 |
ZRE212..X AUDIO-T1 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02230C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 55961-02230C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55961-02230C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02190C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 55962-02190C0 |
MZEA12,ZRE212..D,S BLACK,TRIM1#,2# |
1 | ||
| 55962-02190C0 |
ZRE212..X BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02310 |
MZEA12,ZRE212 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90105-A0280 | ||||
| 90105-A0343 | ||||
| 90119-08C96 | ||||
| 90119-A0105 | ||||
| 90119-A0261 | ||||
| 90119-A0312 | ||||
| 90119-A0454 | ||||
| 90159-60613 | ||||
| 90159-A0055 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
