ZRE212L-DEXDPA (2019)

Toyota Corolla Sed (Nap)

Production Mar 2019 - Jul 2020
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )ZRE212

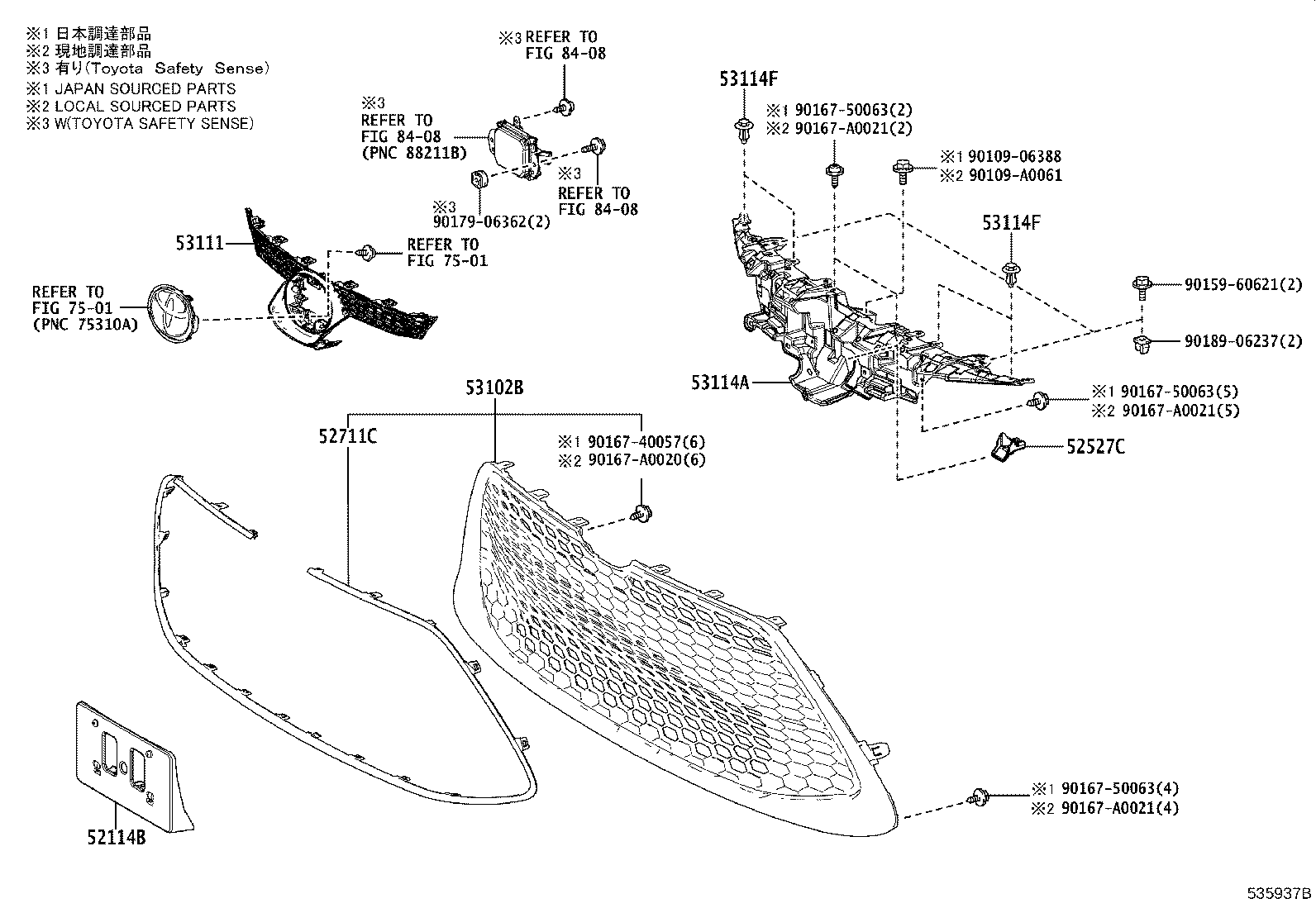

Click highlighted areas on diagram

diagram 52114B 52527C 52711C 53102B 53111 53114A 53114F 53114F 7501 7501 8408 8408 8408 9010906388 90109A0061 9015960621 9016740057 9016750063 9016750063 9016750063 90167A0020 90167A0021 90167A0021 90167A0021 9017906362 9018906237
Part # Description Qty Price
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-02200

ZRE212..USA

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

 1
52527C - RETAINER, FRONT BUMPER, LOWER NO.2
52527-02110

MZEA12,ZRE212

 1
52711C - MOULDING, FRONT BUMPER
52711-02300

ZRE212..D,L

 1
52711-02160

ZRE212..X

 1
53102B - GRILLE SUB-ASSY, RADIATOR, LOWER
53102-02280

ZRE212..D,L

 1
53102-02290

ZRE212..X

 1
53111 - GRILLE, RADIATOR
53111-02850

ZRE212

 1
53114A - GRILLE, RADIATOR, INNER
53114-02510

ZRE212

 1
53114F - CLIP, RADIATOR GRILLE
90467-05063C0

MZEA12,ZRE212

BLACK

 4
53114F - CLIP, RADIATOR GRILLE
90467-05063C0

MZEA12,ZRE212

BLACK

 4
Common parts
90109-06388
90109-A0061
90159-60621
90167-40057
90167-50063
90167-A0020
90167-A0021
90179-06362
90189-06237
Linked diagrams
7501
8408
