ZRE212L-DEXDPA (2019)
Toyota Corolla Sed (Nap)
Production
Mar 2019
-
Jul 2020
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

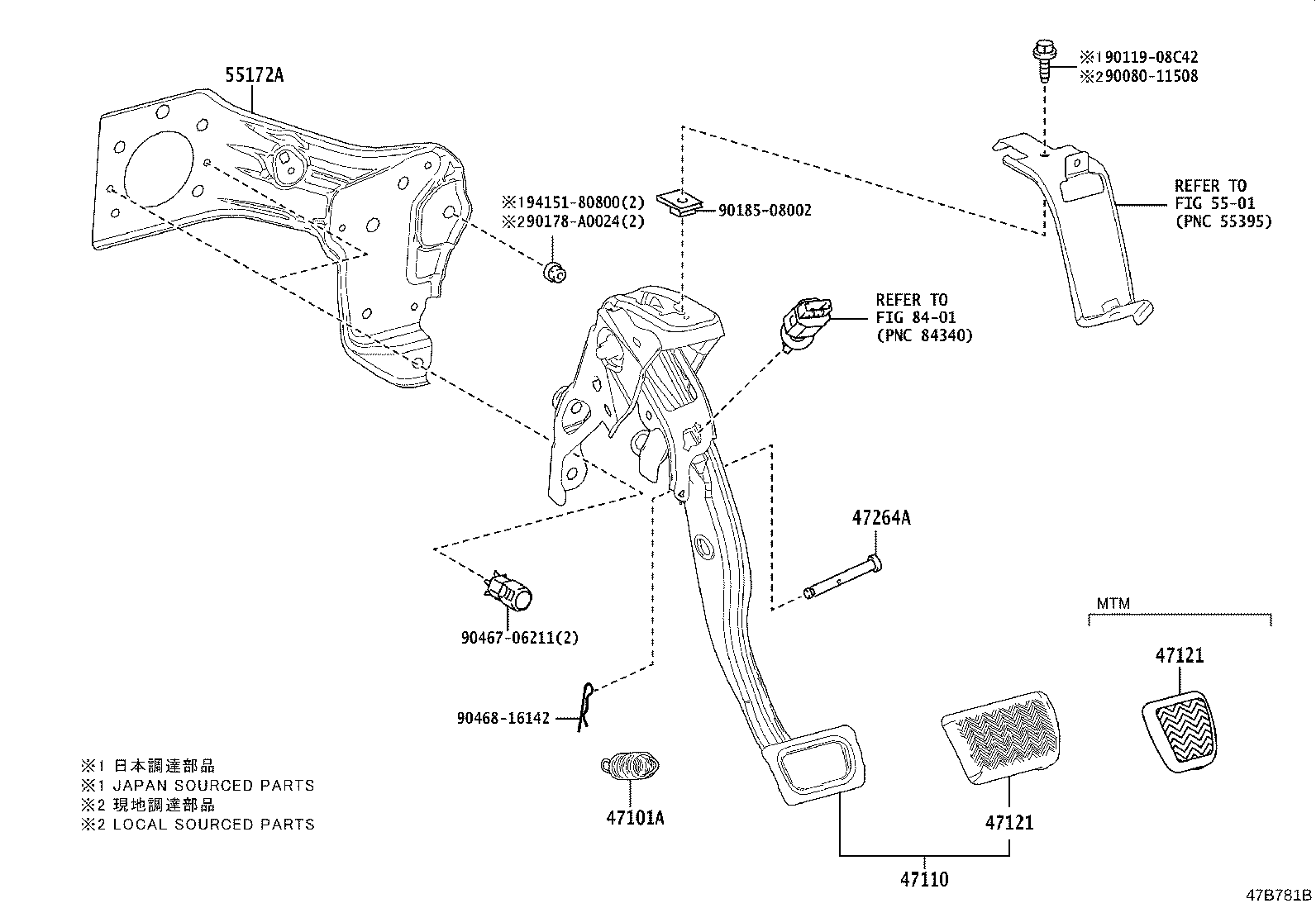

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15010 |
MZEA12,ZRE212 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-02750 |
MZEA12,ZRE212..CVT |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-47010 |
MZEA12,ZRE212..CVT |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-47010 |
MZEA12,ZRE212..CVT |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08309 |
MZEA12,ZRE212..CVT |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-02090 |
MZEA12,ZRE212 (L) |
1 | ||
| 55172-12160 |
MZEA12,ZRE212 (J) |
1 | ||
| 55172-02090 |
MZEA12,ZRE212 |
1 | ||
| Common parts | ||||
| 90080-11508 | ||||
| 90119-08C42 | ||||
| 90178-A0024 | ||||
| 90185-08002 | ||||
| 90467-06211 | ||||
| 90468-16142 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
