ZRE212L-DEXDPA (2019)
Toyota Corolla Sed (Nap)
Production
Mar 2019
-
Jul 2020
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

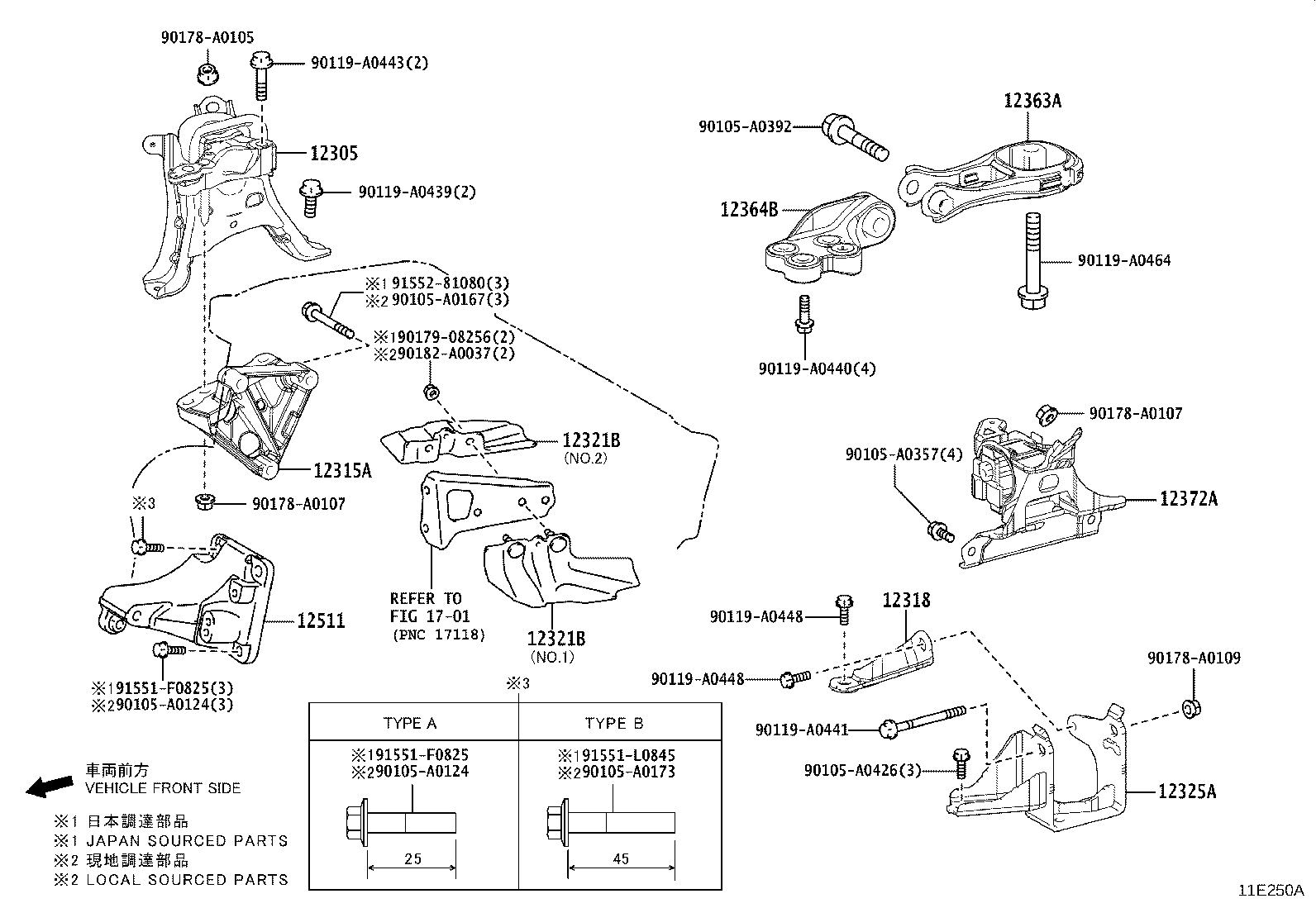

(1903- )2ZRFAE..CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T360 |
2ZRFAE..ZRE212 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37060 |
2ZRFAE..ZRE212 |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-0T040 |
2ZRFAE..ZRE212..CVT |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-02010 |
2ZRFAE..ZRE212 NO.1 |
1 | ||
| 43498-02020 |
2ZRFAE..ZRE212 NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-02010 |
2ZRFAE..ZRE212 NO.1 |
1 | ||
| 43498-02020 |
2ZRFAE..ZRE212 NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T520 |
2ZRFAE..ZRE212..CVT |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0T040 |
2ZRFAE..ZRE212..CVT |
1 | ||
| 12364B - ROD, ENGINE MOVING CONTROL, NO.2 | ||||
| 12364-0T050 |
2ZRFAE..ZRE212..CVT |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T600 |
2ZRFAE..ZRE212..CVT |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-0T030 |
2ZRFAE..ZRE212 (L) |
1 | ||
| 12501-37010 |
2ZRFAE..ZRE212 (J) |
1 | ||
| Common parts | ||||
| 90105-A0124 | ||||
| 90105-A0167 | ||||
| 90105-A0173 | ||||
| 90105-A0357 | ||||
| 90105-A0392 | ||||
| 90105-A0426 | ||||
| 90119-A0439 | ||||
| 90119-A0440 | ||||
| 90119-A0441 | ||||
| 90119-A0443 | ||||
| 90119-A0448 | ||||
| 90119-A0464 | ||||
| 90178-A0105 | ||||
| 90178-A0107 | ||||
| 90178-A0109 | ||||
| 90179-08256 | ||||
| 90182-A0037 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
