MZEA12L-DEXYBA (2019)

Toyota Corolla Sed (Nap)

Production Mar 2019 - Jul 2020
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )MZEA12..CVT

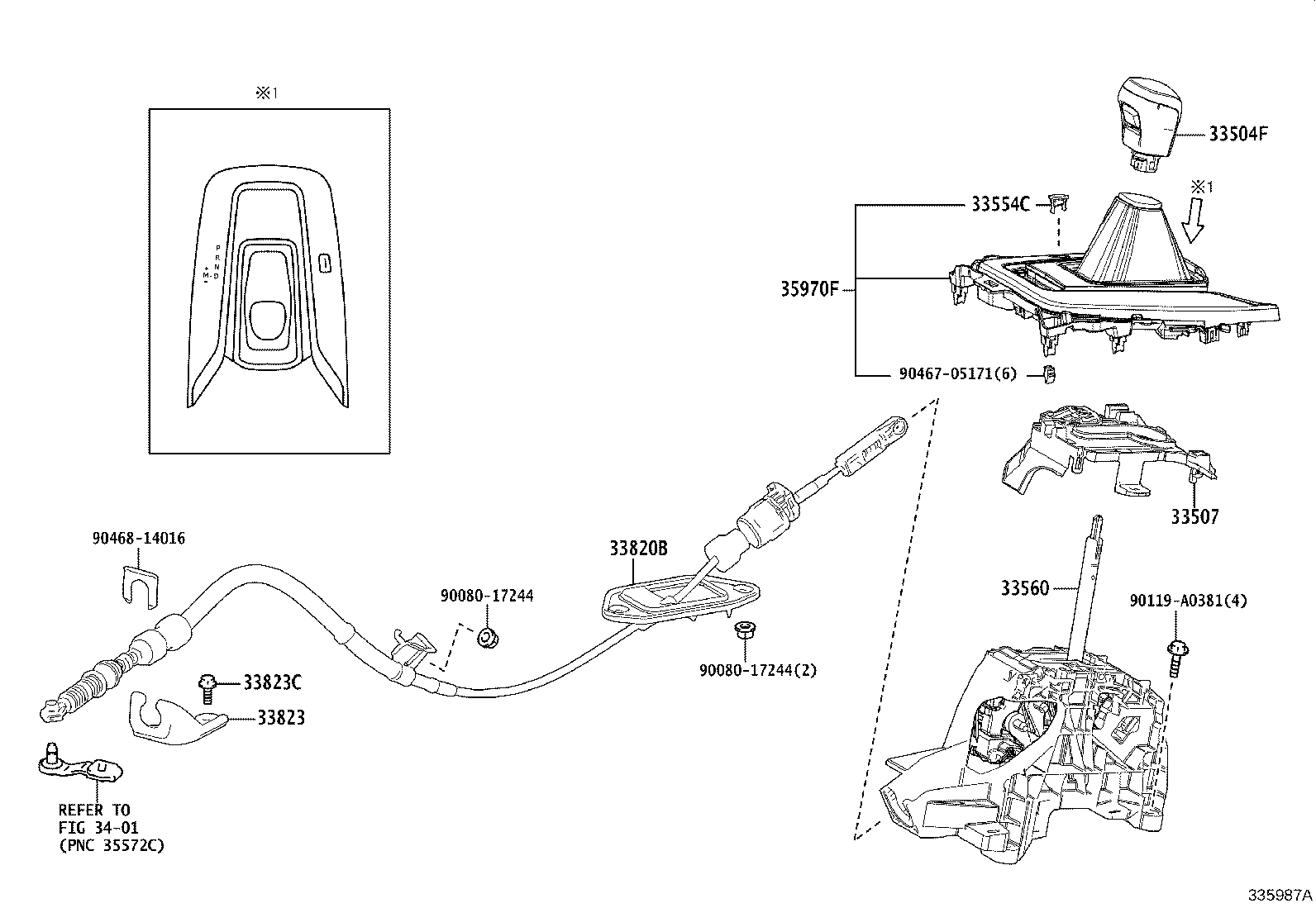

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33823 33823C 3401 35970F 9008017244 9008017244 90119A0381 9046705171 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02850C0

MZEA12..CVT

BLACK,TRIM2#

 1
33504-02700C0

MZEA12..CVT..S

BLACK,TRIM1#,2#

 1
33504-02700C0

MZEA12..Y

BLACK,TRIM2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02010

MZEA12,ZRE212..CVT

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02090

MZEA12,ZRE212..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0R060

MZEA12..CVT..S..USA

 1
33560-0R070

MZEA12..CVT..S..USA

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
33560-0R070

MZEA12..Y..USA;MZEA12..CVT..CND

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02A10

MZEA12..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02270

MZEA12..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-A0127

MZEA12,ZRE212..CVT

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02040C1

MZEA12..CVT

BLACK,TRIM2#

 1
Common parts
90080-17244
90119-A0381
90467-05171
90468-14016
Linked diagrams
3401
