MZEA12L-DEXYBA (2019)
Toyota Corolla Sed (Nap)
Production
Mar 2019
-
Jul 2020
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )M20AFKS

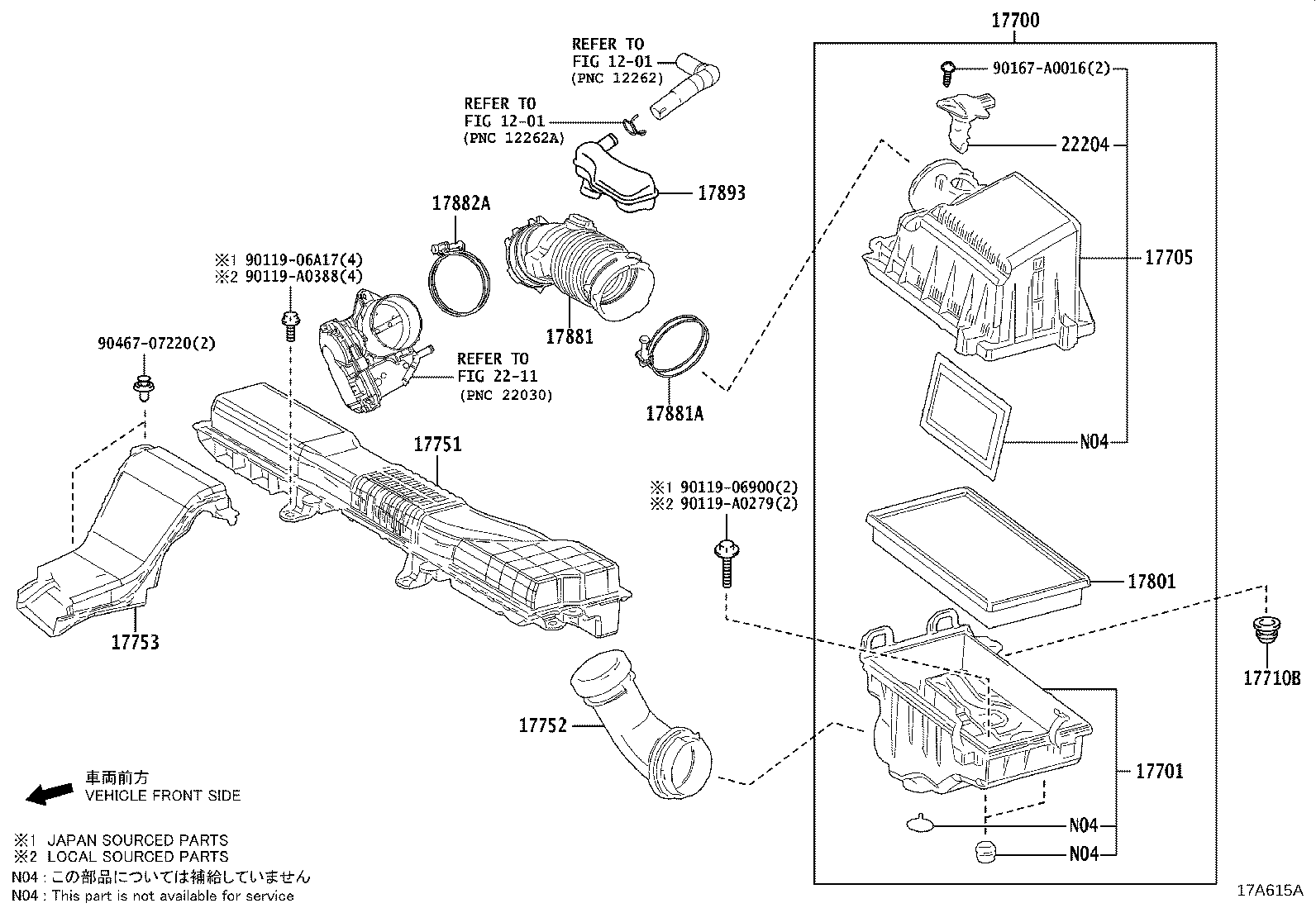

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
M20AFKS..MZEA12 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17753 - INLET, AIR CLEANER, NO.3 | ||||
| 17753-0T030 |
M20AFKS..MZEA12 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-77050 |
M20AFKS..MZEA12 (J) |
1 | ||
| 17801-F0020 |
M20AFKS..MZEA12 (L) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
M20AFKS..MZEA12 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
M20AFKS..MZEA12 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-F2020 |
M20AFKS..MZEA12 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
M20AFKS..MZEA12 |
1 | ||
| Common parts | ||||
| 90119-06900 | ||||
| 90119-06A17 | ||||
| 90119-A0279 | ||||
| 90119-A0388 | ||||
| 90167-A0016 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
