MZEA12L-DEFSBK (2020)
Toyota Corolla Sed (Nap)
Production
Jul 2020
-
Sep 9999
Engine
M20AFKS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2009- )MZEA12

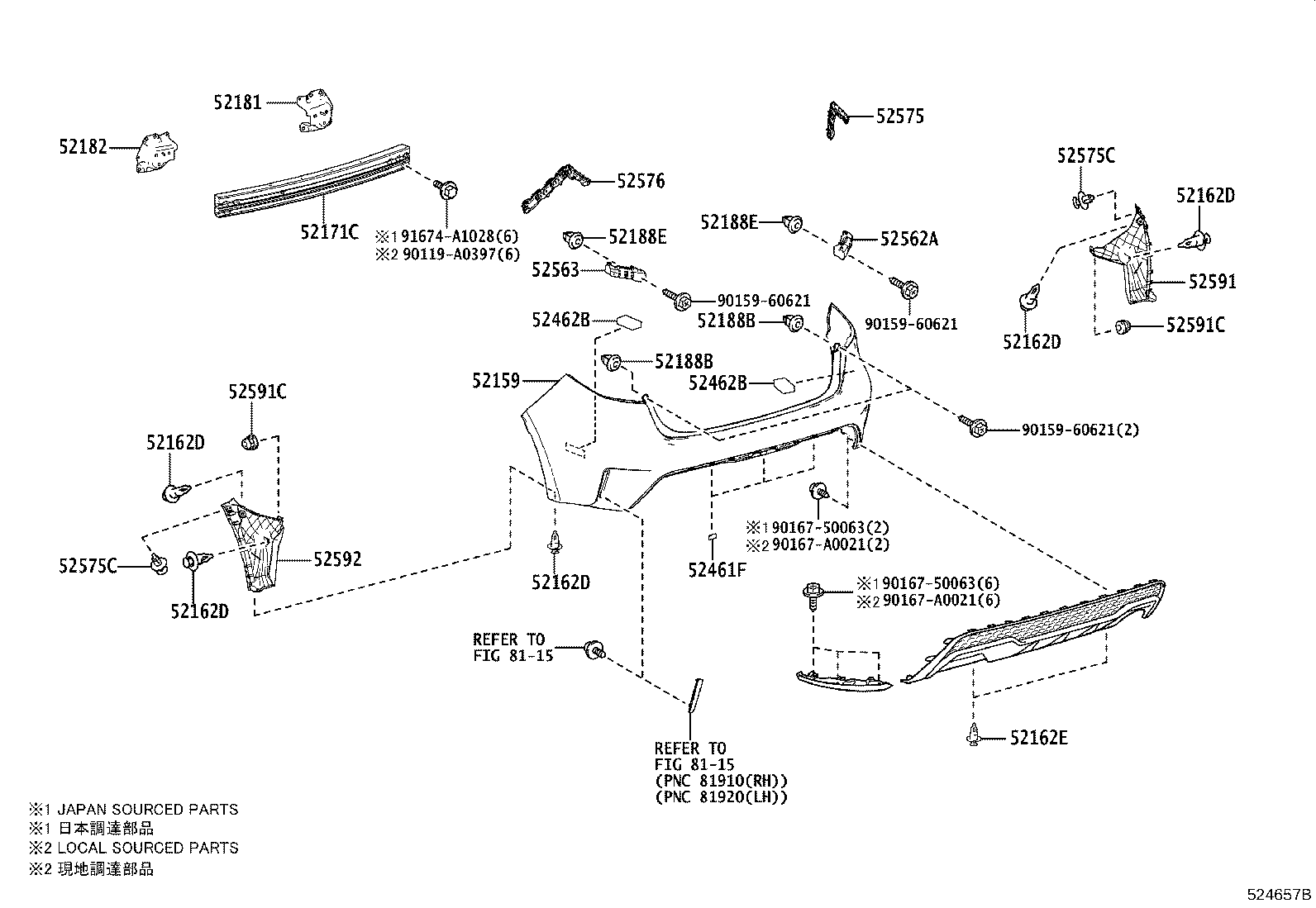

Click highlighted areas on diagram
APEX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0X927 |
MZEA12,ZRE212 PAINT REQ. |
1 | ||
| 52159-0Z970 |
MZEA12 PAINT REQ.,APEX |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MZEA12,ZRE212 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MZEA12,ZRE212 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MZEA12,ZRE212 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MZEA12,ZRE212 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MZEA12,ZRE212 |
6 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MZEA12,ZRE212 |
2 | ||
| 52171C - REINFORCEMENT, REAR BUMPER | ||||
| 52171-02260 |
MZEA12,ZRE212 |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-02260 |
MZEA12,ZRE212 |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-02120 |
MZEA12,ZRE212 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,ZRE212 |
2 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,ZRE212 |
2 | ||
| 52188E - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,ZRE212 |
2 | ||
| 52188E - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,ZRE212 |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-02070 |
MZEA12,ZRE212 |
3 | ||
| 52462B - PAD, REAR BUMPER | ||||
| 52462-02260 |
MZEA12,ZRE212 |
2 | ||
| 52462B - PAD, REAR BUMPER | ||||
| 52462-02260 |
MZEA12,ZRE212 |
2 | ||
| 52562A - RETAINER, REAR BUMPER FILLER, NO.2 | ||||
| 52562-02300 |
MZEA12,ZRE212 |
1 | ||
| 52563 - RETAINER, REAR BUMPER FILLER, NO.3 | ||||
| 52563-02170 |
MZEA12,ZRE212 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-02180 |
MZEA12,ZRE212 |
1 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEA12,ZRE212 |
2 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEA12,ZRE212 |
2 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-02180 |
MZEA12,ZRE212 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-02370 |
MZEA12,ZRE212 |
1 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-A0043 |
MZEA12,ZRE212 (L) |
2 | ||
| 90467-06206C0 |
MZEA12,ZRE212 BLACK,(J) |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-A0043 |
MZEA12,ZRE212 (L) |
2 | ||
| 90467-06206C0 |
MZEA12,ZRE212 BLACK,(J) |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-02340 |
MZEA12,ZRE212 |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90167-A0021 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 8115 | ||||
