MZEA12L-DEFSBK (2020)

Toyota Corolla Sed (Nap)

Production Jul 2020 - Sep 9999
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

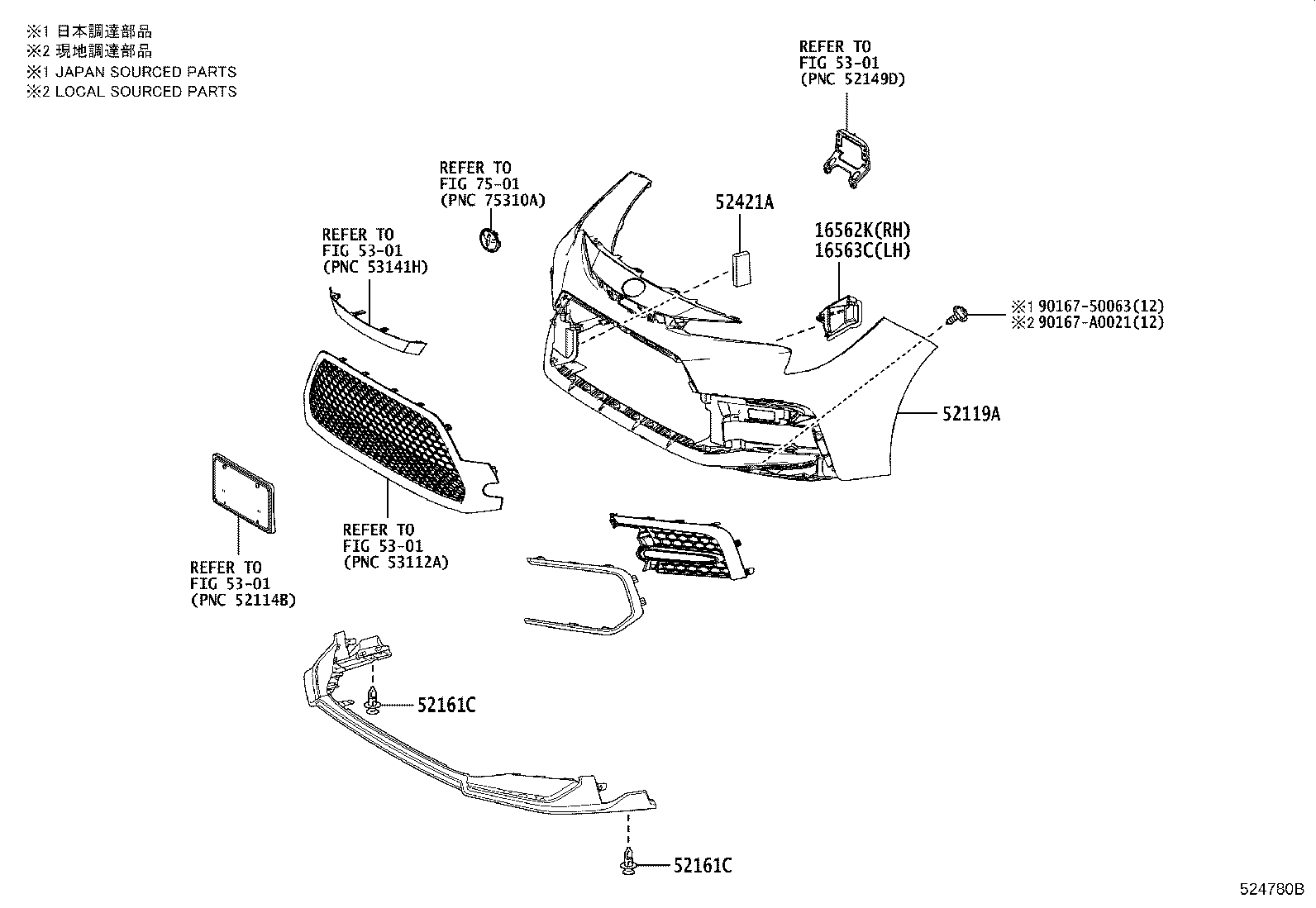

ILLUST NO. 2 OF 2(2009- )MZEA12

Click highlighted areas on diagram

APEX

diagram 16562K 16563C 52119A 52161C 52161C 52421A 5301 5301 5301 5301 7501 9016750063 90167A0021
Part # Description Qty Price
16562K - SEAL, RADIATOR TO SUPPORT, NO.2
16562-F2010

M20AFKS..MZEA12

 1
16563C - SEAL, RADIATOR TO SUPPORT, NO.3
16563-F2010

M20AFKS..MZEA12

 1
52119A - COVER, FRONT BUMPER
52119-F2922

MZEA12

PAINT REQ.

 1
52119-F2936

MZEA12

PAINT REQ.,APEX

 1
52161C - PIECE, FRONT BUMPER
52161-02020

MZEA12

APEX

 2
52161C - PIECE, FRONT BUMPER
52161-02020

MZEA12

APEX

 2
52421A - PAD, FRONT BUMPER
52421-02050

MZEA12,ZRE212

 2
Common parts
90167-50063
90167-A0021
Linked diagrams
5301
7501
