ZZE130L-AEPNKA (2002)

Toyota Corolla Sed (Jpp)

Production Apr 2002 - Jun 2007
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )JPP

Click highlighted areas on diagram

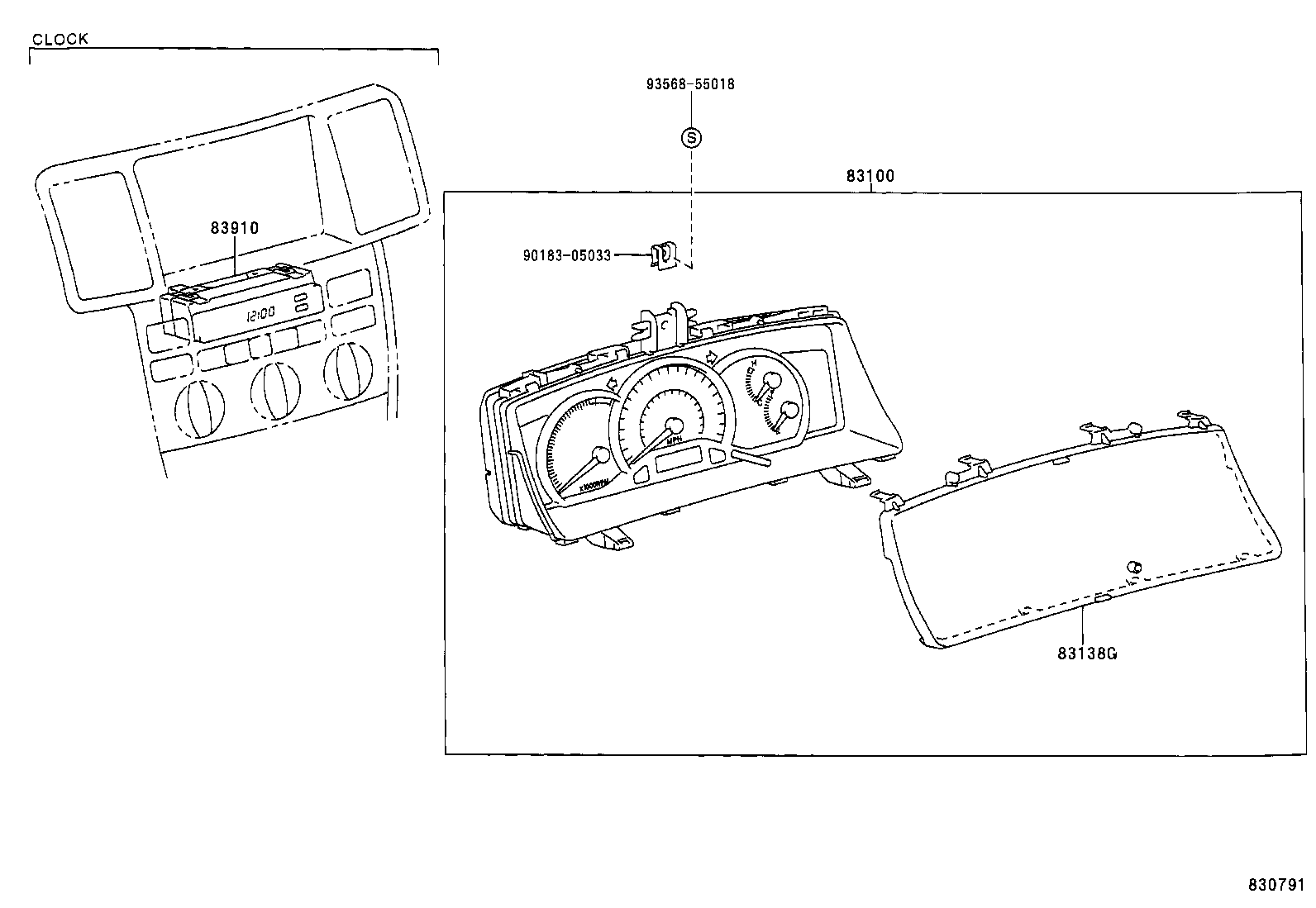

diagram 83100 83138G 83910 9018305033 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-02690

ZZE130..JPP..4FC..LE..USA

 1
83800-02D90

ZZE130..JPP..LE

 1
83138G - GLASS, COMBINATION METER
83852-02D90

ZZE130..JPP..LE

SMOKE TYPE

 1
83852-02680

ZZE130..JPP..4FC..USA

 1
83910 - CLOCK ASSY
83910-02070

ZZE130..JPP..4FC..USA

 1
83910-02070

ZZE130..JPP

 1
Common parts
90183-05033
93568-55018
