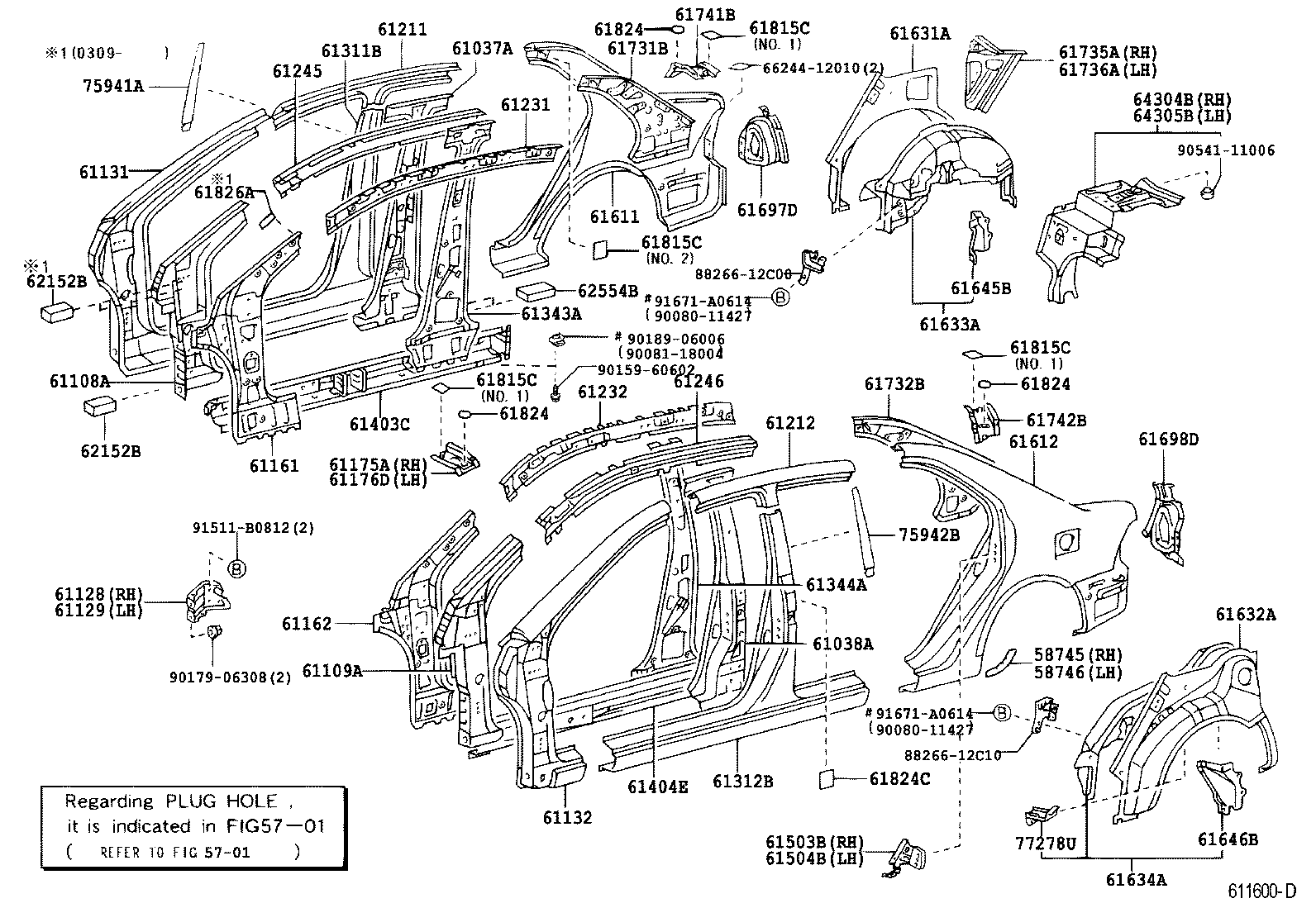

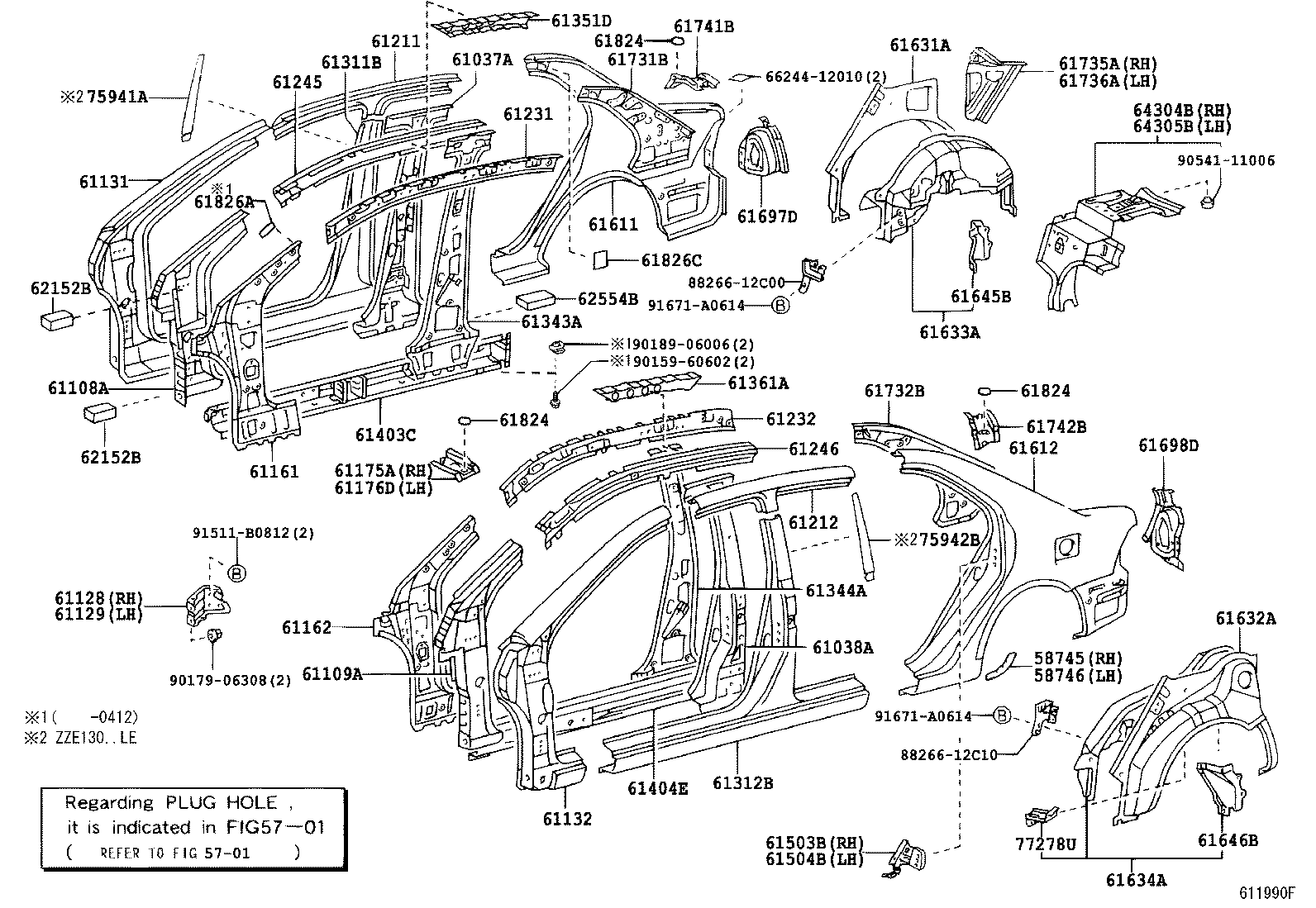

ZZE130L-AEPNKA (2002)
Toyota Corolla Sed (Jpp)
(0204-0405)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-12160 |
ZZE130..JPP |
1 | ||
| 58741-12160 |
ZZE130..JPP..4FC..USA |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-12140 |
ZZE130..JPP..4FC..USA |
1 | ||
| 58742-12140 |
ZZE130..JPP |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02903 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61037-02906 |
ZZE130..JPP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02903 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61038-02906 |
ZZE130..JPP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12230 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61108-12230 |
ZZE130..JPP |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12220 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61109-12220 |
ZZE130..JPP |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-12190 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61103-12200 |
ZZE130..JPP |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-12220 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61104-12230 |
ZZE130..JPP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12610 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61131-12610 |
ZZE130..JPP |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12620 |
ZZE130..JPP |
1 | ||
| 61132-12620 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-02091 |
ZZE130..JPP |
1 | ||
| 61023-02092 |
ZZE130..JPP |
1 | ||
| 61023-02092 |
ZZE130..JPP |
1 | ||
| 61023-02090 |
ZZE130..JPP |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-02090 |
ZZE130..JPP |
1 | ||
| 61024-02092 |
ZZE130..JPP |
1 | ||
| 61024-02091 |
ZZE130..JPP |
1 | ||
| 61024-02092 |
ZZE130..JPP |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-12200 |
ZZE130..JPP |
1 | ||
| 61175-12211 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61175-12200 |
ZZE130..JPP..4FC..USA PLANT NO. A31-A32 |
1 | ||
| 61175-12200 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61175-12211 |
ZZE130..JPP..4FC..USA PLANT NO. B11 |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-12200 |
ZZE130..JPP |
1 | ||
| 61176-12201 |
ZZE130..JPP |
1 | ||
| 61176-12201 |
ZZE130..JPP..4FC..USA PLANT NO. A31-A32 |
1 | ||
| 61176-12201 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61176-12211 |
ZZE130..JPP..4FC..USA PLANT NO. B11 |
1 | ||
| 61176-12211 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12460 |
ZZE130..JPP |
1 | ||
| 61211-12460 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12460 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61212-12460 |
ZZE130..JPP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-02100 |
ZZE130..JPP |
1 | ||
| 61231-02040 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-02100 |
ZZE130..JPP |
1 | ||
| 61232-02040 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-02040 |
ZZE130..JPP |
1 | ||
| 61245-12060 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61245-02060 |
ZZE130..JPP |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-02040 |
ZZE130..JPP |
1 | ||
| 61246-12060 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61246-02070 |
ZZE130..JPP |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12400 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61311-12400 |
ZZE130..JPP |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12440 |
ZZE130..JPP |
1 | ||
| 61312-12440 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-02050 |
ZZE130..JPP |
1 | ||
| 61343-02051 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61343-02051 |
ZZE130..JPP |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-02051 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61344-02050 |
ZZE130..JPP |
1 | ||
| 61344-02051 |
ZZE130..JPP |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-12020 |
ZZE130..JPP |
1 | ||
| 61403-12020 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-12020 |
ZZE130..JPP |
1 | ||
| 61404-12020 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-13030 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61503-13030 |
ZZE130..JPP |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-13030 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61504-13030 |
ZZE130..JPP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1H200 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61601-1H200 |
ZZE130..JPP |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1H030 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61602-1H030 |
ZZE130..JPP |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02070 |
ZZE130..JPP |
1 | ||
| 61631-02070 |
ZZE130..JPP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02070 |
ZZE130..JPP |
1 | ||
| 61632-02070 |
ZZE130..JPP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-1A905 |
ZZE130..JPP |
1 | ||
| 61607-1A905 |
ZZE130..JPP |
1 | ||
| 61607-1A906 |
ZZE130..JPP W(ABS) |
1 | ||
| 61607-1A906 |
ZZE130..JPP W(ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-1A910 |
ZZE130..JPP W(ABS) |
1 | ||
| 61608-1A909 |
ZZE130..JPP |
1 | ||
| 61608-1A910 |
ZZE130..JPP W(ABS) |
1 | ||
| 61608-1A909 |
ZZE130..JPP |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12150 |
ZZE130..JPP |
1 | ||
| 61645-12150 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12140 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61646-12140 |
ZZE130..JPP |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-12902 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61697-12902 |
ZZE130..JPP |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-12902 |
ZZE130..JPP |
1 | ||
| 61698-12902 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12770 |
ZZE130..JPP |
1 | ||
| 61731-02080 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12720 |
ZZE130..JPP |
1 | ||
| 61732-02080 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12380 |
ZZE130..JPP |
1 | ||
| 61735-12380 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12370 |
ZZE130..JPP |
1 | ||
| 61736-12370 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-12171 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61741-12172 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61741-12120 |
ZZE130..JPP |
1 | ||
| 61741-12120 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61741-12121 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61741-12121 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61741-12173 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-12131 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742-12133 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742-12132 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742-12090 |
ZZE130..JPP |
1 | ||
| 61742-12091 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61742-12091 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61742-12090 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..JPP..4FC..USA NO.1 |
4 | ||
| 61815-32020 |
ZZE130..JPP NO.2 |
2 | ||
| 61815-28010 |
ZZE130..JPP..4FC..USA NO.2 |
2 | ||
| 61815-02040 |
ZZE130..JPP |
2 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..JPP..4FC..USA NO.1 |
4 | ||
| 61815-32020 |
ZZE130..JPP NO.2 |
2 | ||
| 61815-28010 |
ZZE130..JPP..4FC..USA NO.2 |
2 | ||
| 61815-02040 |
ZZE130..JPP |
2 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..JPP..4FC..USA NO.1 |
4 | ||
| 61815-32020 |
ZZE130..JPP NO.2 |
2 | ||
| 61815-28010 |
ZZE130..JPP..4FC..USA NO.2 |
2 | ||
| 61815-02040 |
ZZE130..JPP |
2 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..JPP..4FC..USA NO.1 |
4 | ||
| 61815-32020 |
ZZE130..JPP NO.2 |
2 | ||
| 61815-28010 |
ZZE130..JPP..4FC..USA NO.2 |
2 | ||
| 61815-02040 |
ZZE130..JPP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-12040 |
ZZE130..JPP |
2 | ||
| 61824-12060 |
ZZE130..JPP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-12040 |
ZZE130..JPP |
2 | ||
| 61824-12060 |
ZZE130..JPP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-12040 |
ZZE130..JPP |
2 | ||
| 61824-12060 |
ZZE130..JPP |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-52040 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-50020 |
ZZE130..JPP |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
ZZE130..JPP |
2 | ||
| 61826-12020 |
ZZE130..JPP |
2 | ||
| 61826-52020 |
ZZE130..JPP..4FC..USA |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZZE130..JPP..4FC..USA |
6 | ||
| 62152-12060 |
ZZE130..JPP |
4 | ||
| 62152-12050 |
ZZE130..JPP |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZZE130..JPP..4FC..USA |
6 | ||
| 62152-12060 |
ZZE130..JPP |
4 | ||
| 62152-12050 |
ZZE130..JPP |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12170 |
ZZE130..JPP |
2 | ||
| 62554-12180 |
ZZE130..JPP..4FC..USA |
4 | ||
| 62554-12180 |
ZZE130..JPP |
2 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-02901 |
ZZE130..JPP |
1 | ||
| 64304-02901 |
ZZE130..JPP..4FC..USA |
1 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-02901 |
ZZE130..JPP |
1 | ||
| 64305-02901 |
ZZE130..JPP..4FC..USA |
1 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-12011 |
ZZE130..JPP..4FC..LE..USA |
1 | ||
| 75941-12010 |
ZZE130..JPP..LE |
1 | ||
| 75941-12011 |
ZZE130..JPP..LE |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-12011 |
ZZE130..JPP..4FC..LE..USA |
1 | ||
| 75942-12010 |
ZZE130..JPP..LE |
1 | ||
| 75942-12011 |
ZZE130..JPP..LE |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-32050 |
ZZE130..JPP |
1 | ||
| 77278-32050 |
ZZE130..JPP..4FC..USA |
1 | ||
| Common parts | ||||
| 66244-12010 | ||||
| 88266-12C00 | ||||
| 88266-12C10 | ||||
| 90080-11427 | ||||
| 90081-18004 | ||||
| 90159-60602 | ||||
| 90179-06308 | ||||
| 90189-06006 | ||||
| 90541-11006 | ||||
| 91511-B0812 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(0405- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-12160 |
ZZE130..JPP |
1 | ||
| 58741-12160 |
ZZE130..JPP..4FC..USA |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-12140 |
ZZE130..JPP..4FC..USA |
1 | ||
| 58742-12140 |
ZZE130..JPP |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02903 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61037-02906 |
ZZE130..JPP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02903 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61038-02906 |
ZZE130..JPP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12230 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61108-12230 |
ZZE130..JPP |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12220 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61109-12220 |
ZZE130..JPP |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-12190 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61103-12200 |
ZZE130..JPP |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-12220 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61104-12230 |
ZZE130..JPP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12610 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61131-12610 |
ZZE130..JPP |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12620 |
ZZE130..JPP |
1 | ||
| 61132-12620 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-02091 |
ZZE130..JPP |
1 | ||
| 61023-02092 |
ZZE130..JPP |
1 | ||
| 61023-02092 |
ZZE130..JPP |
1 | ||
| 61023-02090 |
ZZE130..JPP |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-02090 |
ZZE130..JPP |
1 | ||
| 61024-02092 |
ZZE130..JPP |
1 | ||
| 61024-02091 |
ZZE130..JPP |
1 | ||
| 61024-02092 |
ZZE130..JPP |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-12200 |
ZZE130..JPP |
1 | ||
| 61175-12211 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61175-12200 |
ZZE130..JPP..4FC..USA PLANT NO. A31-A32 |
1 | ||
| 61175-12200 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61175-12211 |
ZZE130..JPP..4FC..USA PLANT NO. B11 |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-12200 |
ZZE130..JPP |
1 | ||
| 61176-12201 |
ZZE130..JPP |
1 | ||
| 61176-12201 |
ZZE130..JPP..4FC..USA PLANT NO. A31-A32 |
1 | ||
| 61176-12201 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61176-12211 |
ZZE130..JPP..4FC..USA PLANT NO. B11 |
1 | ||
| 61176-12211 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12460 |
ZZE130..JPP |
1 | ||
| 61211-12460 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12460 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61212-12460 |
ZZE130..JPP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-02100 |
ZZE130..JPP |
1 | ||
| 61231-02040 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-02100 |
ZZE130..JPP |
1 | ||
| 61232-02040 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-02040 |
ZZE130..JPP |
1 | ||
| 61245-12060 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61245-02060 |
ZZE130..JPP |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-02040 |
ZZE130..JPP |
1 | ||
| 61246-12060 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61246-02070 |
ZZE130..JPP |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12400 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61311-12400 |
ZZE130..JPP |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12440 |
ZZE130..JPP |
1 | ||
| 61312-12440 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-02051 |
ZZE130..JPP |
1 | ||
| 61343-02050 |
ZZE130..JPP |
1 | ||
| 61343-02051 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-02051 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61344-02050 |
ZZE130..JPP |
1 | ||
| 61344-02051 |
ZZE130..JPP |
1 | ||
| 61351D - RAIL, NO.1 CENTER OUTER, RH | ||||
| 61351-02010 |
ZZE130..JPP |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-02010 |
ZZE130..JPP |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-12020 |
ZZE130..JPP |
1 | ||
| 61403-12020 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-12020 |
ZZE130..JPP |
1 | ||
| 61404-12020 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-13030 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61503-13030 |
ZZE130..JPP |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-13030 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61504-13030 |
ZZE130..JPP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1H200 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61601-1H200 |
ZZE130..JPP |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1H030 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61602-1H030 |
ZZE130..JPP |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02070 |
ZZE130..JPP |
1 | ||
| 61631-02070 |
ZZE130..JPP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02070 |
ZZE130..JPP |
1 | ||
| 61632-02070 |
ZZE130..JPP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-1A905 |
ZZE130..JPP |
1 | ||
| 61607-1A905 |
ZZE130..JPP |
1 | ||
| 61607-1A906 |
ZZE130..JPP W(ABS) |
1 | ||
| 61607-1A906 |
ZZE130..JPP W(ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-1A910 |
ZZE130..JPP W(ABS) |
1 | ||
| 61608-1A909 |
ZZE130..JPP |
1 | ||
| 61608-1A910 |
ZZE130..JPP W(ABS) |
1 | ||
| 61608-1A909 |
ZZE130..JPP |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12150 |
ZZE130..JPP |
1 | ||
| 61645-12150 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12140 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61646-12140 |
ZZE130..JPP |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-12902 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61697-12902 |
ZZE130..JPP |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-12902 |
ZZE130..JPP |
1 | ||
| 61698-12902 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12770 |
ZZE130..JPP |
1 | ||
| 61731-02080 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12720 |
ZZE130..JPP |
1 | ||
| 61732-02080 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12380 |
ZZE130..JPP |
1 | ||
| 61735-12380 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12370 |
ZZE130..JPP |
1 | ||
| 61736-12370 |
ZZE130..JPP..4FC..USA |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-12171 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61741-12172 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61741-12120 |
ZZE130..JPP |
1 | ||
| 61741-12120 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61741-12121 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61741-12121 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61741-12173 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-12131 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742-12133 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742-12132 |
ZZE130..JPP PLANT NO. B11 |
1 | ||
| 61742-12090 |
ZZE130..JPP |
1 | ||
| 61742-12091 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61742-12091 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61742-12090 |
ZZE130..JPP PLANT NO. A31-A32 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-12040 |
ZZE130..JPP |
2 | ||
| 61824-12060 |
ZZE130..JPP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-12040 |
ZZE130..JPP |
2 | ||
| 61824-12060 |
ZZE130..JPP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61824-12040 |
ZZE130..JPP |
2 | ||
| 61824-12060 |
ZZE130..JPP |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
ZZE130..JPP |
2 | ||
| 61826-12020 |
ZZE130..JPP |
2 | ||
| 61826-52020 |
ZZE130..JPP..4FC..USA |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52020 |
ZZE130..JPP |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZZE130..JPP..4FC..USA |
6 | ||
| 62152-12060 |
ZZE130..JPP |
4 | ||
| 62152-12050 |
ZZE130..JPP |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZZE130..JPP..4FC..USA |
6 | ||
| 62152-12060 |
ZZE130..JPP |
4 | ||
| 62152-12050 |
ZZE130..JPP |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12170 |
ZZE130..JPP |
2 | ||
| 62554-12180 |
ZZE130..JPP..4FC..USA |
4 | ||
| 62554-12180 |
ZZE130..JPP |
2 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-02901 |
ZZE130..JPP |
1 | ||
| 64304-02901 |
ZZE130..JPP..4FC..USA |
1 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-02901 |
ZZE130..JPP |
1 | ||
| 64305-02901 |
ZZE130..JPP..4FC..USA |
1 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-12011 |
ZZE130..JPP..4FC..LE..USA |
1 | ||
| 75941-12010 |
ZZE130..JPP..LE |
1 | ||
| 75941-12011 |
ZZE130..JPP..LE |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-12011 |
ZZE130..JPP..4FC..LE..USA |
1 | ||
| 75942-12010 |
ZZE130..JPP..LE |
1 | ||
| 75942-12011 |
ZZE130..JPP..LE |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-32050 |
ZZE130..JPP |
1 | ||
| 77278-32050 |
ZZE130..JPP..4FC..USA |
1 | ||
| Common parts | ||||
| 66244-12010 | ||||
| 88266-12C00 | ||||
| 88266-12C10 | ||||
| 90159-60602 | ||||
| 90179-06308 | ||||
| 90189-06006 | ||||
| 90541-11006 | ||||
| 91511-B0812 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
