ZZE130L-AEPNKA (2002)
Toyota Corolla Sed (Jpp)

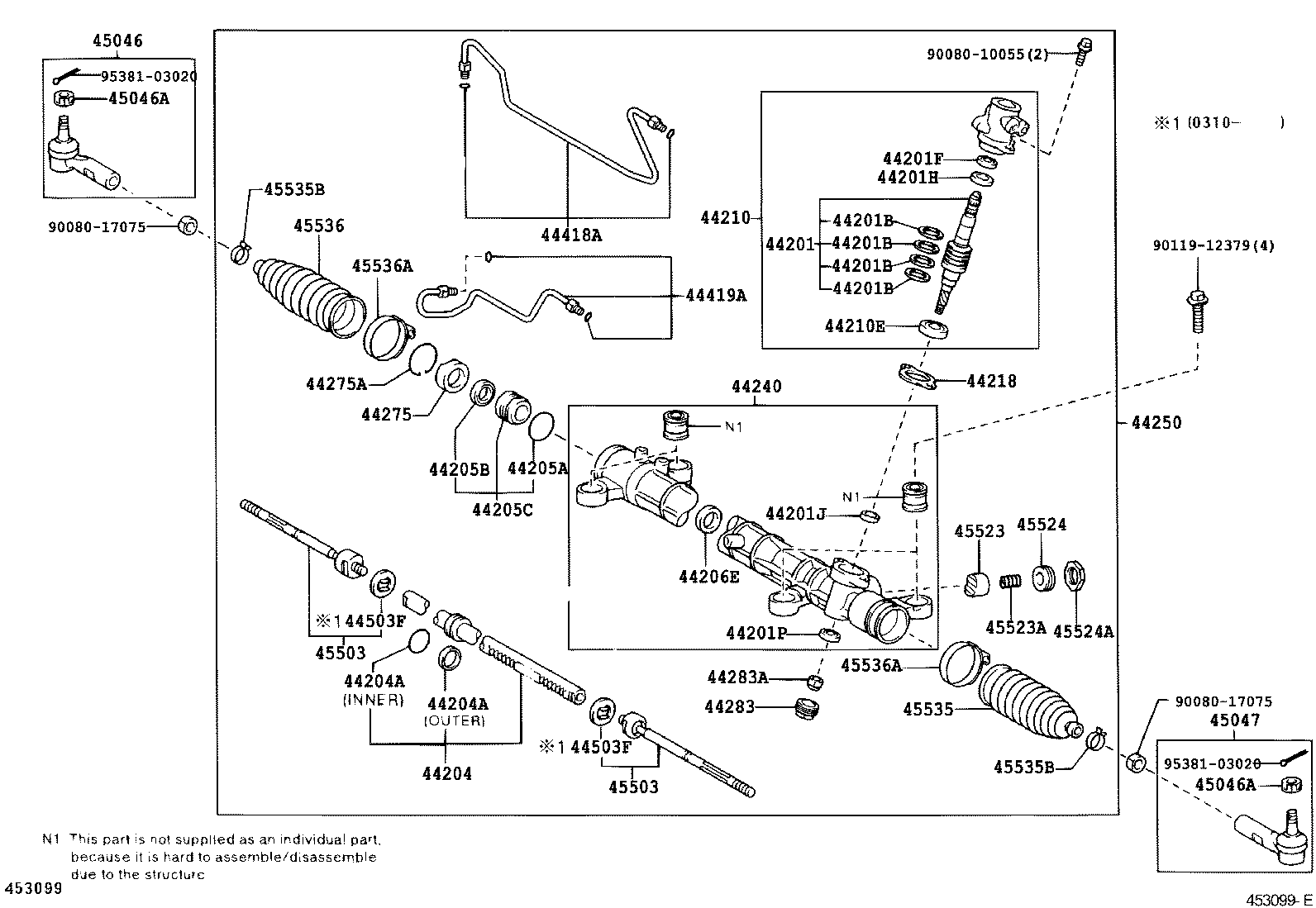

ILLUST NO. 1 OF 2(0204-0405)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-02100 |
ZZE130..JPP |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
ZZE130..JPP |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
ZZE130..JPP |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
ZZE130..JPP |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
ZZE130..JPP |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 44214-06010 |
ZZE130..JPP |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90080-36047 |
ZZE130..JPP |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90080-36046 |
ZZE130..JPP |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12009 |
ZZE130..JPP |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-02060 |
ZZE130..JPP |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90080-56080 |
ZZE130..JPP OUTER |
1 | ||
| 90080-30098 |
ZZE130..JPP INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90080-56080 |
ZZE130..JPP OUTER |
1 | ||
| 90080-30098 |
ZZE130..JPP INNER |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90082-67001 |
ZZE130..JPP |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90080-31081 |
ZZE130..JPP |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-02030 |
ZZE130..JPP |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90080-31081 |
ZZE130..JPP |
1 | ||
| 90080-31081 |
ZZE130..JPP |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-02040 |
ZZE130..JPP |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 44215-06010 |
ZZE130..JPP |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-06010 |
ZZE130..JPP |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-02050 |
ZZE130..JPP |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12670 |
ZZE130..JPP (J) |
1 | ||
| 44250-02151 |
ZZE130..JPP (L) |
1 | ||
| 44250-02151 |
ZZE130..JPP |
1 | ||
| 44250-02150 |
ZZE130..JPP |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-02040 |
ZZE130..JPP |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90080-52115 |
ZZE130..JPP |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-02010 |
ZZE130..JPP |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90080-17078 |
ZZE130..JPP |
1 | ||
| 90080-17078 |
ZZE130..JPP |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-02020 |
ZZE130..JPP |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-02020 |
ZZE130..JPP |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09200 |
ZZE130..JPP |
1 | ||
| 45046-09200 |
ZZE130..JPP |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09080 |
ZZE130..JPP |
1 | ||
| 45047-09080 |
ZZE130..JPP |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-02030 |
ZZE130..JPP |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-36005 |
ZZE130..JPP (J) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-02010 |
ZZE130..JPP |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90080-17089 |
ZZE130..JPP |
1 | ||
| 90080-17089 |
ZZE130..JPP |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| Common parts | ||||
| 90080-10055 | ||||
| 90080-17075 | ||||
| 90119-12379 | ||||
| 95381-03020 | ||||

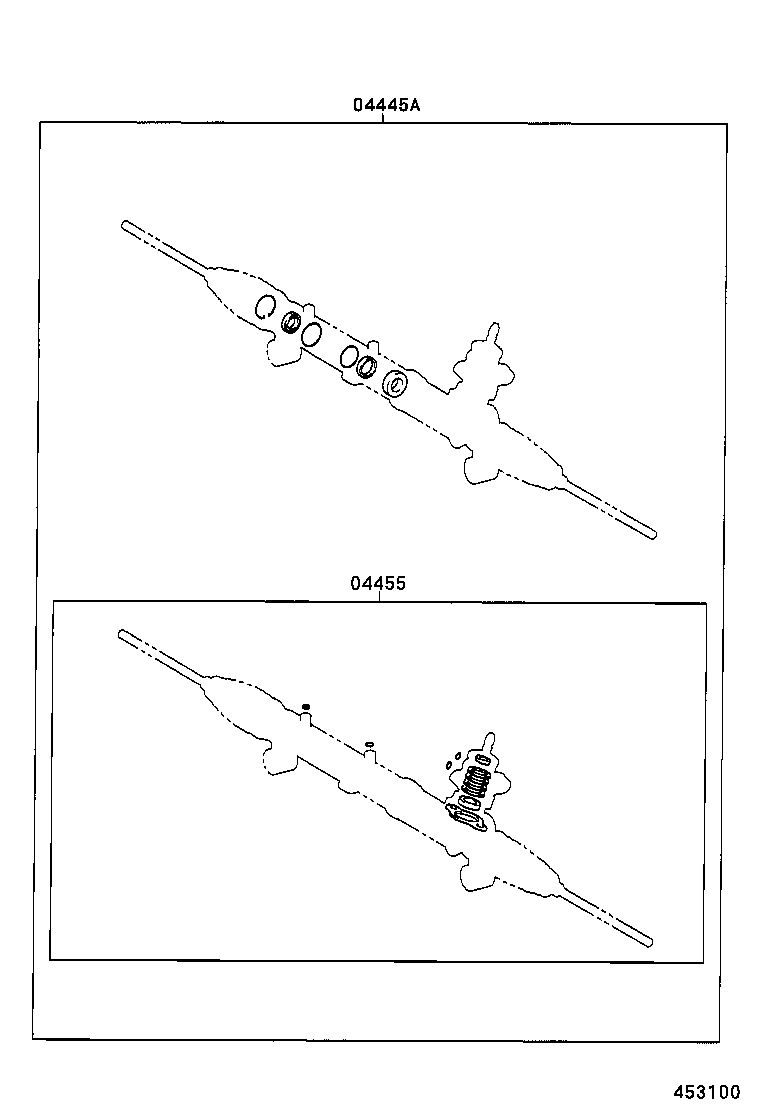

ILLUST NO. 2 OF 2(0204- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-01020 |
ZZE130..JPP |
1 | ||
| 04445-02060 |
ZZE130..JPP |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-02030 |
ZZE130..JPP |
1 | ||
| 04455-06040 |
ZZE130..JPP |
1 | ||

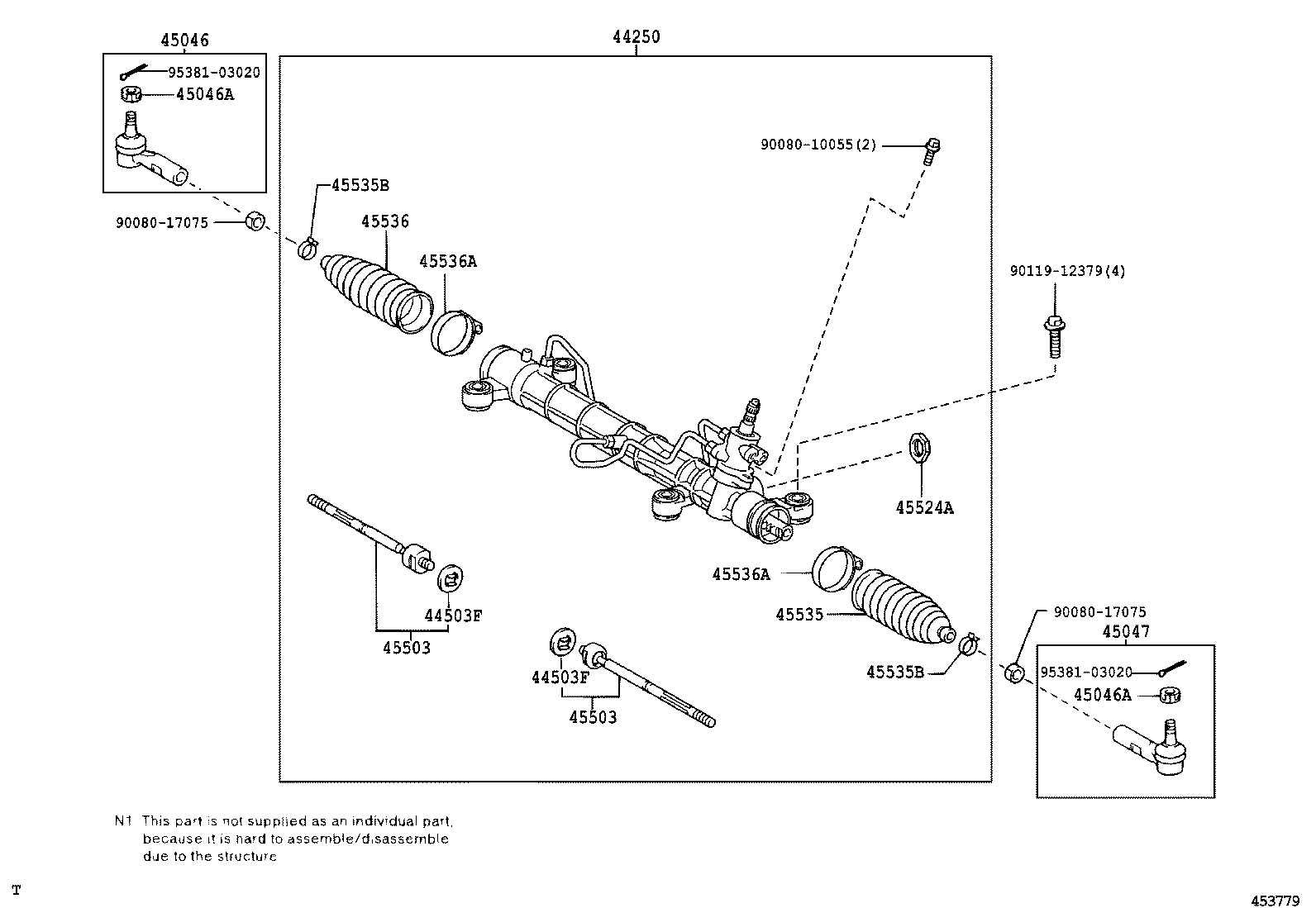

ILLUST NO. 1 OF 2(0405- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12670 |
ZZE130..JPP (J) |
1 | ||
| 44250-02151 |
ZZE130..JPP (L) |
1 | ||
| 44250-02151 |
ZZE130..JPP |
1 | ||
| 44250-02150 |
ZZE130..JPP |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 90214-14009 |
ZZE130..JPP |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09200 |
ZZE130..JPP |
1 | ||
| 45046-09200 |
ZZE130..JPP |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 90171-12028 |
ZZE130..JPP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09080 |
ZZE130..JPP |
1 | ||
| 45047-09080 |
ZZE130..JPP |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45503-09400 |
ZZE130..JPP |
2 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90080-17089 |
ZZE130..JPP |
1 | ||
| 90080-17089 |
ZZE130..JPP |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 90080-46174 |
ZZE130..JPP |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45535-02020 |
ZZE130..JPP |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| 90080-46271 |
ZZE130..JPP |
2 | ||
| Common parts | ||||
| 90080-10055 | ||||
| 90080-17075 | ||||
| 90119-12379 | ||||
| 95381-03020 | ||||
