ZZE130L-AEPNKA (2002)
Toyota Corolla Sed (Jpp)
Production
Apr 2002
-
Jun 2007
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0204- )JPP

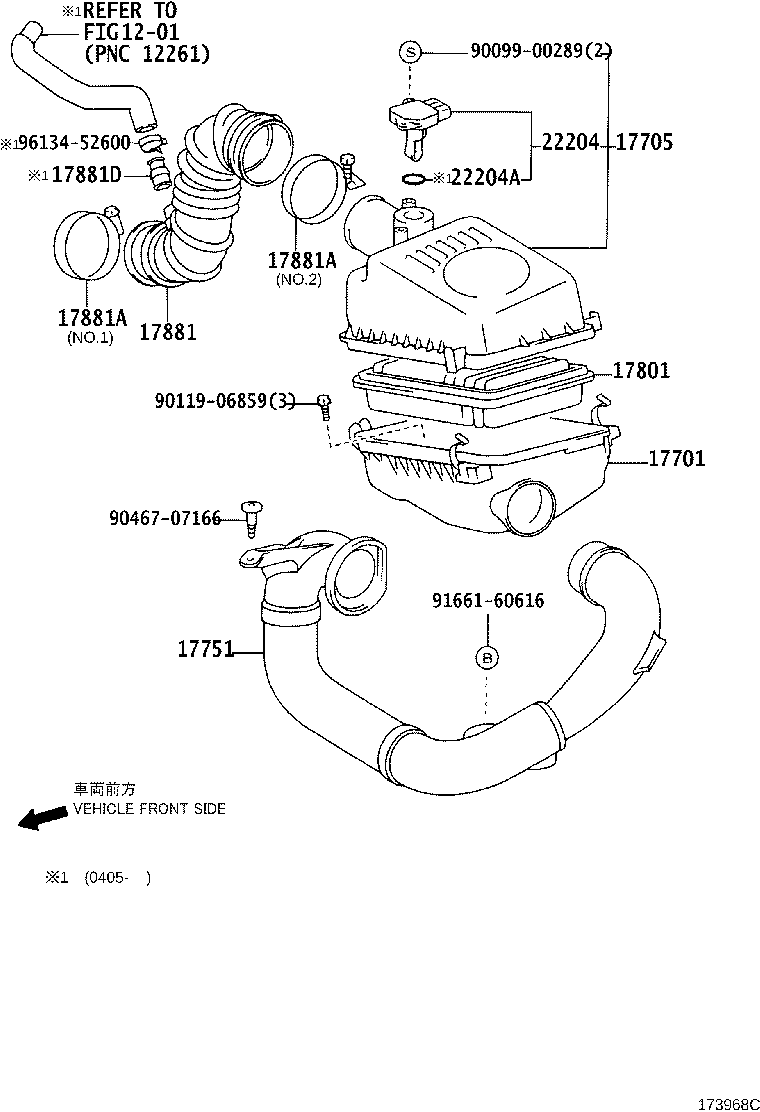

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0D050 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17701-22150 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-22180 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17705-0D050 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-21060 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17751-21060 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-22020 |
1ZZFE..ZZE130..JPP (J) |
1 | ||
| 17801-0D020 |
1ZZFE..ZZE130..JPP (L) |
1 | ||
| 17801-22020 |
1ZZFE..ZZE130..JPP (J) |
1 | ||
| 17801-0D020 |
1ZZFE..ZZE130..JPP (L) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-22080 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17881-22120 |
1ZZFE..ZZE130..JPP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1ZZFE..ZZE130..JPP NO.1 |
1 | ||
| 96111-10800 |
1ZZFE..ZZE130..JPP |
2 | ||
| 96111-10800 |
1ZZFE..ZZE130..JPP NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1ZZFE..ZZE130..JPP NO.1 |
1 | ||
| 96111-10800 |
1ZZFE..ZZE130..JPP |
2 | ||
| 96111-10800 |
1ZZFE..ZZE130..JPP NO.2 |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 90406-28001 |
1ZZFE..ZZE130..JPP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-22010 |
1ZZFE..ZZE130..JPP |
1 | ||
| 22204-0D030 |
1ZZFE..ZZE130..JPP |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1ZZFE..ZZE130..JPP |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90467-07166 | ||||
| 91661-60616 | ||||
| 96134-52600 | ||||
