ZZE130L-AEMDKA (2003)
Toyota Corolla Sed (Jpp)

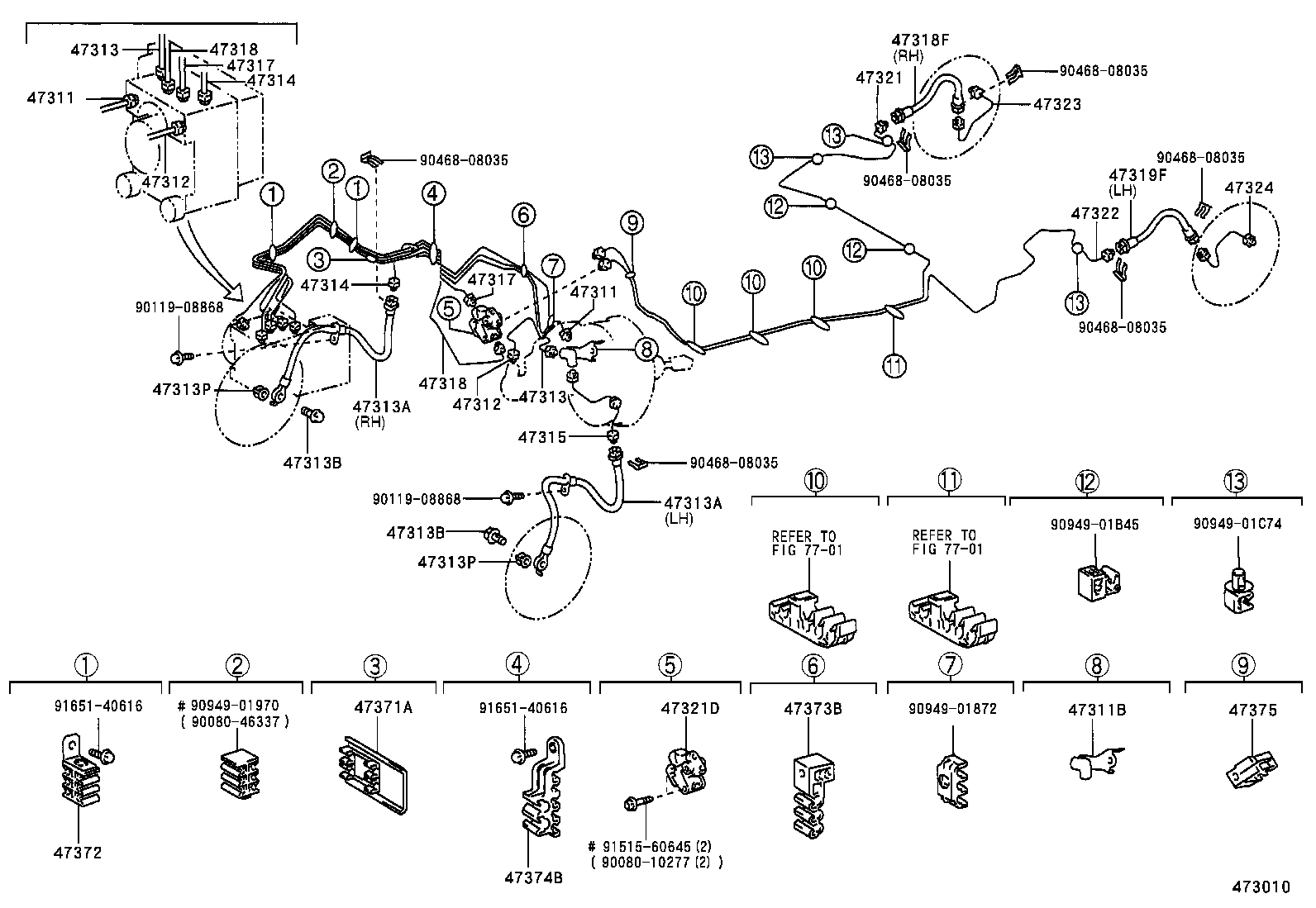

ILLUST NO. 1 OF 2(0204-0405)JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12890 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47311-12880 |
ZZE130..JPP..5F;ZZE130..JPP..CND W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12890 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47311-12880 |
ZZE130..JPP..5F;ZZE130..JPP..CND W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12051 |
ZZE130..JPP W(ABS) |
1 | ||
| 90904-13067 |
ZZE130..JPP |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12470 |
ZZE130..JPP..5F;ZZE130..JPP..CND W(ABS) |
1 | ||
| 47312-12480 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12470 |
ZZE130..JPP..5F;ZZE130..JPP..CND W(ABS) |
1 | ||
| 47312-12480 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12650 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12650 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94137 |
ZZE130..JPP LH |
1 | ||
| 90080-94136 |
ZZE130..JPP RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94137 |
ZZE130..JPP LH |
1 | ||
| 90080-94136 |
ZZE130..JPP RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12480 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47314-12530 |
ZZE130..JPP..5F;ZZE130..JPP..CND W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12480 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47314-12530 |
ZZE130..JPP..5F;ZZE130..JPP..CND W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12600 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12290 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12290 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12430 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12430 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94139 |
ZZE130..JPP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94139 |
ZZE130..JPP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12270 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12440 |
ZZE130..JPP |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-63010 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-63010 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52010 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-52010 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
ZZE130..JPP |
1 | ||
| Common parts | ||||
| 90080-10277 | ||||
| 90080-46337 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90949-01872 | ||||
| 90949-01970 | ||||
| 90949-01B45 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

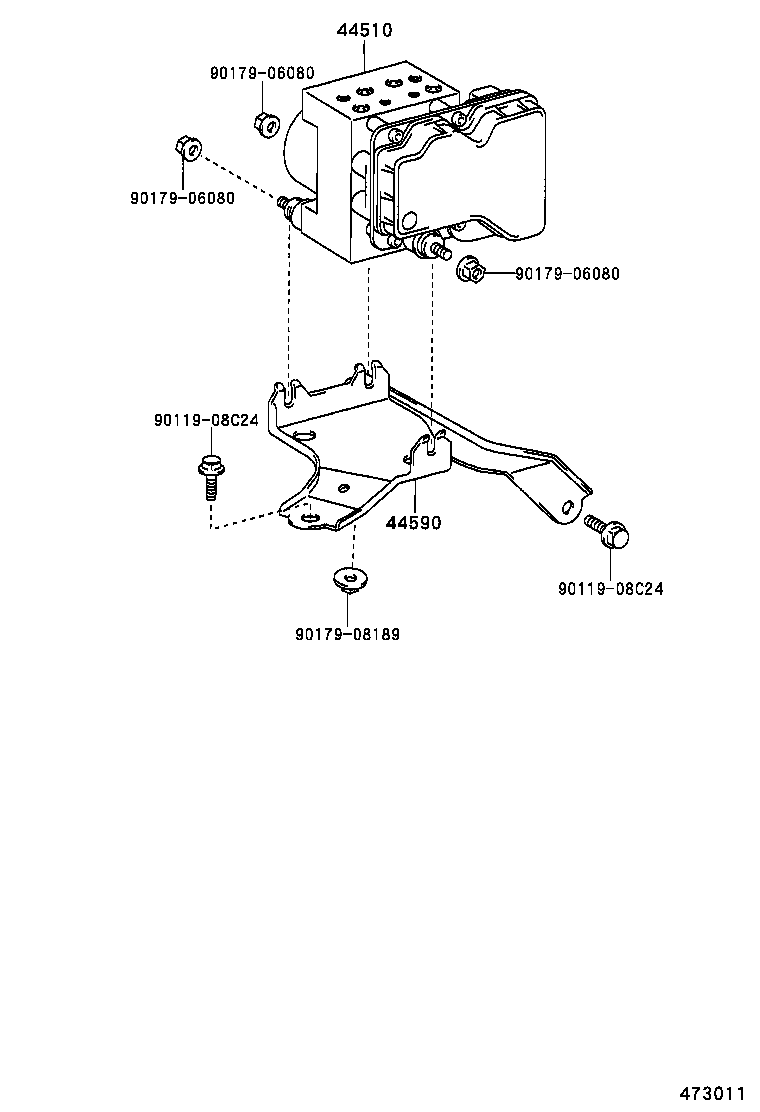

ILLUST NO. 2 OF 2(0204-0405)JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02060 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02040 |
ZZE130..JPP..5F;ZZE130..JPP..CND |
1 | ||
| Common parts | ||||
| 90119-08C24 | ||||
| 90179-06080 | ||||
| 90179-08189 | ||||
