ZZE130L-AEMDKA (2003)

Toyota Corolla Sed (Jpp)

Production Apr 2003 - May 2004
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0204-0405)JPP

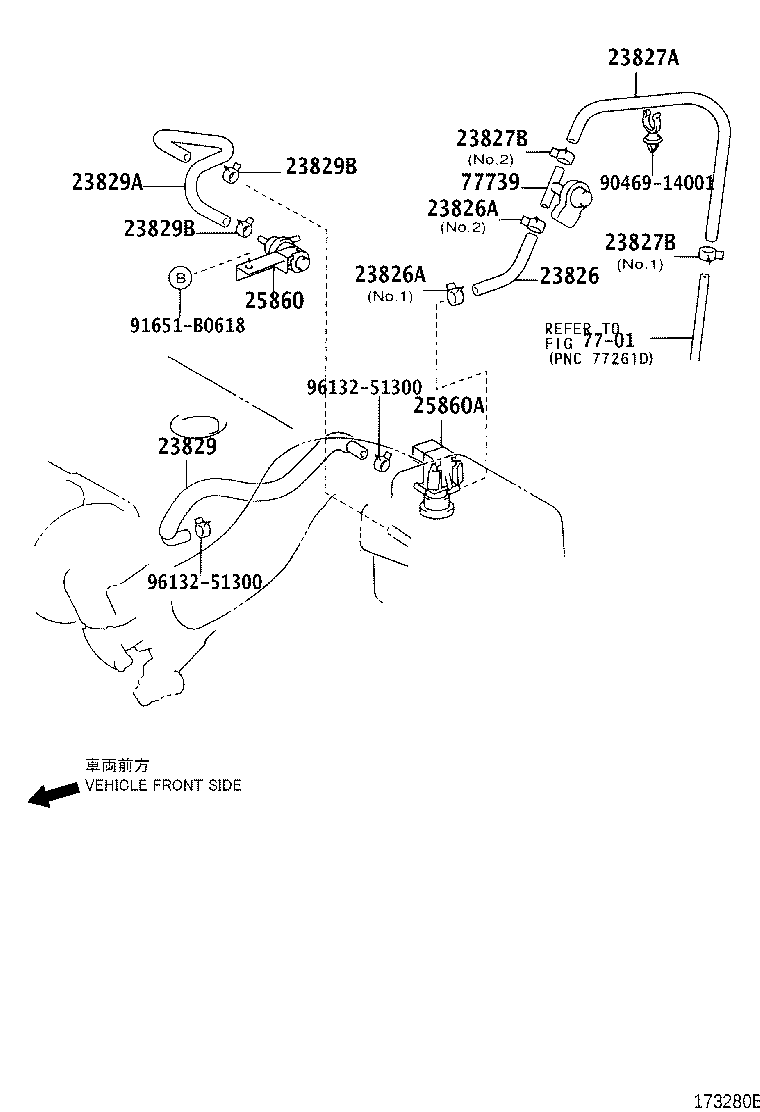

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23827A 23827B 23827B 23829 23829A 23829B 23829B 25860 25860A 7701 77739 9046914001 91651B0618 9613251300 9613251300
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0D010

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-13069

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.1

 1
90467-13070

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.2

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-13069

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.1

 1
90467-13070

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.2

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0D011

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 1
23827-0D010

1ZZFE..ZZE130..JPP

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-13070

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.2

 1
90467-13069

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.1

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-13070

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.2

 1
90467-13069

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

NO.1

 1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22080

1ZZFE..ZZE130..JPP

 1
23829A - HOSE, FUEL VAPOR FEED
23829-0D030

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90467-13069

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90467-13069

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-22100

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90080-91211

1ZZFE..ZZE130..5F;1ZZFE..ZZE130..CND

 1
77739 - VALVE, EVAP SERVICE PORT
77739-06010

ZZE130..JPP..5F;ZZE130..JPP..CND

 1
Common parts
90469-14001
91651-B0618
96132-51300
Linked diagrams
7701
