ZWE211L-AEXLBA (2019)
Toyota Corolla Sed (Jpp)

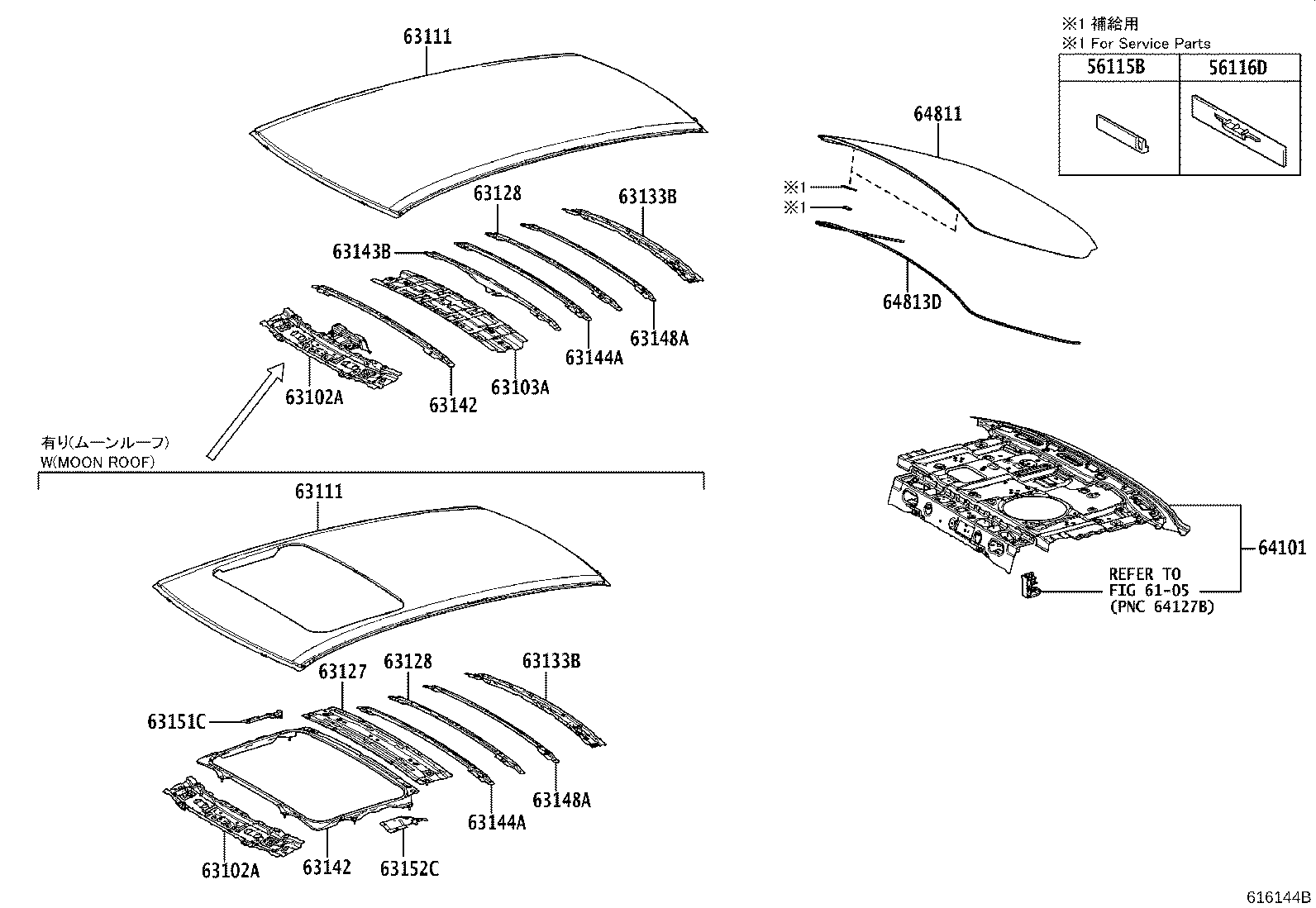

ILLUST NO. 1 OF 2(1901- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12911 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12911 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-12170 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA AMERICAN SAMOA SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA GUAM,SAIPAN SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA AMERICAN SAMOA SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA GUAM,SAIPAN SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-12040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-12040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12150 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12150 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12190 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12160 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12160 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12A20 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A900 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50130 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Linked diagrams | ||||
| 6105 | ||||
ILLUST NO. 1 OF 2(1901- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12911 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12911 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-12170 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA AMERICAN SAMOA SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA GUAM,SAIPAN SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA AMERICAN SAMOA SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA GUAM,SAIPAN SPEC |
1 | ||
| 63111-12A80 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA PUERTO RICO SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA |
1 | ||
| 63111-12B00 |
MZEA12,ZRE212,ZWE211..(D,L,S)..USA HAWAII SPEC&AUDIO-T1 (8INCH) 6SPEAKER |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-12040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-12040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12150 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12150 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12190 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12160 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12160 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12A20 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A900 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50130 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Linked diagrams | ||||
| 6105 | ||||
