Toyota Corolla sed (jpp) ZWE211 DISC WHEEL & WHEEL CAP

ZWE211L-AEXLBA (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

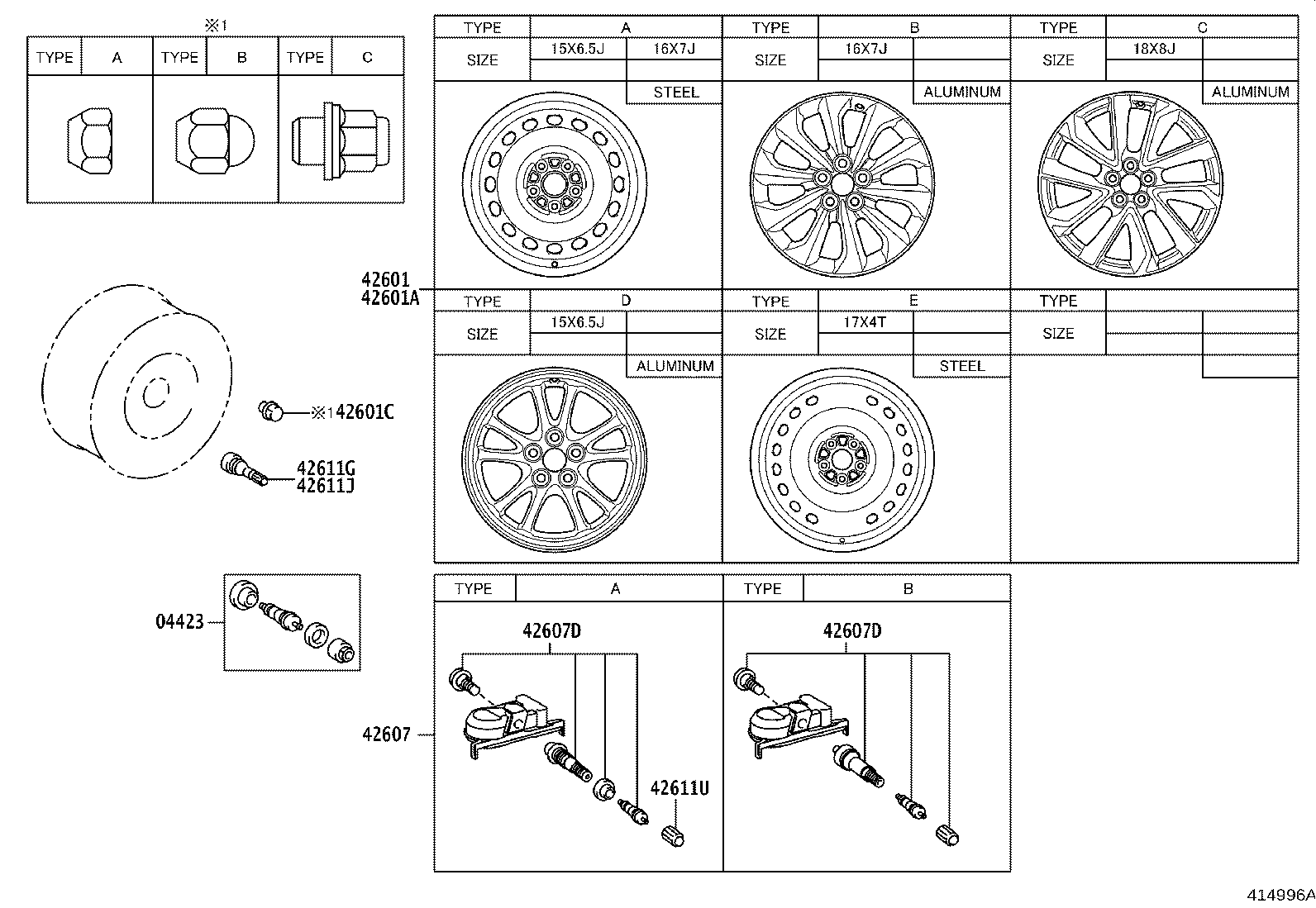

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-47450	ZWE211 15X6.5J, #,TYPE D:REFER ILLUST.	01/2019 - 04/2020	4
42601A - WHEEL, DISC (FOR SPARE)
42611-47631	ZRE212,ZWE211..D,L 17X4T,SPARE TIRE-T125/70D17,TYPE E:REFER ILLUST.	01/2019 - 04/2020	1
42611-47631	ZRE212,ZWE211..(D,L)..USA 17X4T,AMERICAN SAMOA SPEC&SPARE TIRE-T125/70D17(ROUGH),TYPE E:REFER ILLUST.	01/2019 - 09/2019	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	ZWE211;MZEA12,ZRE212..S,X,Y TYPE C:REFER ILLUST.	01/2019 - 04/2020	20
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-12010	ZWE211;MZEA12,ZRE212..S,X,Y TYPE B:REFER ILLUST.	01/2019 - 04/2020	4
42607D - VALVE, TIRE PRESSURE MONITOR
90942-05043	ZWE211;MZEA12,ZRE212..S,X,Y TYPE B:REFER ILLUST.	01/2019 - 04/2020	4
42607D - VALVE, TIRE PRESSURE MONITOR
90942-05043	ZWE211;MZEA12,ZRE212..S,X,Y TYPE B:REFER ILLUST.	01/2019 - 04/2020	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ZRE212,ZWE211..(D,L)..USA AMERICAN SAMOA SPEC&SPARE TIRE-T125/70D17(ROUGH)	01/2019 - 09/2019	1
90942-05009	ZRE212,ZWE211..D,L SPARE TIRE-T125/70D17	01/2019 - 04/2020	1

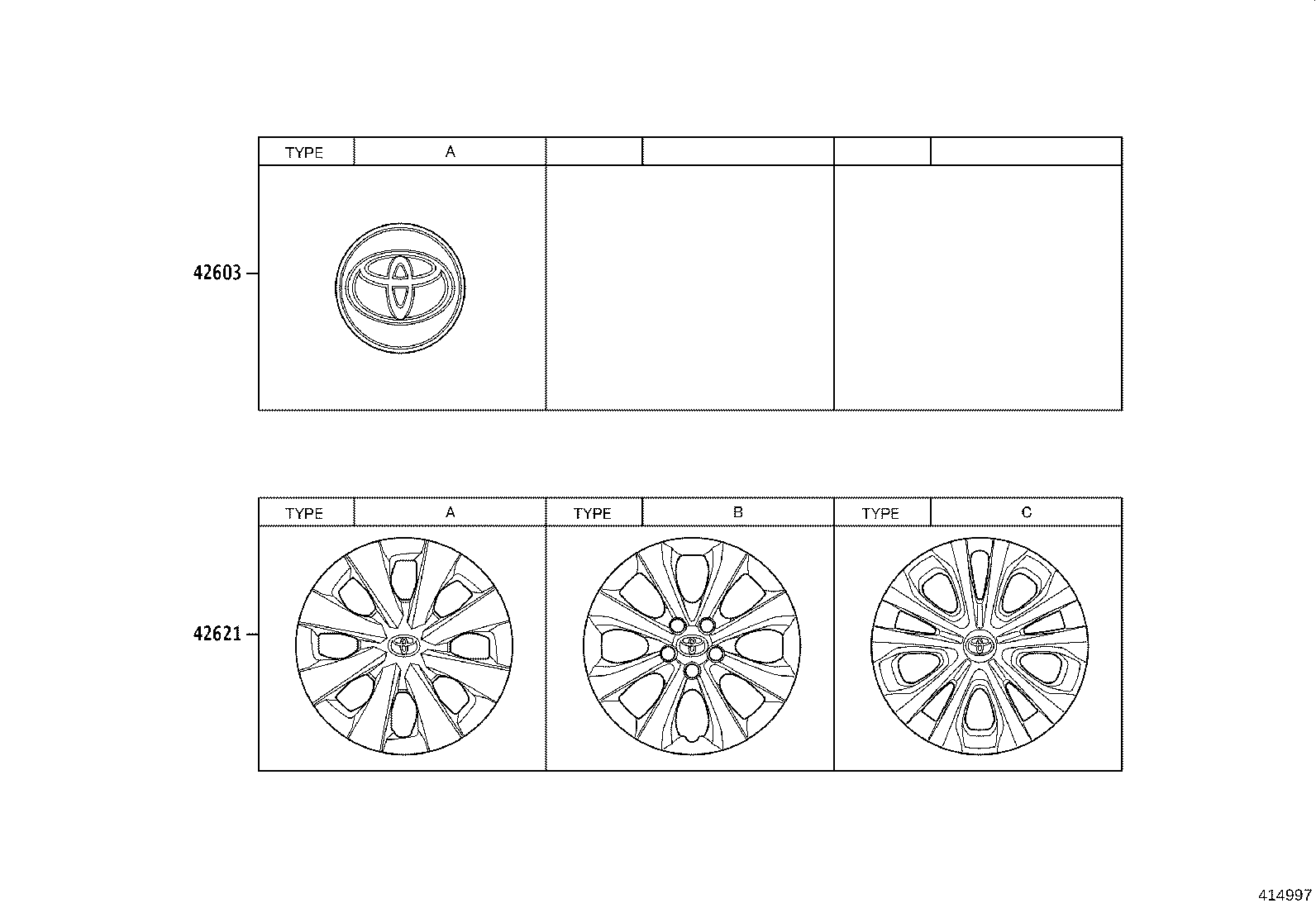

Click highlighted areas on diagram

Part #	Description	Period	Qty
42621 - CAP, WHEEL
42602-47260	ZWE211 TYPE C:REFER ILLUST.	01/2019 - 08/2019	4
42602-47261	ZWE211 TYPE C:REFER ILLUST.	09/2019 - 04/2020	4
