ZRE212R-AEXLP (2019)
Toyota Corolla Sed (Jpp)
Production
Sep 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1909- )RHD

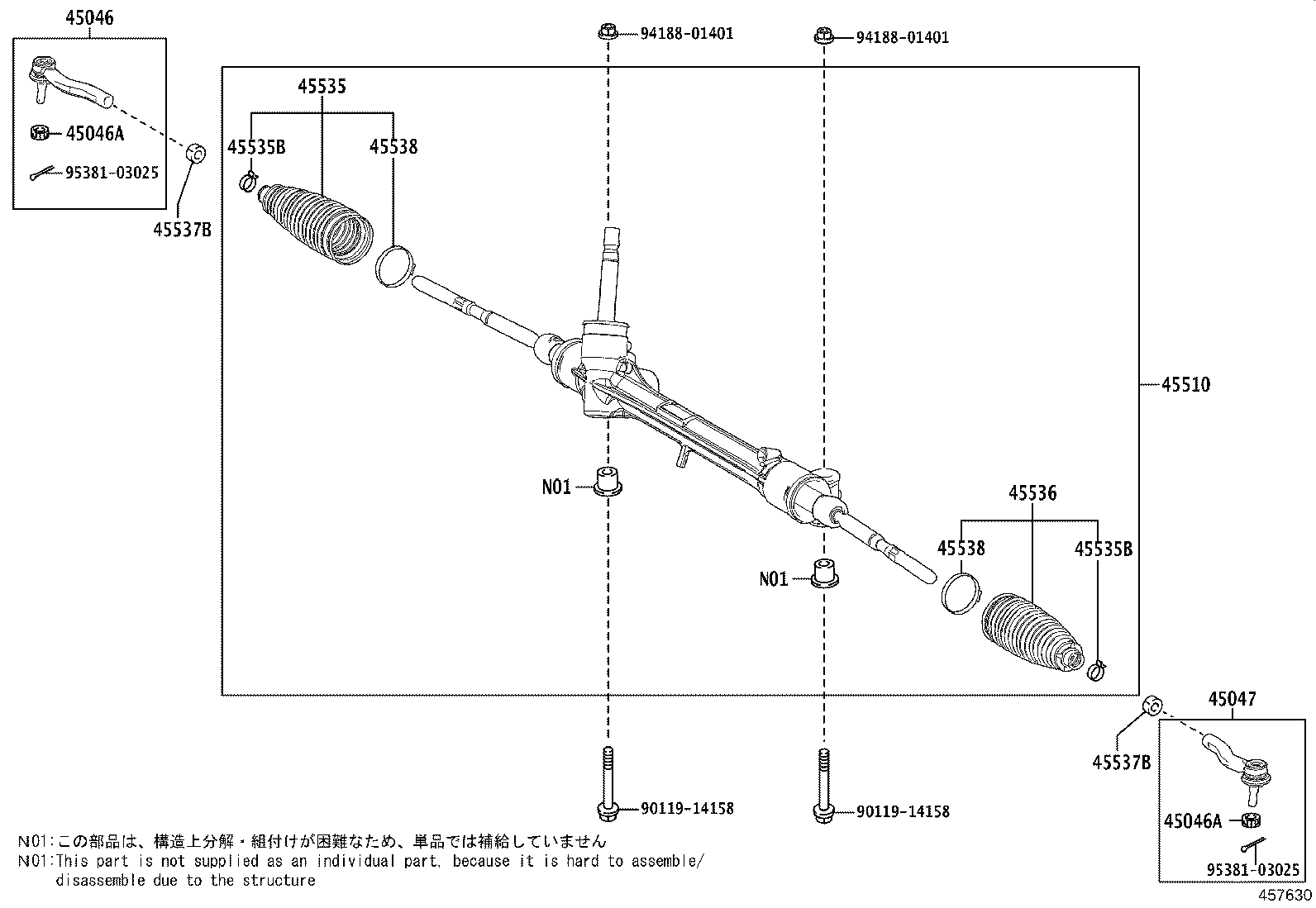

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-49255 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-49195 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12540 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-59075 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-59075 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90178-16001 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90178-16001 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45538 - RETAINER, STEERING RACK BOOT | ||||
| 45538-48020 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 45538 - RETAINER, STEERING RACK BOOT | ||||
| 45538-48020 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| Common parts | ||||
| 90119-14158 | ||||
| 94188-01401 | ||||
| 95381-03025 | ||||
