ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
ILLUST NO. 1 OF 3(1901-2004) ; (2004- )
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-12F30B0 |
ZRE212..L SILVER,TRIM0#,1#,2# |
1 | ||
| 55900-12A80B0 |
ZRE212..D SILVER,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90468-08048 | ||||

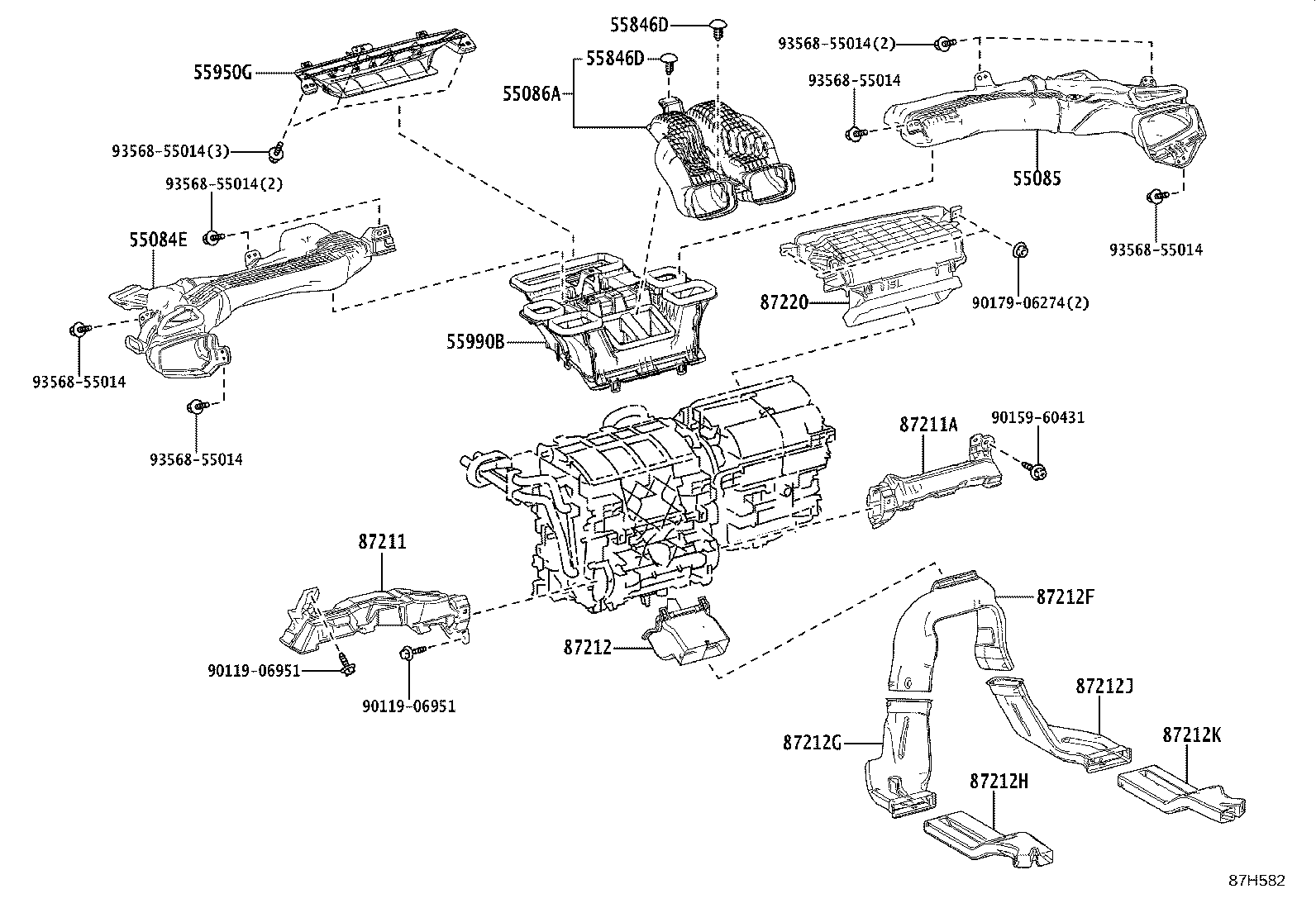

ILLUST NO. 2 OF 3(1901-2004)MZEA12,ZRE212 ; (2004- )MZEA12,ZRE212
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-12200 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-12290 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C9 |
MZEA12,ZRE212,ZWE211 BLACK |
2 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C9 |
MZEA12,ZRE212,ZWE211 BLACK |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12330 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-12450 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-12460 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87413-12010 |
MZEA12,ZRE212 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-12060 |
MZEA12,ZRE212 |
1 | ||
| 87215-12060 |
MZEA12,ZRE212 WITHOUT(COLD AREA SPEC) |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-47050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87213-47050 |
MZEA12,ZRE212,ZWE211..USA WITHOUT(COLD AREA SPEC) |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87217-47010 |
MZEA12,ZRE212,ZWE211..USA WITHOUT(COLD AREA SPEC) |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87212-47040 |
MZEA12,ZRE212,ZWE211..USA WITHOUT(COLD AREA SPEC) |
1 | ||
| 87212-47040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87216-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87216-47010 |
MZEA12,ZRE212,ZWE211..USA WITHOUT(COLD AREA SPEC) |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-12110 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 87220-12111 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 93568-55014 | ||||

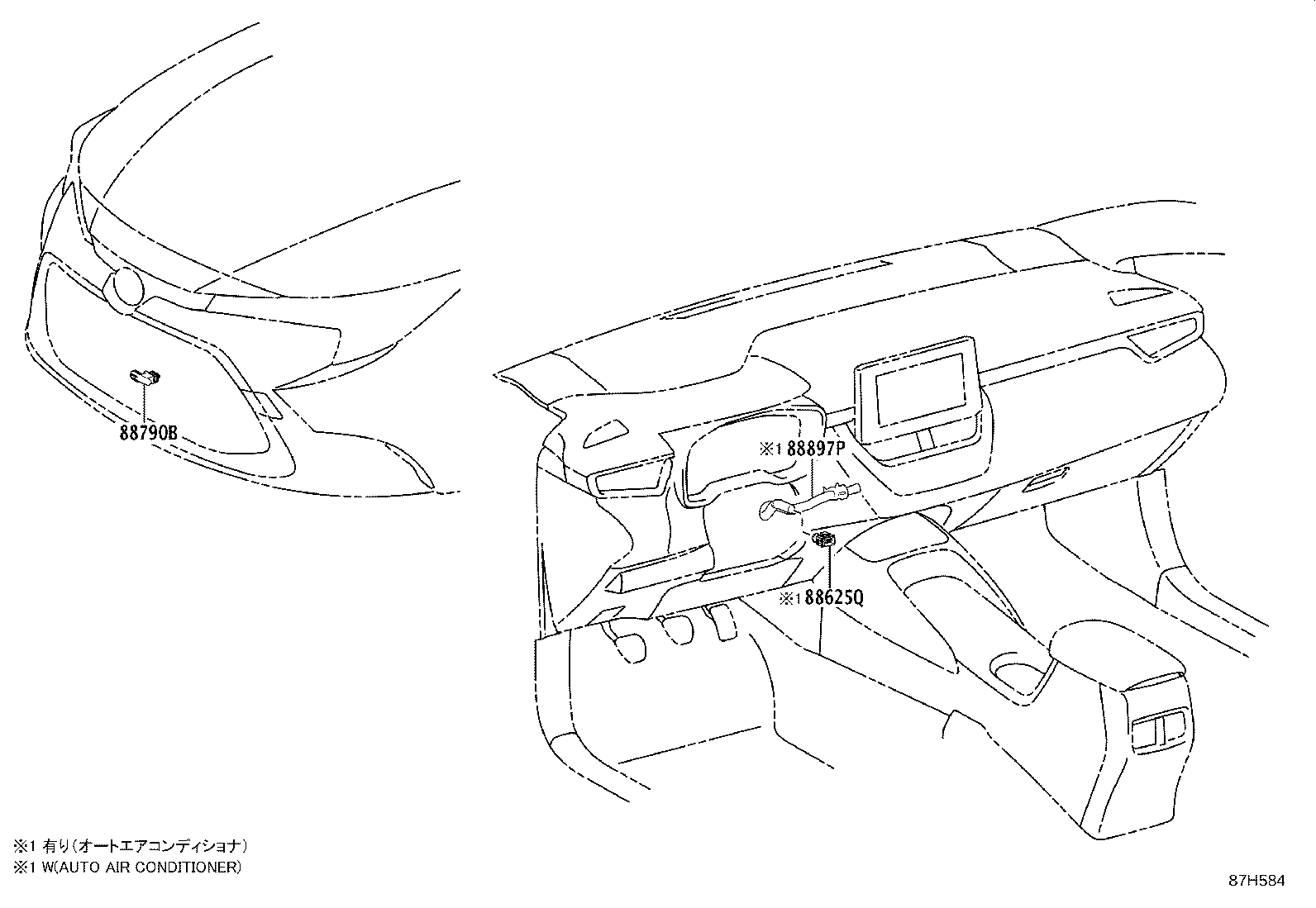

ILLUST NO. 3 OF 3(1901-2004)MZEA12,ZRE212 ; (2004- )MZEA12,ZRE212
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
MZEA12,ZRE212,ZWE211..L,S,X,Y |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-47070 |
MZEA12,ZRE212,ZWE211..L,S,X,Y |
1 | ||
ILLUST NO. 1 OF 3(1901-2004) ; (2004- )
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-12F30B0 |
ZRE212..L SILVER,TRIM0#,1#,2# |
1 | ||
| 55900-12A80B0 |
ZRE212..D SILVER,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90468-08048 | ||||
