ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )ZRE212

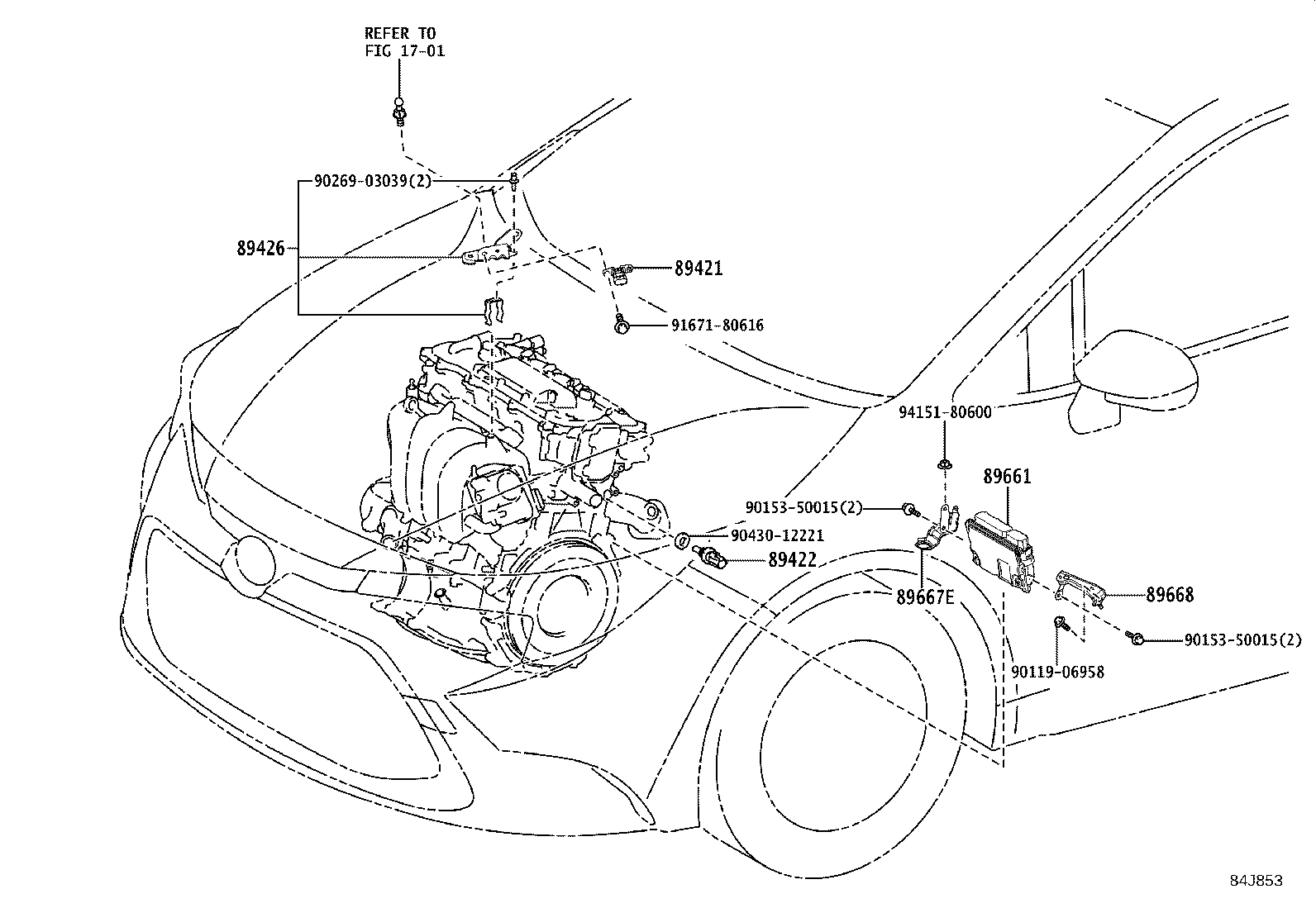

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-26030 |
ZRE212,ZWE211 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
ZRE212,ZWE211 |
1 | ||
| 89426 - BRACKET, VACUUM SENSOR | ||||
| 89426-13020 |
ZRE212 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-12X60 |
ZRE212..6F DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-12360 |
ZRE212 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-12290 |
ZRE212 |
1 | ||
| Common parts | ||||
| 90119-06958 | ||||
| 90153-50015 | ||||
| 90269-03039 | ||||
| 90430-12221 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(1901- )ZRE212
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-26030 |
ZRE212,ZWE211 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
ZRE212,ZWE211 |
1 | ||
| 89426 - BRACKET, VACUUM SENSOR | ||||
| 89426-13020 |
ZRE212 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-12X60 |
ZRE212..6F DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-12360 |
ZRE212 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-12290 |
ZRE212 |
1 | ||
| Common parts | ||||
| 90119-06958 | ||||
| 90153-50015 | ||||
| 90269-03039 | ||||
| 90430-12221 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
