ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
ILLUST NO. 7 OF 9(1901- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 84921-33180C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,2# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 84921-33180C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,2# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,2# |
1 | ||
| 84921-33170C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,2# |
1 | ||
| 84921-33170C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33200 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 84922-33210C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,2# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33200 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 84922-33210C0 |
ZRE212,ZWE211..L SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-12010C0 |
ZRE212,ZWE211..L SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,1#,2# |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 8 OF 9(1901- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12150 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 84040-12160 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12100 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 84810-12110 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12100 |
MZEA12,ZRE212,ZWE211..D,L,S |
2 | ||
| 84810-12110 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12100 |
MZEA12,ZRE212,ZWE211..D,L,S |
2 | ||
| 84810-12110 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12130 |
MZEA12,ZRE212,ZWE211..L,S SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 84872-12120 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 84930P - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
ILLUST NO. 9 OF 9(1901- )
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12,ZRE212 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12,ZRE212 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-12070 |
ZRE212..L LE PACKAGE2 |
1 | ||
| 84945-12070 |
ZRE212..L LE PACKAGE |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
ILLUST NO. 6 OF 9(1901- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZRE212..D,L;MZEA12..CVT..S |
1 | ||
| 84052-71010 |
ZRE212..L LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12690 |
MZEA12,ZRE212..S,X,Y |
1 | ||
| 84250-12580 |
ZRE212,ZWE211..D,L |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-11020 |
MZEA12,ZRE212,ZWE211..L,S,X,Y STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84308-12030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33080 |
MZEA12,ZRE212,ZWE211..USA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
ZRE212..L LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM) |
1 | ||
| 84450-33040 |
ZRE212..D,L;MZEA12..CVT..S |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33620 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA |
1 | ||
| 84652-12A40 |
ZRE212..D |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-50010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 9(1901- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-12340 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12200 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-33010 |
MZEA12,ZRE212,ZWE211..L,S,X,Y STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-12010 |
ZRE212..L CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12140 |
MZEA12,ZRE212,ZWE211..(L,S)..USA SEAT HEATER-WITH(DRIVER & PASSENGER),RIGHT SIDE |
1 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-12150 |
MZEA12,ZRE212,ZWE211..(L,S)..USA SEAT HEATER-WITH(DRIVER & PASSENGER),LEFT SIDE |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-12150 |
ZRE212..D,L |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-12150 |
ZRE212..D,L |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA12,ZRE212,ZWE211..L,S,X,Y |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA12,ZRE212,ZWE211..L,S,X,Y |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12090C0 |
MZEA12,ZRE212,ZWE211 BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
ZRE212..L LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM) |
1 | ||
| 89611-12010 |
ZRE212..L LE PACKAGE2&WITH(SMART ENTRY & PANIC ALARM) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
ZRE212..L LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM) |
1 | ||
| 89611-12010 |
ZRE212..L LE PACKAGE2&WITH(SMART ENTRY & PANIC ALARM) |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 4 OF 9(1901- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
M20AFKS,2ZR#..MZEA12,ZRE212,ZWE211..(L,S)..USA SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,ZRE212,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,ZRE212,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
MZEA12,ZRE212,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
MZEA12,ZRE212,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
MZEA12,ZRE212,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
MZEA12,ZRE212,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
MZEA12,ZRE212,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
MZEA12,ZRE212,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
MZEA12,ZRE212,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
MZEA12,ZRE212,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
MZEA12,ZRE212,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
MZEA12,ZRE212,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
ZRE212..6F |
1 | ||
| 82660M - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
ZRE212..6F |
1 | ||
| 82660N - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
ZRE212..6F |
1 | ||
| 82660P - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZRE212..6F |
1 | ||
| 82663D - COVER, RELAY BLOCK, LOWER, NO.5 | ||||
| 82663-12150 |
ZRE212..6F |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-12610 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12340 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82716A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-12W60 |
MZEA12,ZRE212..6F |
1 | ||
| 82716A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-12W60 |
MZEA12,ZRE212..6F |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12N90 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 88280-70010 |
MZEA12,ZRE212..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZRE212..L LE PACKAGE |
1 | ||
| 84550-33010 |
ZRE212..D,L |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
MZEA12,ZRE212,ZWE211..L,S,X,Y STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
ZRE212..6F |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12050 |
MZEA12,ZRE212 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-12E40 |
ZRE212..6F AMERICAN SAMOA SPEC&WITH(WIRELESS DOOR LOCK & PANIC ALARM)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 89220-12G20 |
ZRE212..L AMERICAN SAMOA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN) |
1 | ||
| 89220-12E30 |
ZRE212..6F AMERICAN SAMOA SPEC |
1 | ||
| 89220-12D40 |
ZRE212..6F PUERTO RICO SPEC |
1 | ||
| 89220-12D70 |
ZRE212..6F |
1 | ||
| 89220-12D50 |
ZRE212..6F PUERTO RICO SPEC&WITH(WIRELESS DOOR LOCK & PANIC ALARM)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 89220-12E00 |
ZRE212..6F GUAM,SAIPAN SPEC |
1 | ||
| 89220-12F30 |
ZRE212..L ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN) |
1 | ||
| 89220-12E90 |
ZRE212..L PUERTO RICO SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN) |
1 | ||
| 89220-12D80 |
ZRE212..6F WITH(WIRELESS DOOR LOCK & PANIC ALARM)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 89220-12E10 |
ZRE212..6F GUAM,SAIPAN SPEC&WITH(WIRELESS DOOR LOCK & PANIC ALARM)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 89220-12F80 |
ZRE212..L GUAM,SAIPAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12K30 |
ZRE212 JTEKT/DENSO |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
ZRE212..L ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN) |
1 | ||
| 90987-02027 |
ZRE212..D LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 90987-02027 |
ZWE211;MZEA12,ZRE212..S,X,Y |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 93315-54010 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8433 | ||||

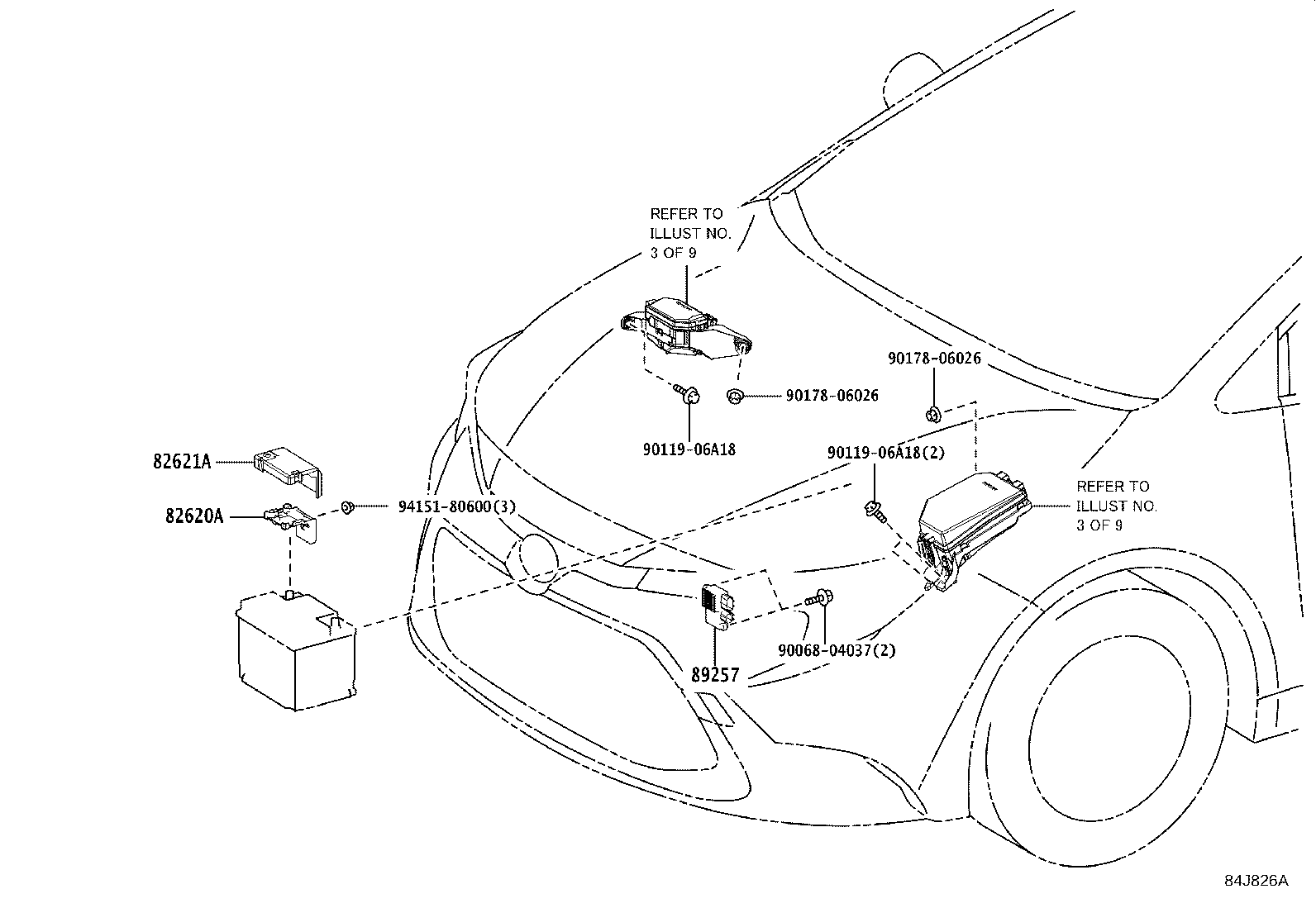

ILLUST NO. 2 OF 9(1901- )ZRE212
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
ZRE212..6F |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-12040 |
MZEA12,ZRE212 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZRE212 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| 94151-80600 | ||||

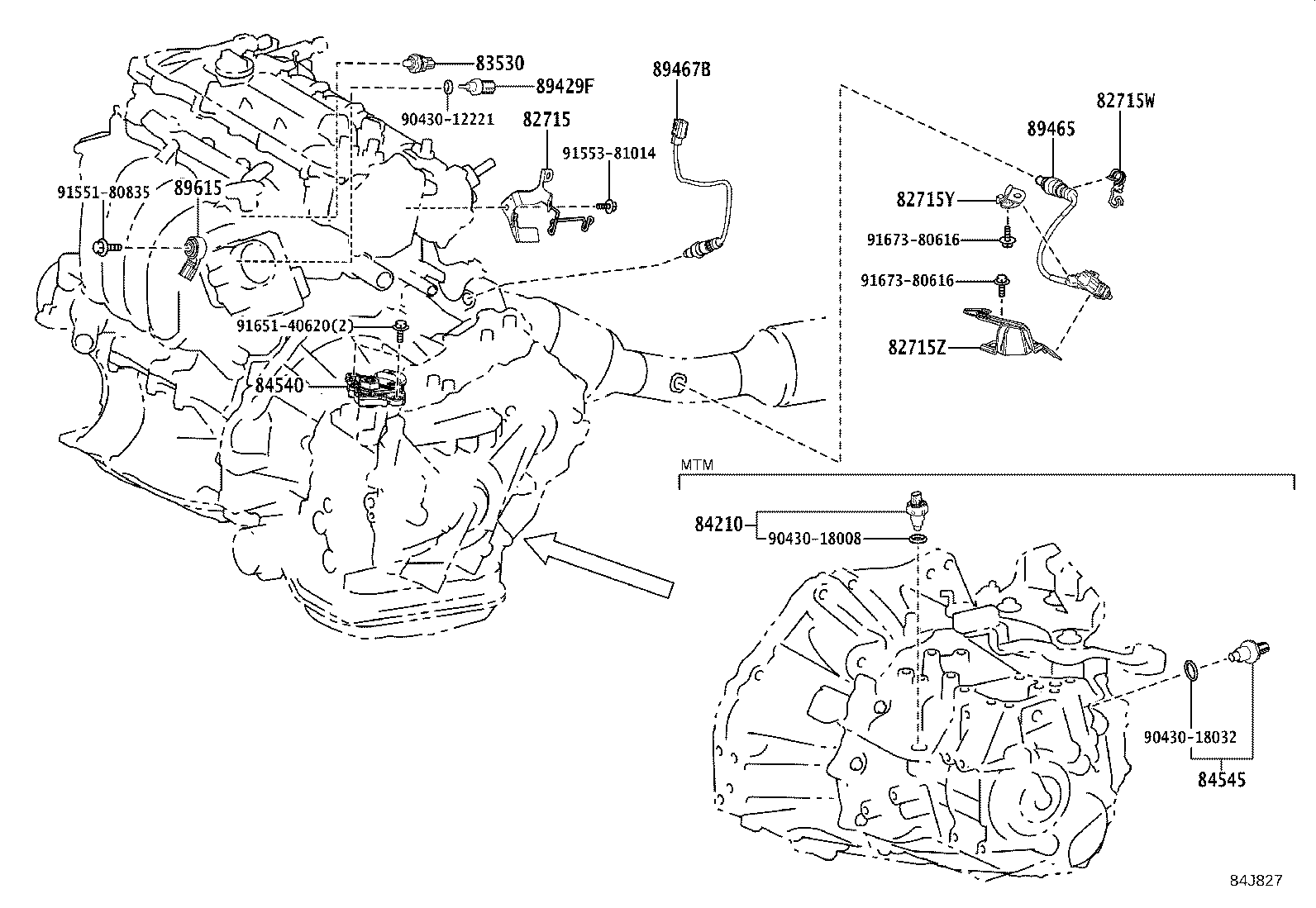

ILLUST NO. 1 OF 9(1901- )ZRE212
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-10410 |
ZRE212 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82729-20040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-47690 |
ZRE212,ZWE211 |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-47A60 |
ZRE212,ZWE211 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZRE212,ZWE211 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
MZEA12,ZRE212..6F |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
MZEA12,ZRE212..6F |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZRE212 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47090 |
ZRE212,ZWE211 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12260 |
ZRE212 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91673-80616 | ||||

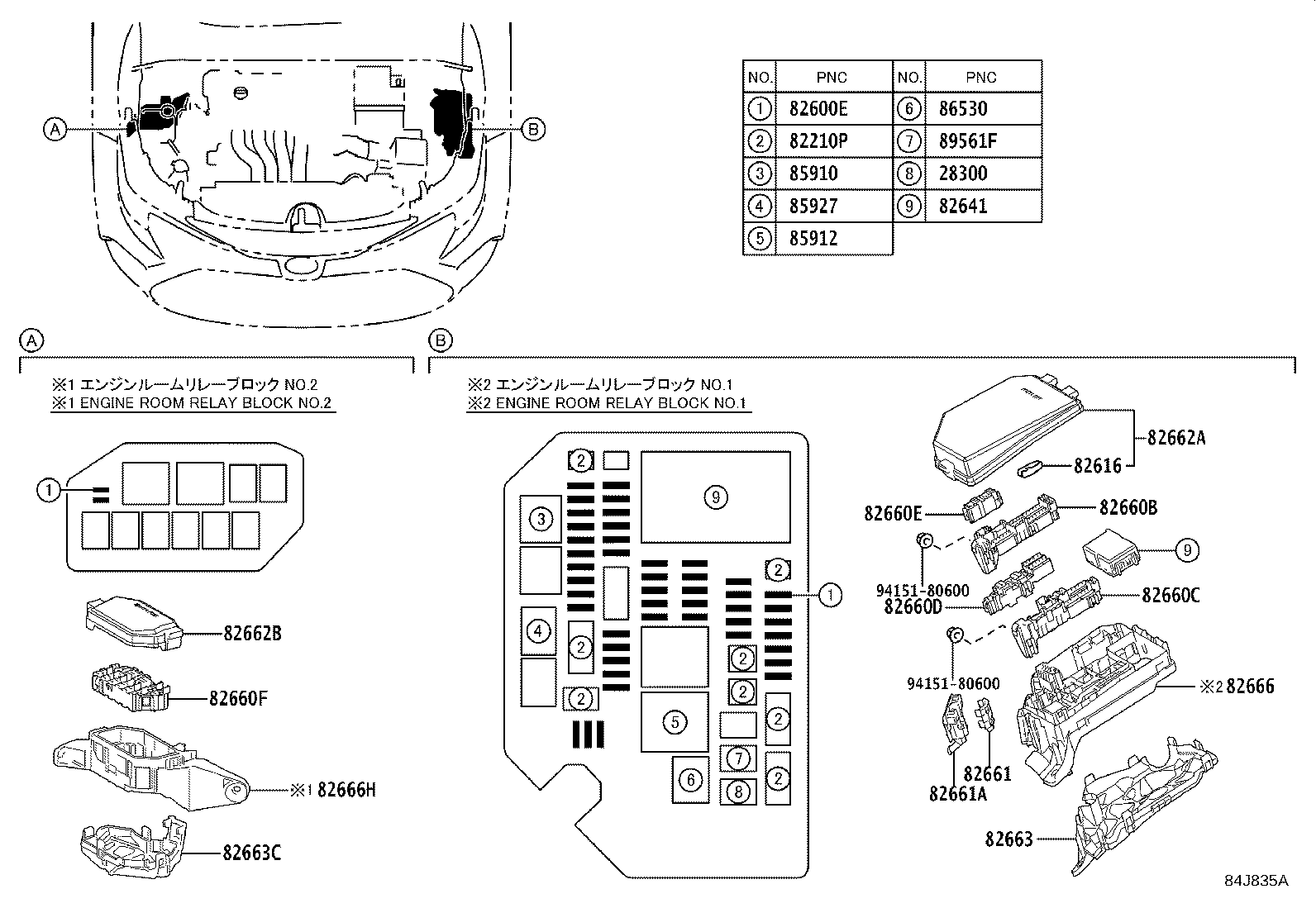

ILLUST NO. 3 OF 9(1901- )ZRE212
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M20AFKS,2ZRFAE..MZEA12,ZRE212 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZRE212..6F 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
ZRE212..6F 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE212..6F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ZRE212..6F 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ZRE212..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZRE212..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ZRE212..6F 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ZRE212..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE212..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ZRE212..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE212..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZRE212..6F |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
ZRE212..6F |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
ZRE212..6F |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
ZRE212..6F |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
ZRE212..6F |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
ZRE212..6F |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12350 |
ZRE212..6F |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-12340 |
ZRE212..6F |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12C40 |
ZRE212 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
ZRE212..6F |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-47090 |
ZRE212..6F |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
ZRE212..6F |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZRE212..6F |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ZRE212,ZWE211 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZRE212,ZWE211 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
ZRE212 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF 9(1901- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
ILLUST NO. 9 OF 9(1901- )
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12,ZRE212 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12,ZRE212 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-12070 |
ZRE212..L LE PACKAGE2 |
1 | ||
| 84945-12070 |
ZRE212..L LE PACKAGE |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-12010 |
MZEA12,ZRE212,ZWE211..(L,S,X,Y)..USA LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
ILLUST NO. 2 OF 9(1901- )ZRE212
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
ZRE212..6F |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-12040 |
MZEA12,ZRE212 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZRE212 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| 94151-80600 | ||||

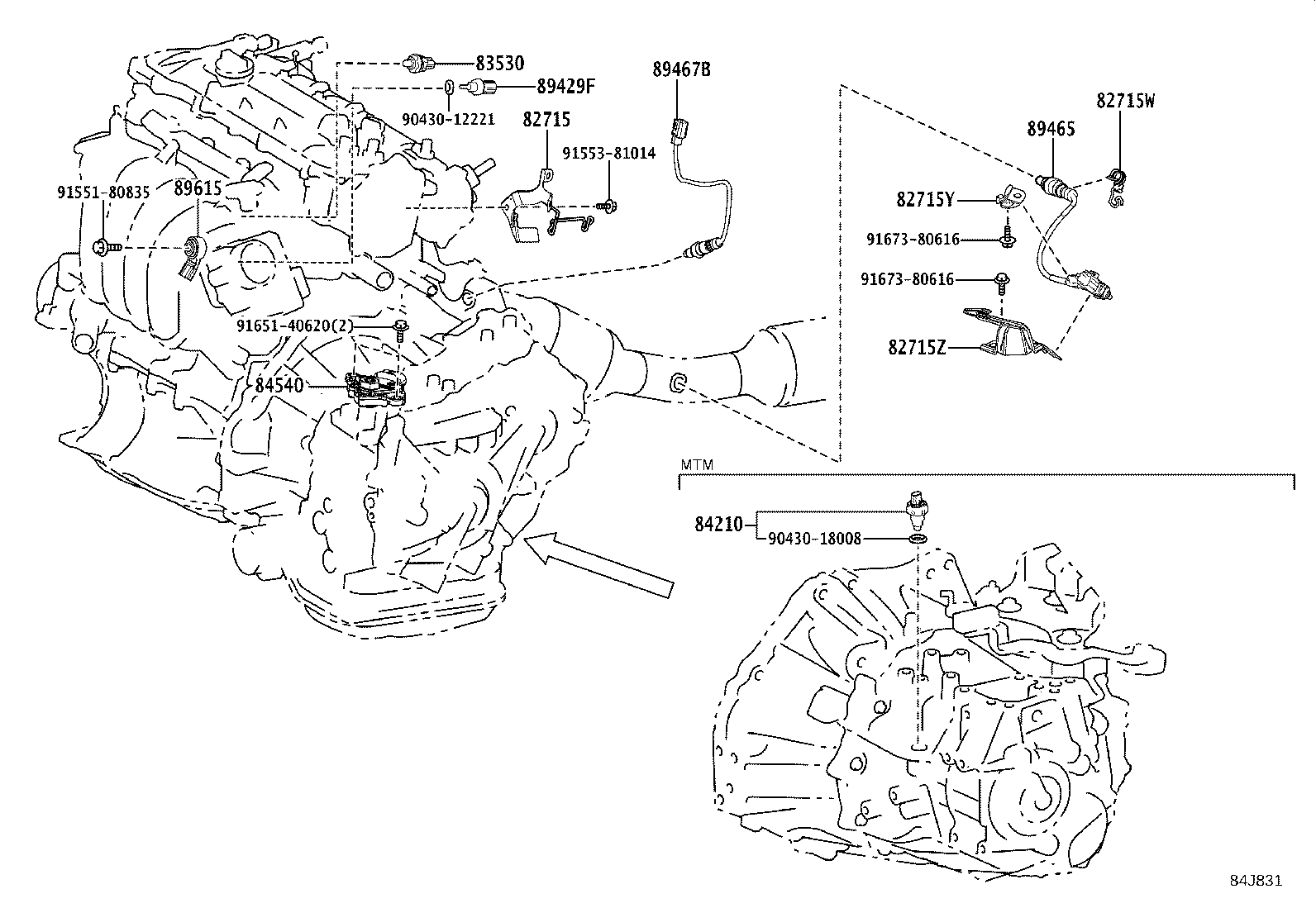

ILLUST NO. 1 OF 9(1901- )ZRE212
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91673-80616 | ||||
ILLUST NO. 3 OF 9(1901- )ZRE212
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M20AFKS,2ZRFAE..MZEA12,ZRE212 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZRE212..6F 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
ZRE212..6F 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE212..6F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ZRE212..6F 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ZRE212..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZRE212..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ZRE212..6F 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ZRE212..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE212..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ZRE212..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE212..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZRE212..6F |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
ZRE212..6F |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
ZRE212..6F |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
ZRE212..6F |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
ZRE212..6F |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
ZRE212..6F |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12350 |
ZRE212..6F |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-12340 |
ZRE212..6F |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12C40 |
ZRE212 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
ZRE212..6F |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-47090 |
ZRE212..6F |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
ZRE212..6F |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZRE212..6F |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ZRE212,ZWE211 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZRE212,ZWE211 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
ZRE212 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
