ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
ILLUST NO. 4 OF 4(1901- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12620 |
MZEA12,ZRE212 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12120 |
MZEA12,ZRE212 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12570 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12100 |
MZEA12,ZRE212 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
| 90541-06069 | ||||

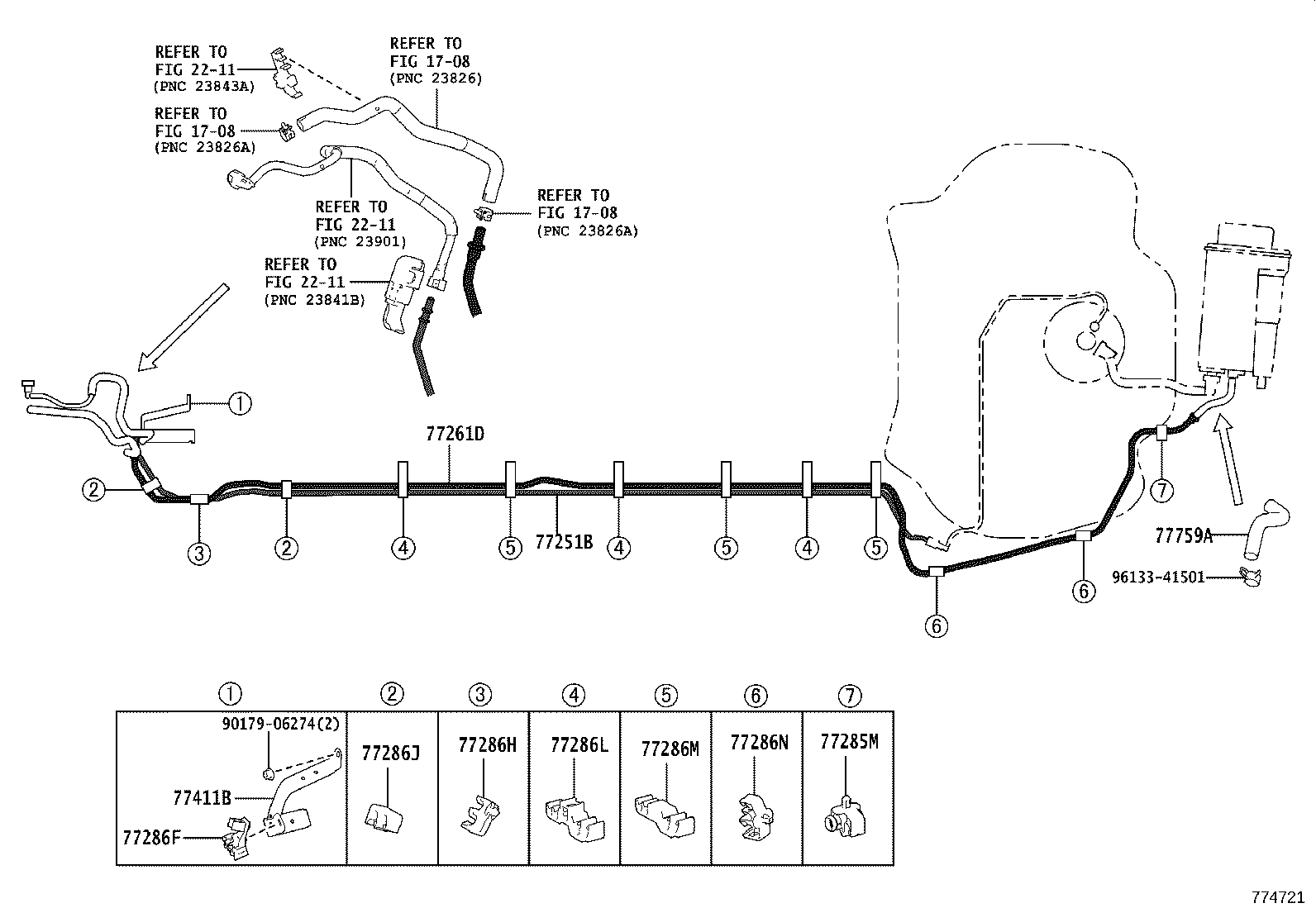

ILLUST NO. 3 OF 4(1901- )MZEA12,ZRE212
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12A10 |
ZRE212 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12660 |
MZEA12,ZRE212 |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-12170 |
MZEA12,ZRE212 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12280 |
ZRE212 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-12240 |
ZRE212,ZWE211 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-12080 |
ZRE212,ZWE211 |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-12180 |
ZRE212,ZWE211 |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77298-12190 |
ZRE212,ZWE211 |
3 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-12230 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-12020 |
MZEA12,ZRE212 |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-12110 |
MZEA12,ZRE212 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

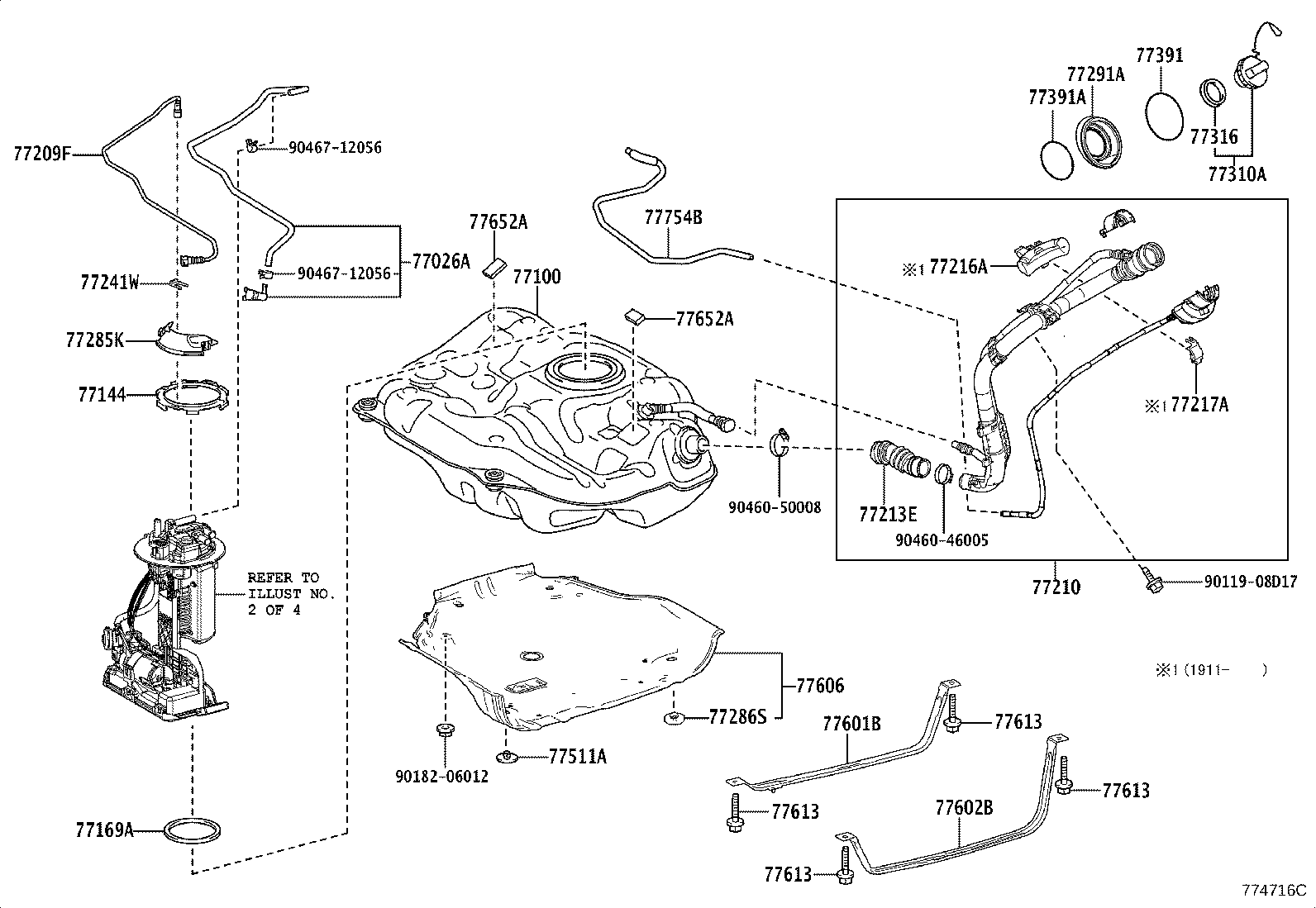

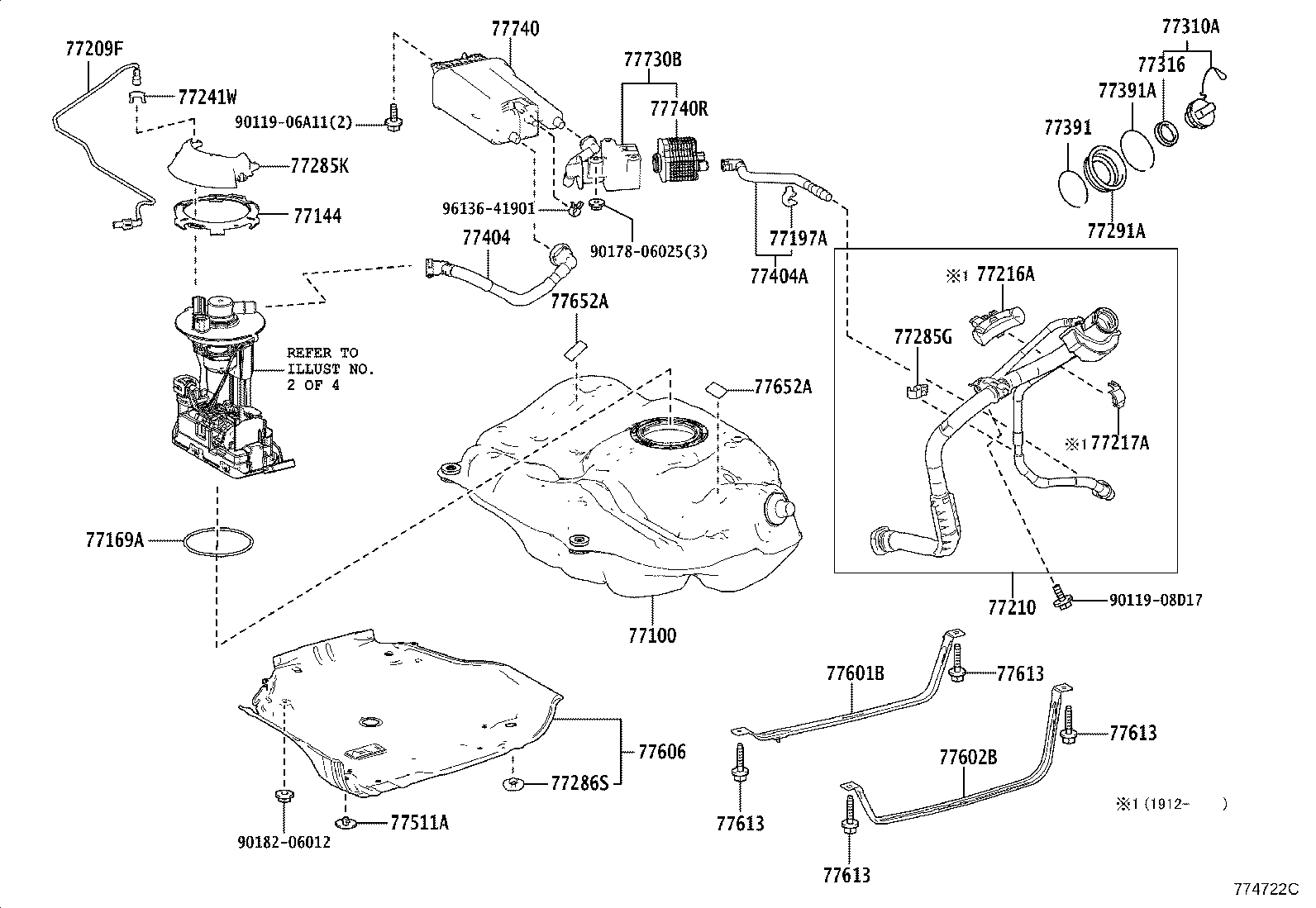

ILLUST NO. 1 OF 4(1901- )ZRE212
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12D60 |
MZEA12,ZRE212 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12320 |
ZRE212 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-12610 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77210-12611 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12290 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-12200 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MZEA12,ZRE212 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47120 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10060 |
MZEA12,ZRE212 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
MZEA12,ZRE212 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53030 |
MZEA12,ZRE212 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-12210 |
MZEA12,ZRE212 |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-12200 |
MZEA12,ZRE212 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
MZEA12,ZRE212,ZWE211 |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-10080 |
MZEA12,ZRE212 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-10030 |
MZEA12,ZRE212 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-10060 |
MZEA12,ZRE212 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
MZEA12,ZRE212 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
MZEA12,ZRE212 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
MZEA12,ZRE212 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
MZEA12,ZRE212 |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-10070 |
MZEA12,ZRE212 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-10070 |
MZEA12,ZRE212 |
2 | ||
| 77730B - CANISTER ASSY, CHARCOAL W/OUTLET HOSE | ||||
| 77730-12010 |
MZEA12,ZRE212 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33220 |
MZEA12,ZRE212 |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
MZEA12,ZRE212 (J) |
1 | ||
| 90910-AF006 |
MZEA12,ZRE212 (L) |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-08D17 | ||||
| 90178-06025 | ||||
| 90182-06012 | ||||
| 96136-41901 | ||||

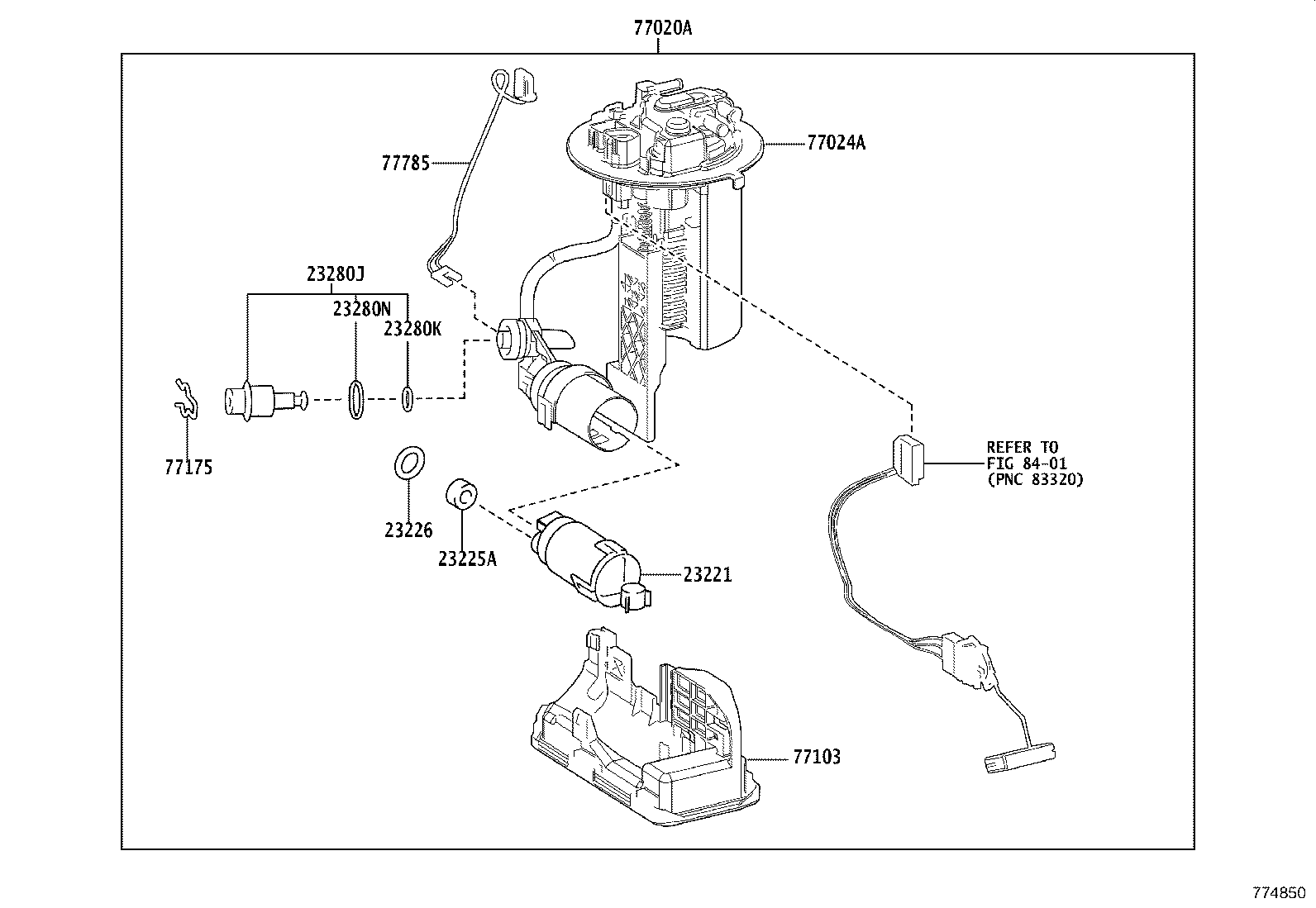

ILLUST NO. 2 OF 4(1901- )ZRE212
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-37040 |
2ZRFAE..ZRE212 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFAE..ZRE212 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-08020 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-37010 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-12A20 |
ZRE212 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12360 |
ZRE212 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12160 |
MZEA12,ZRE212 |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12010 |
MZEA12,ZRE212 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12040 |
ZRE212,ZWE211 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12050 |
ZRE212,ZWE211 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 4(1901- )ZRE212
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08D17 | ||||
| 90182-06012 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||

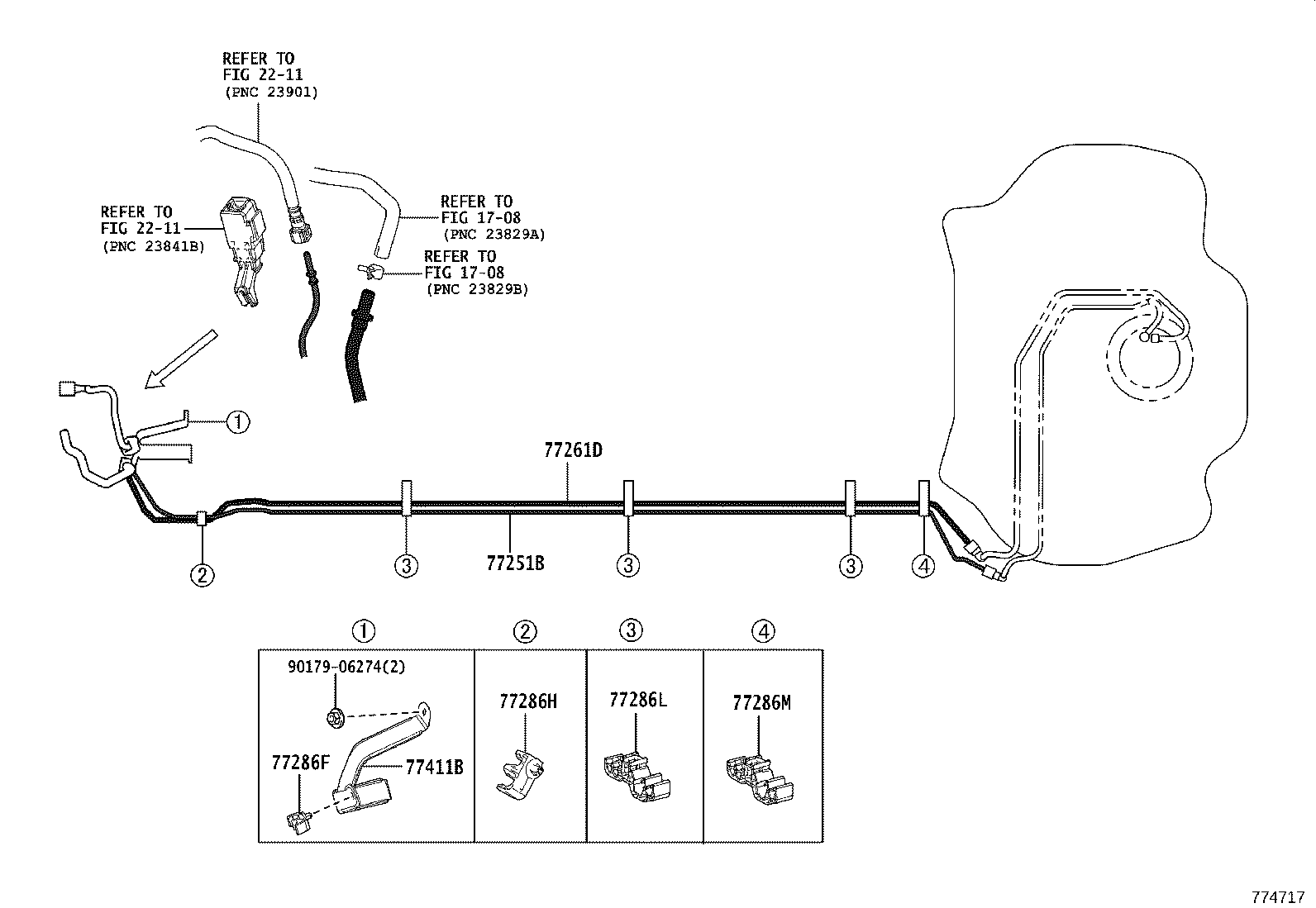

ILLUST NO. 3 OF 4(1901- )ZRE212
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 2 OF 4(1901- )ZRE212
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
