ZRE212L-AEFDPA (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

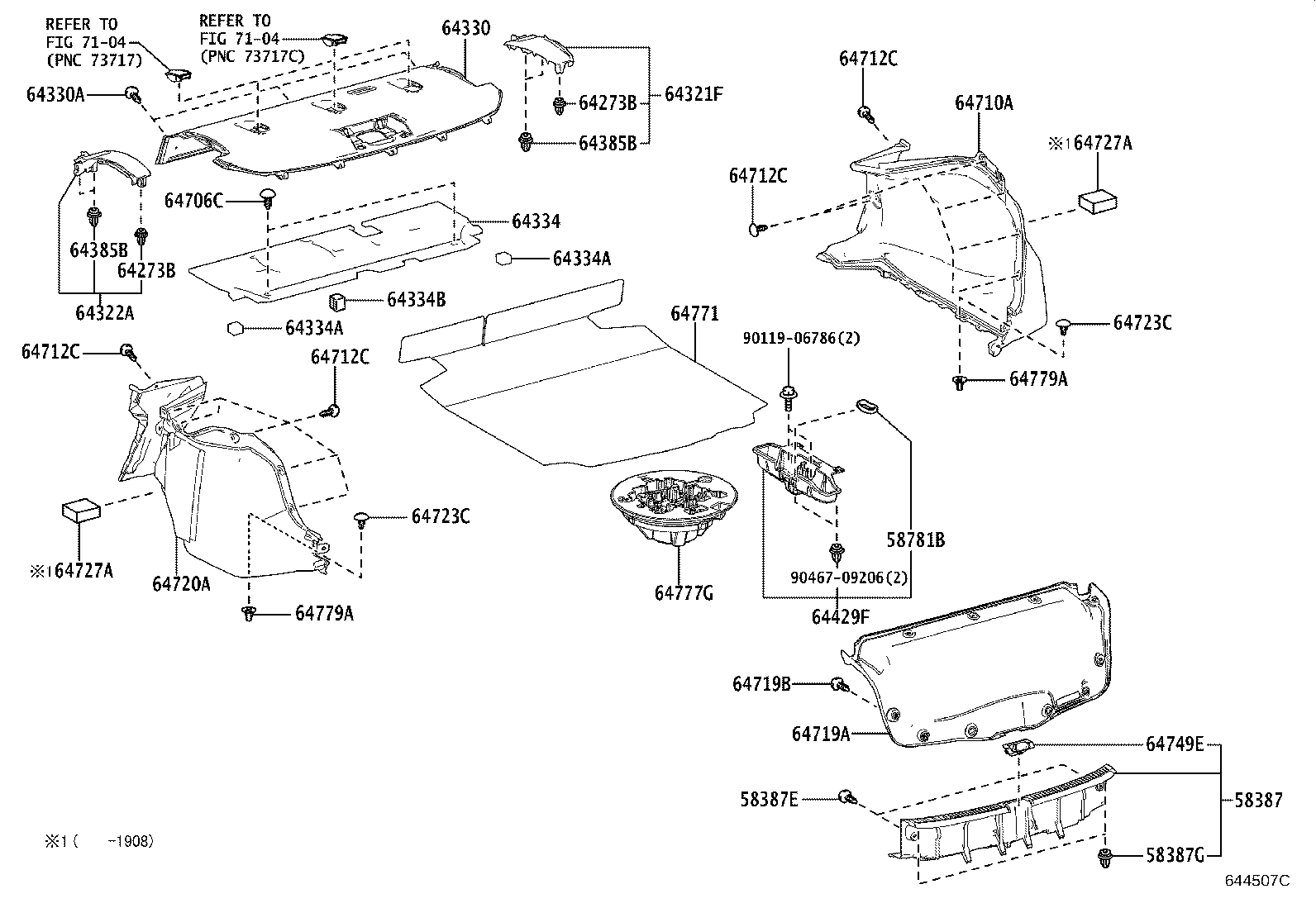

Click highlighted areas on diagram

diagram 58387 58387E 58387G 64273B 64273B 64321F 64322A 64330 64330 64330A 64330A 64334 64334A 64334A 64334B 64383 64385B 64385B 64706C 64710A 64712C 64712C 64712C 64712C 64719A 64719B 64720A 64723C 64723C 64727A 64727A 64749E 64771 64777G 64777G 64779A 64779A
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-12110C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
58387-12110C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-08186C3

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 2
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
58387G - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-10161

MZEA12,ZRE212,ZWE211

 2
64273B - CLIP
90467-09240

MZEA12,ZRE212,ZWE211

 2
64273B - CLIP
90467-09240

MZEA12,ZRE212,ZWE211

 2
64321F - BRACKET, PACKAGE TRAY TRIM, RH
64301-12280C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64301-12280C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64322A - BRACKET, PACKAGE TRAY TRIM, LH
64302-12280C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64302-12280C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-12C80C0

ZRE212..L

AUDIO-T0 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,1#,2#

 1
64330-12C70C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64330-12C70C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-12C80C0

ZRE212..L

AUDIO-T0 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,1#,2#

 1
64330-12C70C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64330-12C70C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-08186C3

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 3
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 3
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-08186C3

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 3
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 3
64334 - PAD, PACKAGE TRAY TRIM SILENCER
64334-12420

MZEA12,ZRE212,ZWE211..D,L,S

 1
64334A - PAD, PACKAGE TRAY TRIM
64334-12450

MZEA12,ZRE212,ZWE211

 2
64334A - PAD, PACKAGE TRAY TRIM
64334-12450

MZEA12,ZRE212,ZWE211

 2
64334B - PAD, PACKAGE TRAY TRIM, NO.2
64334-12460

MZEA12,ZRE212,ZWE211

 1
64383 - GRILLE, SPEAKER, REAR
64383-12200C0

ZRE212..L

AUDIO-T0 (8INCH) 6SPEAKER & JBL 9SPEAKER,BLACK,TRIM0#,1#,2#

 1
64385B - CLIP
90467-10161

MZEA12,ZRE212,ZWE211

 4
64385B - CLIP
90467-10161

MZEA12,ZRE212,ZWE211

 4
64706C - CLIP
90467-06020C0

MZEA12,ZRE212,ZWE211

BLACK

 2
64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
64710-12080C0

ZRE212..D

BLACK,TRIM1#,2#

 1
64710-12080C0

ZRE212..L

BLACK,TRIM0#,1#,2#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 12
90467-08186C3

ZRE212..D

BLACK,TRIM1#,2#

 12
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 12
90467-08186C3

ZRE212..D

BLACK,TRIM1#,2#

 12
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 12
90467-08186C3

ZRE212..D

BLACK,TRIM1#,2#

 12
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 12
90467-08186C3

ZRE212..D

BLACK,TRIM1#,2#

 12
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-12190C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64719-12190C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-08186C3

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 11
90467-08186C3

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 11
64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
64720-12070C0

ZRE212..L

BLACK,TRIM0#,1#,2#

 1
64720-12070C0

ZRE212..D

BLACK,TRIM1#,2#

 1
64723C - CLIP, LUGGAGE COMPARTMENT TRIM COVER
64726-26010C2

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
64726-26010C2

ZRE212..D

BLACK,TRIM1#,2#

 2
64723C - CLIP, LUGGAGE COMPARTMENT TRIM COVER
64726-26010C2

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
64726-26010C2

ZRE212..D

BLACK,TRIM1#,2#

 2
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-12080

MZEA12,ZRE212,ZWE211

 2
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-12080

MZEA12,ZRE212,ZWE211

 2
64749E - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-12050C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64749-12050C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64771 - COVER, SPARE WHEEL
64771-12370C0

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
64771-12370C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
64777G - CUSHION, SPARE WHEEL
64777-12180

ZRE212..D

TIRE&DISK WHEEL-205/55R16 STEEL ROUGH ROAD&SPARE TIRE-T125/70D17(ROUGH)

 1
64777-12180

ZRE212,ZWE211..D,L

SPARE TIRE-T125/70D17

 1
64777-12180

ZRE212,ZWE211..L..USA

AMERICAN SAMOA SPEC&SPARE TIRE-T125/70D17(ROUGH)

 1
64777-12180

MZEA12,ZRE212..S,X,Y

 1
64777-12270

ZRE212,ZWE211..D,L

 1
64777G - CUSHION, SPARE WHEEL
64777-12180

ZRE212..D

TIRE&DISK WHEEL-205/55R16 STEEL ROUGH ROAD&SPARE TIRE-T125/70D17(ROUGH)

 1
64777-12180

ZRE212,ZWE211..D,L

SPARE TIRE-T125/70D17

 1
64777-12180

ZRE212,ZWE211..L..USA

AMERICAN SAMOA SPEC&SPARE TIRE-T125/70D17(ROUGH)

 1
64777-12180

MZEA12,ZRE212..S,X,Y

 1
64777-12270

ZRE212,ZWE211..D,L

 1
64779A - STOPPER, SPARE WHEEL COVER
64779-26010

MZEA12,ZRE212,ZWE211

 2
64779A - STOPPER, SPARE WHEEL COVER
64779-26010

MZEA12,ZRE212,ZWE211

 2

(1901- )MZEA12,ZRE212

Click highlighted areas on diagram

W(SPARE TIRE - GROUND TIRE)

diagram 58387 58387E 58387G 58781B 64273B 64273B 64321F 64322A 64330 64330A 64334 64334A 64334A 64334B 64385B 64385B 64429F 64706C 64710A 64712C 64712C 64712C 64712C 64719A 64719B 64720A 64723C 64723C 64727A 64727A 64749E 64771 64777G 64779A 64779A 7104 7104 9011906786 9046709206
Part # Description Qty Price
Common parts
90119-06786
90467-09206
Linked diagrams
7104
