ZRE212L-AEFDPA (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MZEA12,ZRE212

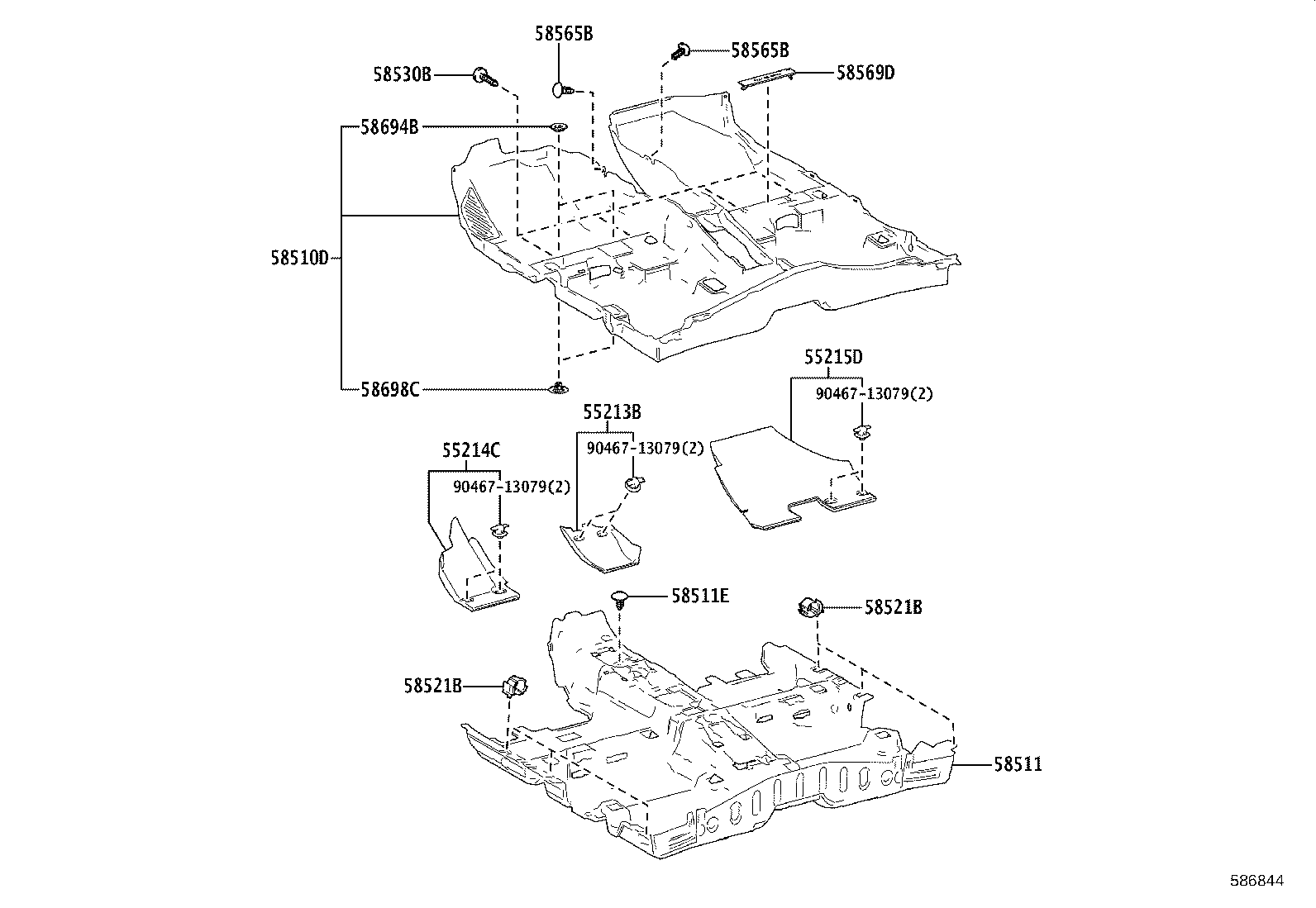

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510D 58511 58511E 58521B 58521B 58530B 58565B 58565B 58569D 58694B 58698C 9046713079 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-47100

MZEA12,ZRE212,ZWE211

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-47060

MZEA12,ZRE212,ZWE211

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-47060

MZEA12,ZRE212,ZWE211

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-12Q20C0

ZRE212..L

BLACK,TRIM0#,1#,2#

 1
58510-12Q20C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
58511 - MAT, FLOOR, FRONT
58511-12730

MZEA12,ZRE212

 1
58511-12740

MZEA12,ZRE212

WITHOUT(COLD AREA SPEC)

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
90467-07042C4

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
58521B - HOOK, FLOOR CARPET
58521-33060

MZEA12,ZRE212,ZWE211

 6
58521B - HOOK, FLOOR CARPET
58521-33060

MZEA12,ZRE212,ZWE211

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 4
90467-0704923

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 4
58565B - CLIP
90467-05164C7

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 2
90467-05164C7

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
58565B - CLIP
90467-05164C7

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 2
90467-05164C7

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-47020C1

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
58569-47020C1

ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

MZEA12,ZRE212,ZWE211

 2
58698C - PLATE, MAT SET, LOWER
58698-78010

MZEA12,ZRE212,ZWE211

 2
Common parts
90467-13079
