ZRE212L-AEFDPA (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE212

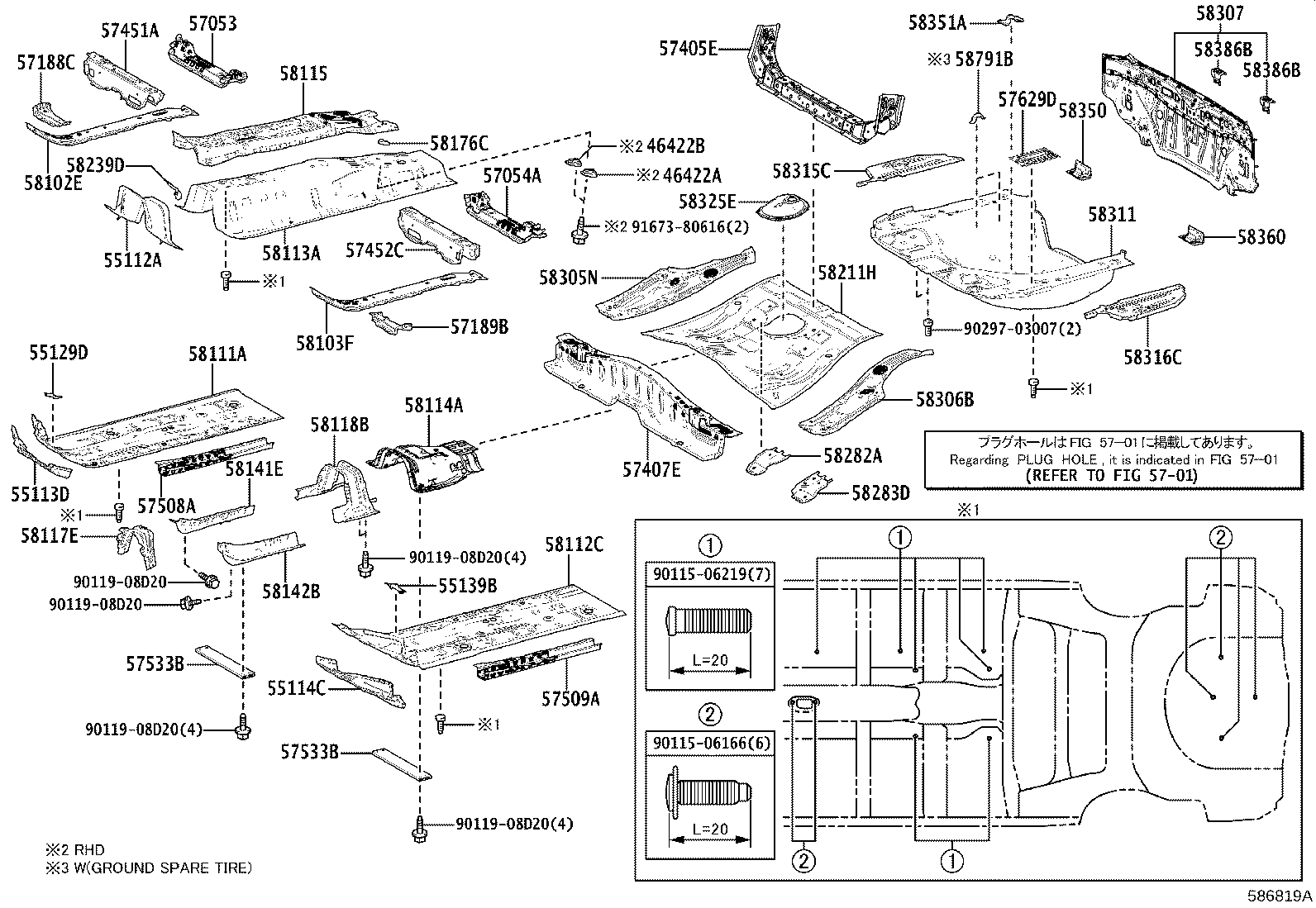

Click highlighted areas on diagram

diagram 46422A 46422A 46422B 46422B 55112A 55113D 55114C 55129D 55139B 5701 57053 57054A 57188C 57189B 57405E 57407E 57451A 57452C 57508A 57509A 57533B 57533B 57629D 57807B 58102E 58103F 58111A 58112C 58113A 58114A 58115 58117E 58118B 58141E 58142B 58176C 58211H 58239D 58282A 58283D 58305N 58306B 58307 58311 58315C 58316C 58325E 58350 58351A 58360 58367B 58368B 58369A 58386B 58386B 9011506166 9011506219 9011908D20 9011908D20 9011908D20 9011908D20 9011908D20 9011908D23 9029703007 9167380616
Part # Description Qty Price
46422A - CAP, PARKING BRAKE CABLE, CASING
46422-12010

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422-12011

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422A - CAP, PARKING BRAKE CABLE, CASING
46422-12010

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422-12011

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422B - CAP, PARKING BRAKE CABLE, CASING
46422-33020

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422-12011

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422B - CAP, PARKING BRAKE CABLE, CASING
46422-33020

ZWE211;MZEA12,ZRE212..S,X,Y

 1
46422-12011

ZWE211;MZEA12,ZRE212..S,X,Y

 1
55112A - PANEL, DASH, NO.2
55112-47040

MZEA12,ZRE212,ZWE211

 1
55113D - PANEL, DASH, LOWER RH
55113-47020

MZEA12,ZRE212,ZWE211

 1
55114C - PANEL, DASH, LOWER LH
55114-47050

MZEA12,ZRE212,ZWE211

 1
55129D - COVER, DASH PANEL HOLE, RH
55129-47021

MZEA12,ZRE212,ZWE211

 1
55139B - COVER, DASH PANEL HOLE, LH
55139-47021

MZEA12,ZRE212,ZWE211

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-12041

MZEA12,ZRE212,ZWE211

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-12061

MZEA12,ZRE212,ZWE211

 1
57188C - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-47030

MZEA12,ZRE212,ZWE211

 1
57189B - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57189-47020

MZEA12,ZRE212,ZWE211

 1
57405E - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-47010

MZEA12,ZRE212,ZWE211

 1
57405-12060

MZEA12,ZRE212,ZWE211

 1
57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-10070

MZEA12,ZRE212

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-47040

MZEA12,ZRE212,ZWE211

 1
57452C - MEMBER, FRONT FLOOR CROSS, LH
57452-47010

MZEA12,ZRE212,ZWE211

 1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-47010

MZEA12,ZRE212,ZWE211

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57508-47010

MZEA12,ZRE212,ZWE211

 1
57533B - BRACE, FRONT FLOOR, CENTER
57533-47030

MZEA12,ZRE212

 2
57533B - BRACE, FRONT FLOOR, CENTER
57533-47030

MZEA12,ZRE212

 2
57629D - PLATE, REAR FLOOR SIDE MEMBER, LH
57629-12070

MZEA12,ZRE212,ZWE211

 1
58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58102-47020

MZEA12,ZRE212,ZWE211

 1
58103F - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58102-47020

MZEA12,ZRE212,ZWE211

 1
58111A - PAN, FRONT FLOOR, RH
58111-47101

MZEA12,ZRE212,ZWE211

 1
58111-47100

MZEA12,ZRE212,ZWE211

 1
58112C - PAN, FRONT FLOOR, LH
58112-47051

MZEA12,ZRE212,ZWE211

 1
58112-47050

MZEA12,ZRE212,ZWE211

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-12070

ZWE211;MZEA12,ZRE212..S,X,Y

 1
58113-12070

ZRE212..D,L

 1
58113-12090

ZWE211;MZEA12,ZRE212..S,X,Y

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58105-12020

MZEA12,ZRE212,ZWE211

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58015-47050

MZEA12,ZRE212,ZWE211

 1
58117E - PANEL, FRONT FLOOR SUB COVER
58117-47040

MZEA12,ZRE212,ZWE211

 1
58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2
58118-47030

MZEA12,ZRE212,ZWE211

 1
58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58141-47011

MZEA12,ZRE212,ZWE211

 1
58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58142-47011

MZEA12,ZRE212,ZWE211

 1
58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2
58176-12020

ZRE212..D,L

 1
58176-12020

ZWE211;MZEA12,ZRE212..S,X,Y

 1
58211H - PAN, CENTER FLOOR
58211-12800

MZEA12,ZRE212

 1
58239D - BRACKET, CABLE CLAMP
58239-12030

MZEA12,ZRE212,ZWE211

 1
58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58282-47050

MZEA12,ZRE212,ZWE211

 1
58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58283-47040

MZEA12,ZRE212,ZWE211

 1
58305N - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58305-12060

MZEA12,ZRE212

 1
58306B - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58306-12040

MZEA12,ZRE212

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-12C20

MZEA12,ZRE212,ZWE211

 1
58311 - PAN, REAR FLOOR
58311-12380

MZEA12,ZRE212,ZWE211

 1
58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH
58315-12090

MZEA12,ZRE212,ZWE211

 1
58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH
58316-12070

MZEA12,ZRE212,ZWE211

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-10031

MZEA12,ZRE212

 1
58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58350-47010

MZEA12,ZRE212,ZWE211

 1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-12070

MZEA12,ZRE212,ZWE211

 1
58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58350-47010

MZEA12,ZRE212,ZWE211

 1
58367B - BRACKET, FUEL TUBE
58367-47020

MZEA12,ZRE212,ZWE211

 1
58368B - BRACKET, FUEL TUBE, NO.2
58368-33010

MZEA12,ZRE212,ZWE211

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-33030

MZEA12,ZRE212

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

MZEA12,ZRE212,ZWE211

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

MZEA12,ZRE212,ZWE211

 2
Common parts
90115-06166
90115-06219
90119-08D20
90119-08D23
90297-03007
91673-80616
Linked diagrams
5701

(1901- )MZEA12,ZRE212

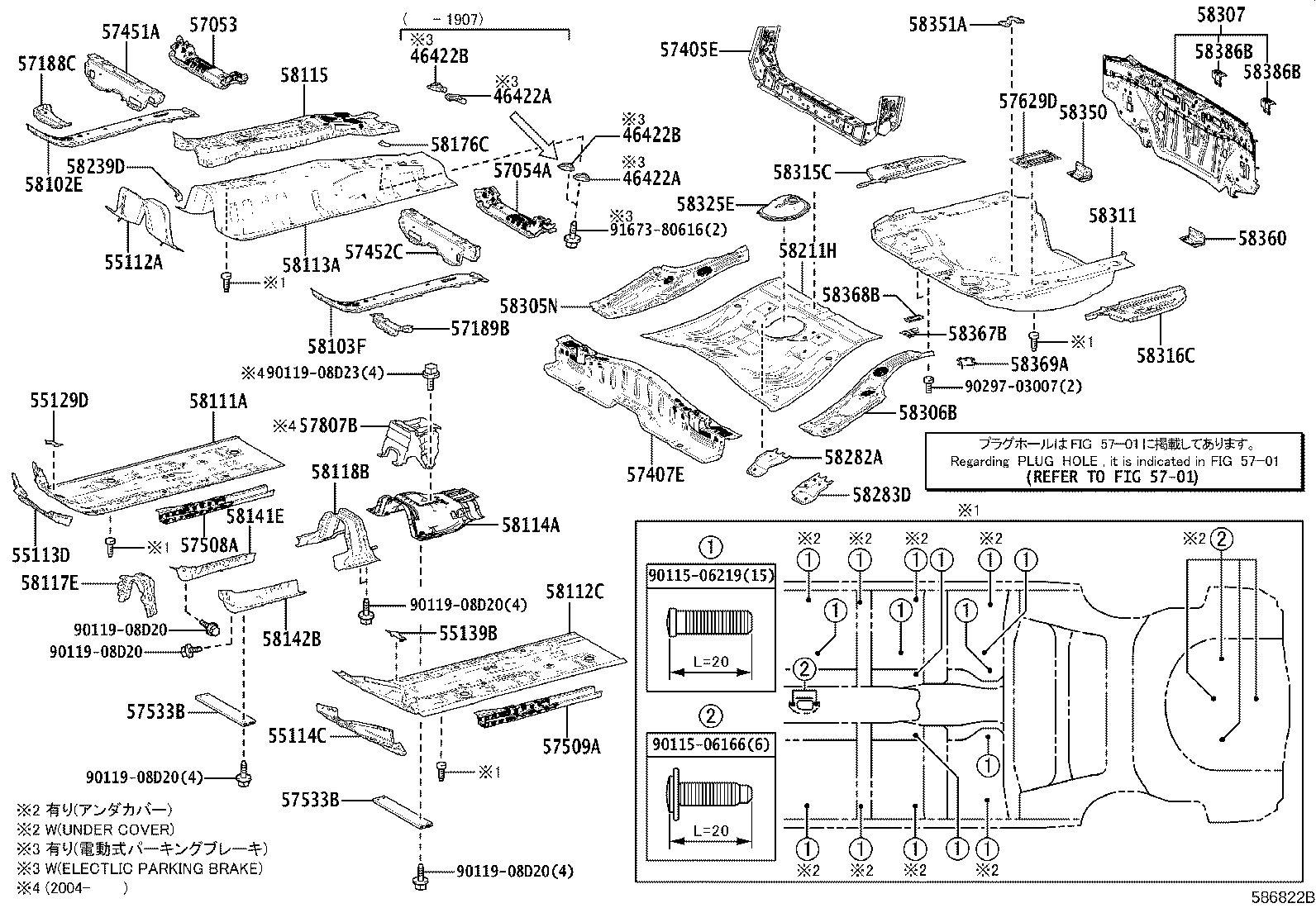

Click highlighted areas on diagram

diagram 46422A 46422B 55112A 55113D 55114C 55129D 55139B 5701 57053 57054A 57188C 57189B 57405E 57407E 57451A 57452C 57508A 57509A 57533B 57533B 57629D 58102E 58103F 58111A 58112C 58113A 58114A 58115 58117E 58118B 58141E 58142B 58176C 58211H 58239D 58282A 58283D 58305N 58306B 58307 58311 58315C 58316C 58325E 58350 58351A 58360 58386B 58386B 58791B 9011506166 9011506219 9011908D20 9011908D20 9011908D20 9011908D20 9011908D20 9029703007 9167380616
Part # Description Qty Price
Common parts
90115-06166
90115-06219
90119-08D20
90297-03007
91673-80616
Linked diagrams
5701
