ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)

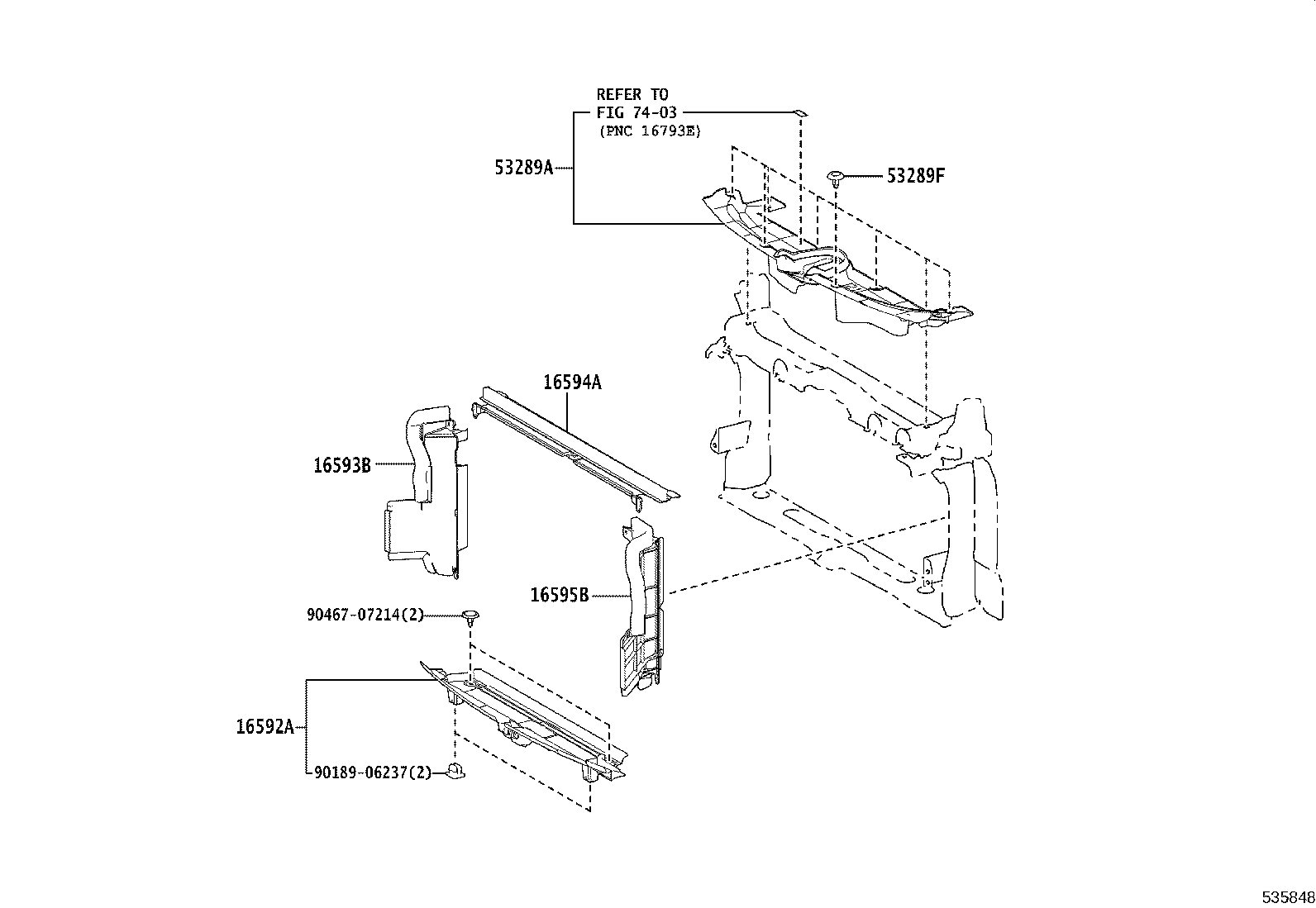

ILLUST NO. 1 OF 3(1901- )ZRE212
AIR GUIDE & RADIATOR SUPPORT COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-37070 |
2ZRFAE..ZRE212 |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-37130 |
2ZRFAE..ZRE212 |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-37040 |
2ZRFAE..ZRE212 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-37130 |
2ZRFAE..ZRE212 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-12090 |
MZEA12,ZRE212 GUAM,SAIPAN SPEC |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 AMERICAN SAMOA SPEC |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 HAWAII SPEC |
1 | ||
| 53289-12100 |
MZEA12,ZRE212 |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 PUERTO RICO SPEC |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 |
1 | ||
| 53289F - CLIP(FOR RADIATOR SUPPORT OPENING COVER) | ||||
| 90467-07217 |
MZEA12,ZRE212 |
8 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 2 OF 3(1901- )
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-47030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-47050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-12050 |
ZRE212,ZWE211 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-47903 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-47903 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-12340 |
ZRE212,ZWE211 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-12580 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-12190 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53213-12220 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-12180 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53214-12150 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-12150 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53248A - BRACKET, RADIATOR SHUTTER, RH | ||||
| 53248-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53249A - BRACKET, RADIATOR SHUTTER, LH | ||||
| 53249-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 90541-15037 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 90541-15037 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-12A70 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-12A80 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-47901 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-47901 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-47060 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-47070 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-47031 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-12140 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-12100 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH | ||||
| 53743-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-12140 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 4708 | ||||
ILLUST NO. 3 OF 3(1901- )
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-12E10 |
MZEA12,ZRE212..6F |
1 | ||
| 55130 - PLATE ASSY, FENDER APRON SET, RH | ||||
| 55130-47011 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55130-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55130 - PLATE ASSY, FENDER APRON SET, RH | ||||
| 55130-47011 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55130-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-47040 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-47070 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55140 - PLATE ASSY,FENDER APRON SET, LH | ||||
| 55140-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55140-47011 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55140 - PLATE ASSY,FENDER APRON SET, LH | ||||
| 55140-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55140-47011 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-47260 |
ZRE212..D,L |
1 | ||
| 55210-12680 |
ZWE211;MZEA12,ZRE212..S,X,Y |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
MZEA12,ZRE212,ZWE211 |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-47090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-12030 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MZEA12,ZRE212,ZWE211 |
3 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-12010 |
MZEA12,ZRE212,ZWE211..D,L,S |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MZEA12,ZRE212,ZWE211 |
3 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90119-08C89 | ||||
| 90182-06012 | ||||
ILLUST NO. 1 OF 3(1901- )MZEA12,ZRE212
AIR GUIDE & RADIATOR SUPPORT COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-37070 |
2ZRFAE..ZRE212 |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-37130 |
2ZRFAE..ZRE212 |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-37040 |
2ZRFAE..ZRE212 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-37130 |
2ZRFAE..ZRE212 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-12090 |
MZEA12,ZRE212 GUAM,SAIPAN SPEC |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 AMERICAN SAMOA SPEC |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 HAWAII SPEC |
1 | ||
| 53289-12100 |
MZEA12,ZRE212 |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 PUERTO RICO SPEC |
1 | ||
| 53289-12090 |
MZEA12,ZRE212 |
1 | ||
| 53289F - CLIP(FOR RADIATOR SUPPORT OPENING COVER) | ||||
| 90467-07217 |
MZEA12,ZRE212 |
8 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 2 OF 3(1901- )
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-47030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-47050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-12050 |
ZRE212,ZWE211 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-47903 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-47903 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-12340 |
ZRE212,ZWE211 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-12580 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-12190 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53213-12220 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-12180 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53214-12150 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-12150 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53248A - BRACKET, RADIATOR SHUTTER, RH | ||||
| 53248-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53249A - BRACKET, RADIATOR SHUTTER, LH | ||||
| 53249-47010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 90541-15037 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 90541-15037 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-12A70 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-12A80 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-47901 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-47901 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-47060 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-47070 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-47031 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-12140 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-12100 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH | ||||
| 53743-47020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-12140 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-12090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 4708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
