ZRE212L-AEFDPA (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE212..D,L

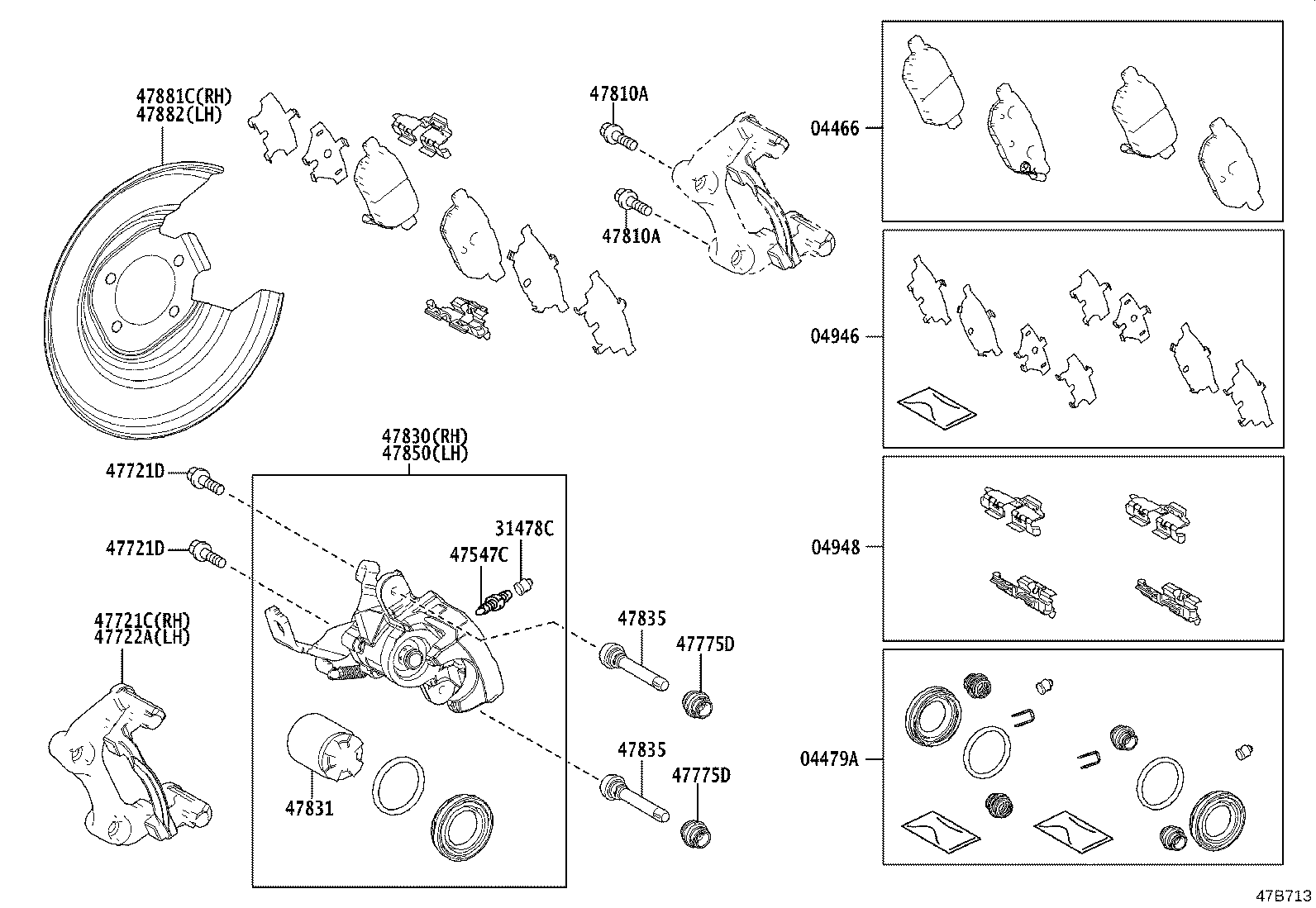

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47721C 47721D 47721D 47722A 47775D 47775D 47810A 47810A 47830 47831 47835 47835 47850 47881C 47882
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-12162

ZWE211;MZEA12,ZRE212..S,X,Y

MARK NBK D6360-FF

 1
04466-47110

ZRE212..D,L

MARK NBK 478-XW5P

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-10091

ZWE211;MZEA12,ZRE212..S,X,Y

 1
04479-12260

ZRE212..D,L

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-12130

ZWE211;MZEA12,ZRE212..S,X,Y

 1
04946-47070

ZRE212..D,L

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12060

ZRE212..D,L

 1
04948-12071

ZWE211;MZEA12,ZRE212..S,X,Y

 1
04948-12070

ZWE211;MZEA12,ZRE212..S,X,Y

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

ZWE211;MZEA12,ZRE212..S,X,Y

 2
31478-52010

ZRE212..D,L

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ZWE211;MZEA12,ZRE212..S,X,Y

 2
47847-52050

ZRE212..D,L

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-47110

ZRE212..D,L

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA102

ZRE212..D,L

 4
90015-AA603

ZWE211;MZEA12,ZRE212..S,X,Y

*8-1.00PX23-12.5

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA102

ZRE212..D,L

 4
90015-AA603

ZWE211;MZEA12,ZRE212..S,X,Y

*8-1.00PX23-12.5

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-47110

ZRE212..D,L

 1
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZRE212..D,L

 4
47875-33270

ZWE211;MZEA12,ZRE212..S,X,Y

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZRE212..D,L

 4
47875-33270

ZWE211;MZEA12,ZRE212..S,X,Y

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174

MZEA12,ZRE212,ZWE211

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174

MZEA12,ZRE212,ZWE211

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-12280

ZWE211;MZEA12,ZRE212..S,X,Y

 1
47830-47111

ZRE212..D,L

 1
47831 - PISTON, REAR DISC BRAKE
47831-52050

ZRE212..D,L

 2
47831-10030

ZWE211;MZEA12,ZRE212..S,X,Y

 2
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZRE212..D,L

 4
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZRE212..D,L

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-47111

ZRE212..D,L

 1
47850-12280

ZWE211;MZEA12,ZRE212..S,X,Y

 1
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-12130

ZWE211;MZEA12,ZRE212..S,X,Y

 1
47881-47010

ZRE212..D,L

 1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-12130

ZWE211;MZEA12,ZRE212..S,X,Y

 1
47882-47010

ZRE212..D,L

 1
