ZRE212L-AEFDPA (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MZEA12,ZRE212

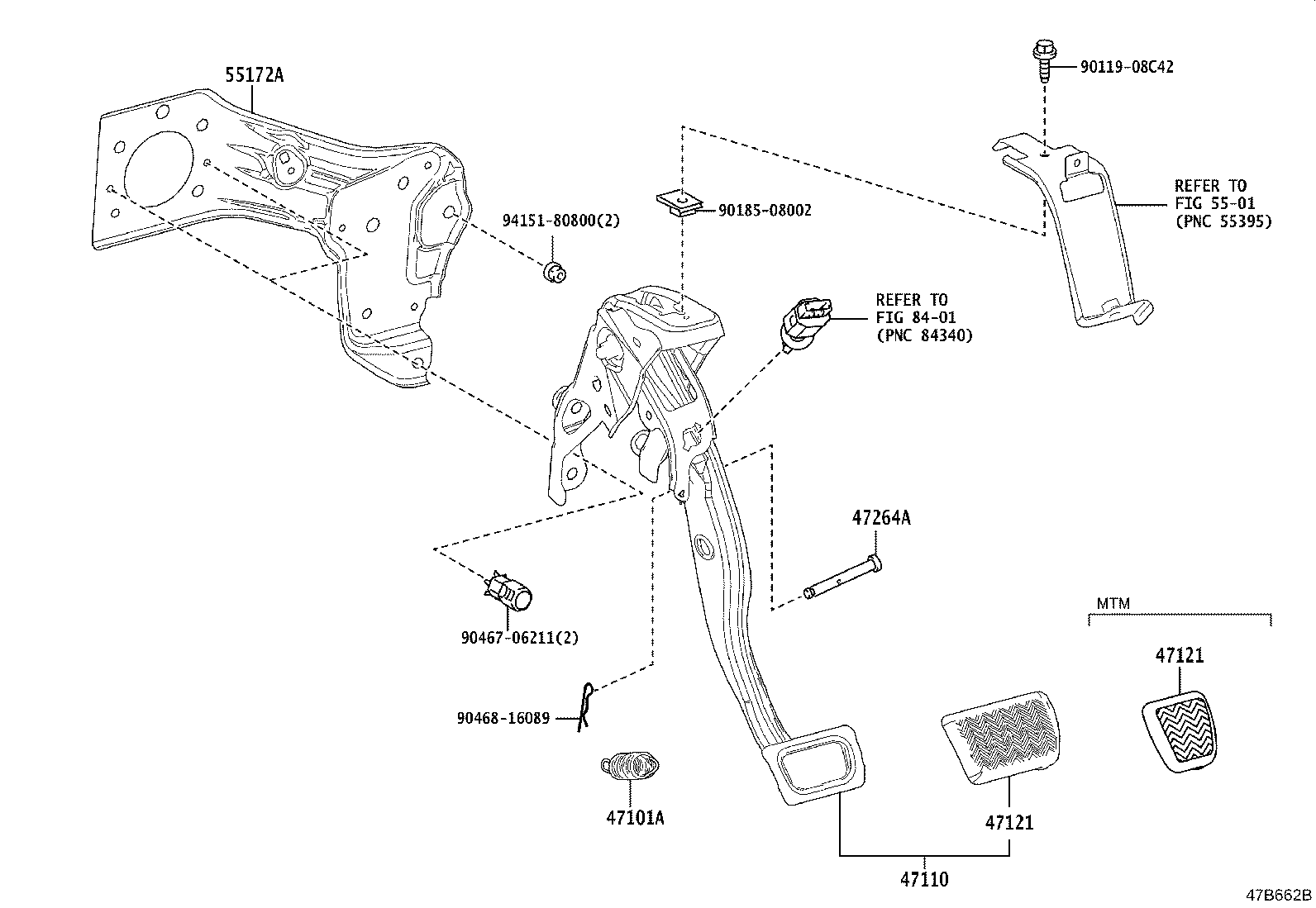

Click highlighted areas on diagram

diagram 47101A 47110 47121 47121 47264A 5501 55172A 8401 9011908C42 9018508002 9046706211 9046816089 9415180800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15010

MZEA12,ZRE212

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-12400

MZEA12,ZRE212..6F

 1
47121 - PAD, BRAKE PEDAL
47121-12040

MZEA12,ZRE212..6F

 1
47121 - PAD, BRAKE PEDAL
47121-12040

MZEA12,ZRE212..6F

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

MZEA12,ZRE212..6F

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-12160

MZEA12,ZRE212,ZWE211

 1
Common parts
90119-08C42
90185-08002
90467-06211
90468-16089
94151-80800
Linked diagrams
5501
8401
