ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )ZRE212..D,L

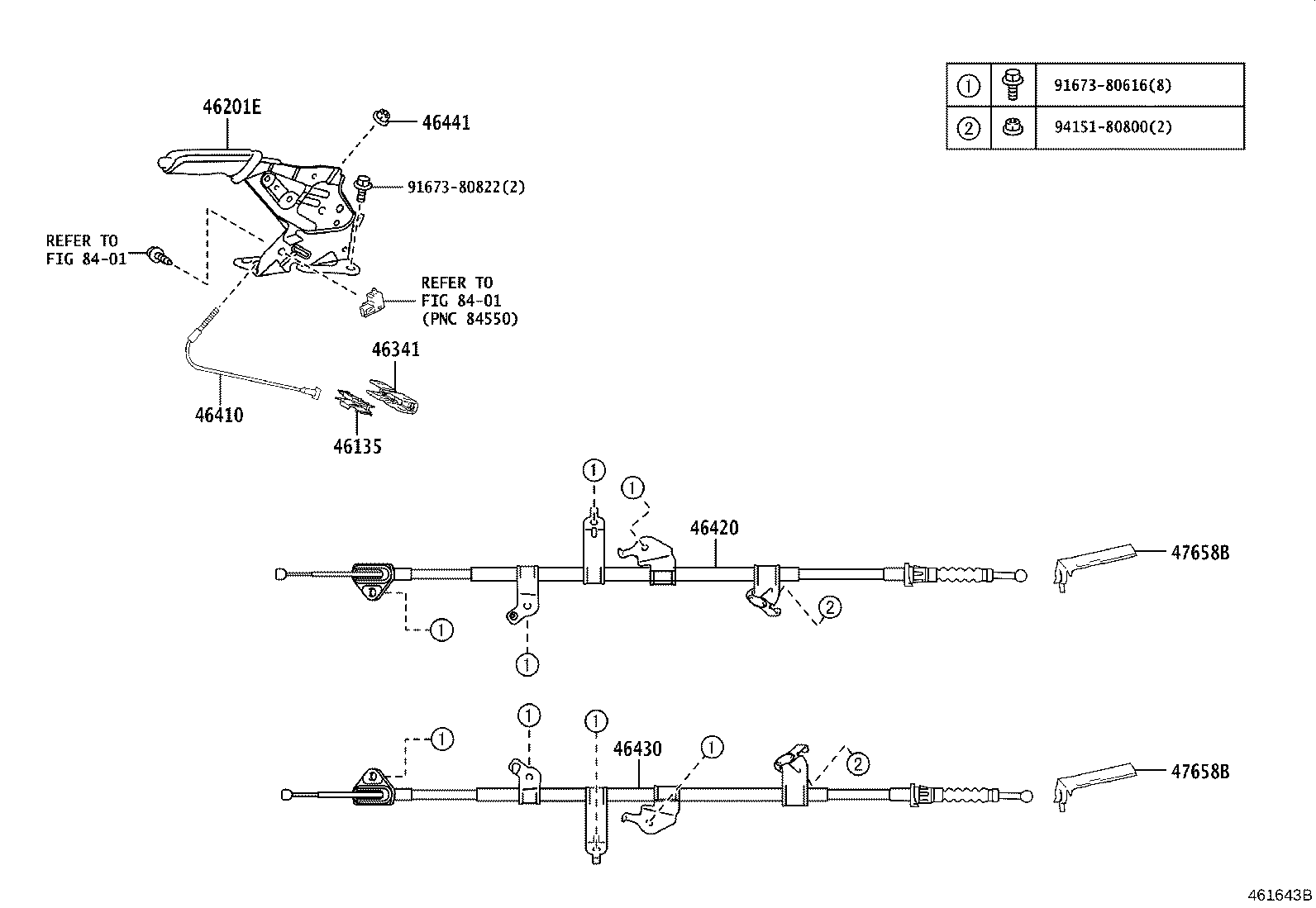

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-12010 |
ZRE212..D,L |
1 | ||
| 46135-12010 |
ZRE212..L LE PACKAGE |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12560C0 |
ZRE212..L CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&PARKING BRAKE-ELECTRIC PARKING BRAKE,BLACK,TRIM0#,1#,2# |
1 | ||
| 46201-12560C0 |
ZRE212..L LE PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 46201-12560C0 |
ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 46201-12560C0 |
ZRE212..L BLACK,TRIM0#,1#,2# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12040 |
ZRE212..D,L |
1 | ||
| 46341-12040 |
ZRE212..L LE PACKAGE |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12340 |
ZRE212..L LE PACKAGE |
1 | ||
| 46410-12340 |
ZRE212..D,L |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-47121 |
ZRE212..L LE PACKAGE |
1 | ||
| 46420-47121 |
ZRE212..D,L |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-47121 |
ZRE212..D,L |
1 | ||
| 46430-47121 |
ZRE212..L LE PACKAGE |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90177-06003 |
ZRE212..L LE PACKAGE |
1 | ||
| 90177-06003 |
ZRE212..D,L |
1 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-47010 |
ZRE212..D,L |
2 | ||
| 47658-47010 |
ZRE212..L LE PACKAGE |
2 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-47010 |
ZRE212..D,L |
2 | ||
| 47658-47010 |
ZRE212..L LE PACKAGE |
2 | ||
| Common parts | ||||
| 91673-80616 | ||||
| 91673-80822 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
