ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )ZRE212..6F

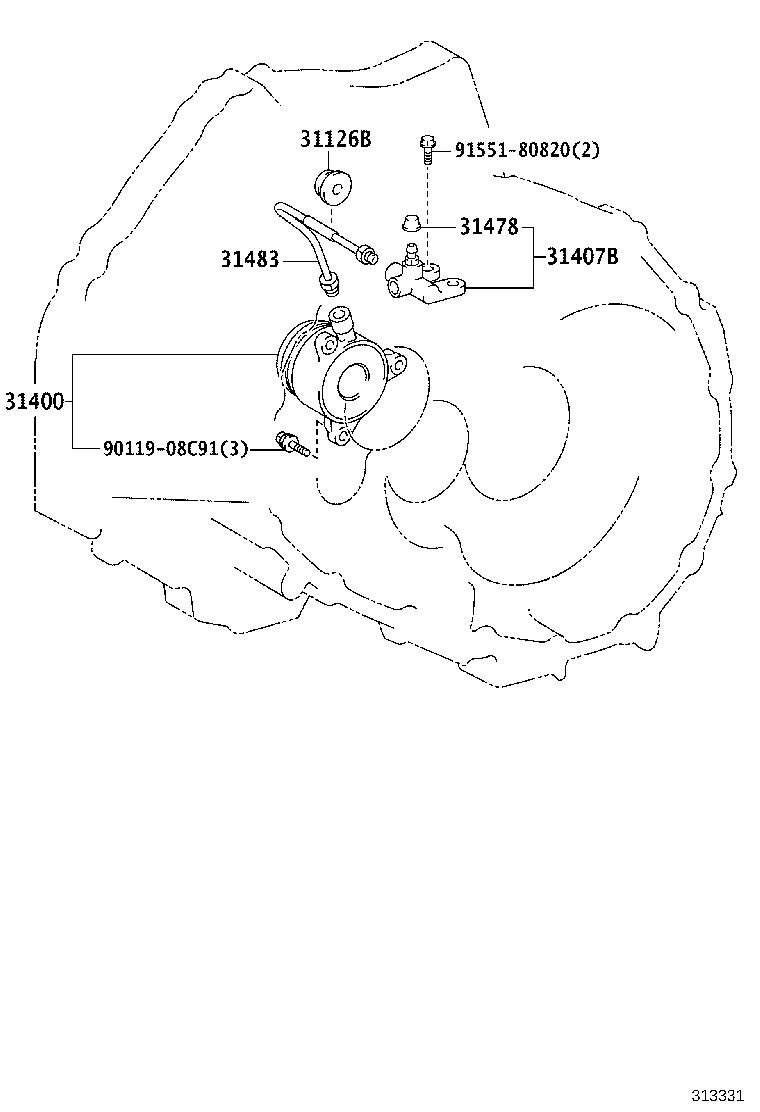

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126B - BOOT, CLUTCH TUBE | ||||
| 31126-20090 |
ZRE212..6F |
1 | ||
| 31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING | ||||
| 31400-59025 |
ZRE212..6F |
1 | ||
| 31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE | ||||
| 31407-52010 |
ZRE212..6F |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
MZEA12,ZRE212..6F |
1 | ||
| 31483 - TUBE, BLEEDER CLUTCH RELEASE | ||||
| 31482-52090 |
ZRE212..6F |
1 | ||
| Common parts | ||||
| 90119-08C91 | ||||
| 91551-80820 | ||||
(1901- )ZRE212..6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126B - BOOT, CLUTCH TUBE | ||||
| 31126-20090 |
ZRE212..6F |
1 | ||
| 31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING | ||||
| 31400-59025 |
ZRE212..6F |
1 | ||
| 31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE | ||||
| 31407-52010 |
ZRE212..6F |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
MZEA12,ZRE212..6F |
1 | ||
| 31483 - TUBE, BLEEDER CLUTCH RELEASE | ||||
| 31482-52090 |
ZRE212..6F |
1 | ||
| Common parts | ||||
| 90119-08C91 | ||||
| 91551-80820 | ||||
