ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)

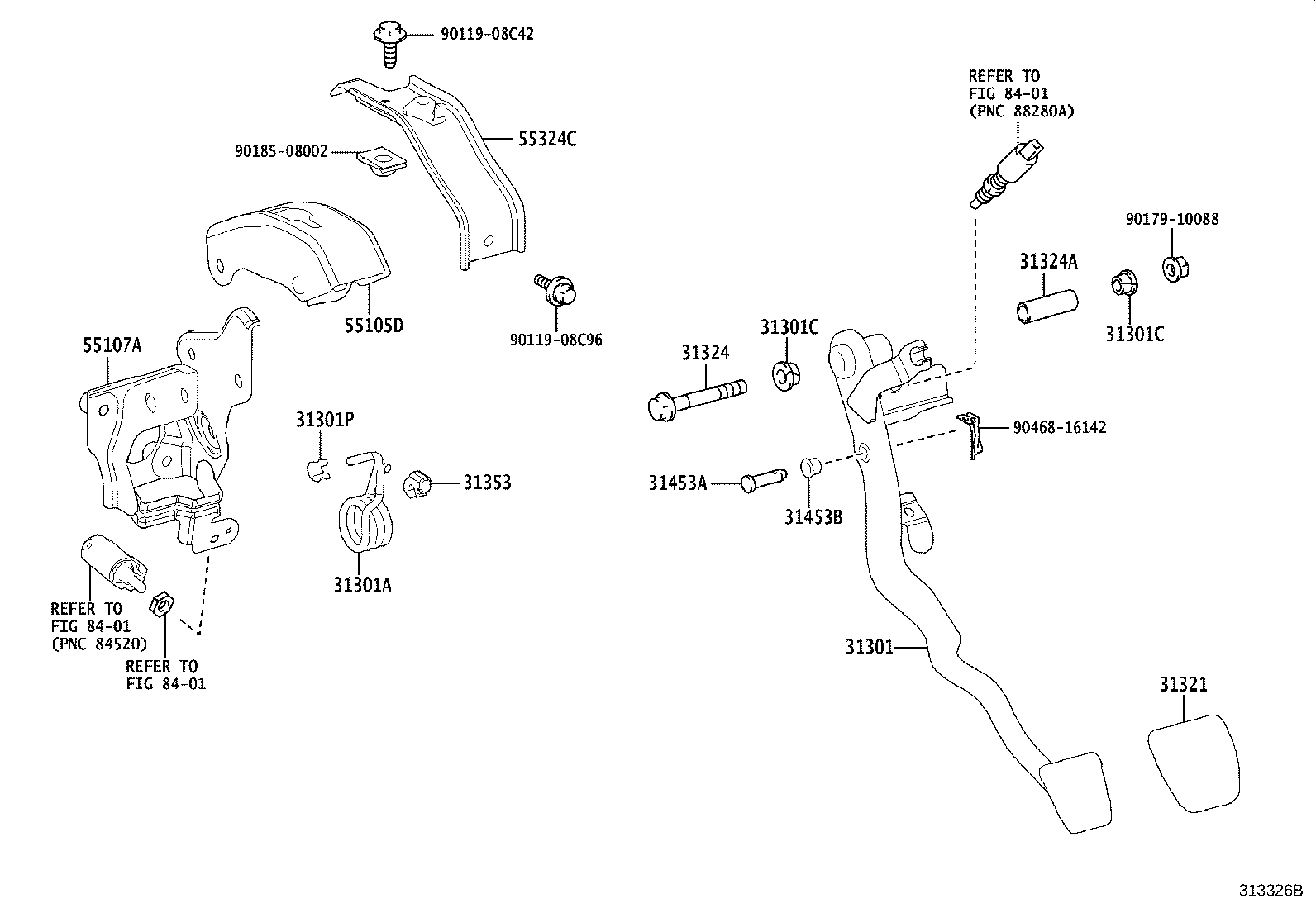

ILLUST NO. 1 OF 2(1901- )ZRE212..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-02610 |
ZRE212..6F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03068 |
MZEA12,ZRE212..6F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
MZEA12,ZRE212..6F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
MZEA12,ZRE212..6F |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
MZEA12,ZRE212..6F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
MZEA12,ZRE212..6F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90105-10524 |
MZEA12,ZRE212..6F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
MZEA12,ZRE212..6F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
MZEA12,ZRE212..6F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08084 |
MZEA12,ZRE212..6F L=28.3 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
MZEA12,ZRE212..6F |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-02100 |
ZRE212..6F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-02520 |
ZRE212..6F |
1 | ||
| 55324C - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-12260 |
MZEA12,ZRE212..6F |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90119-08C96 | ||||
| 90179-10088 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||

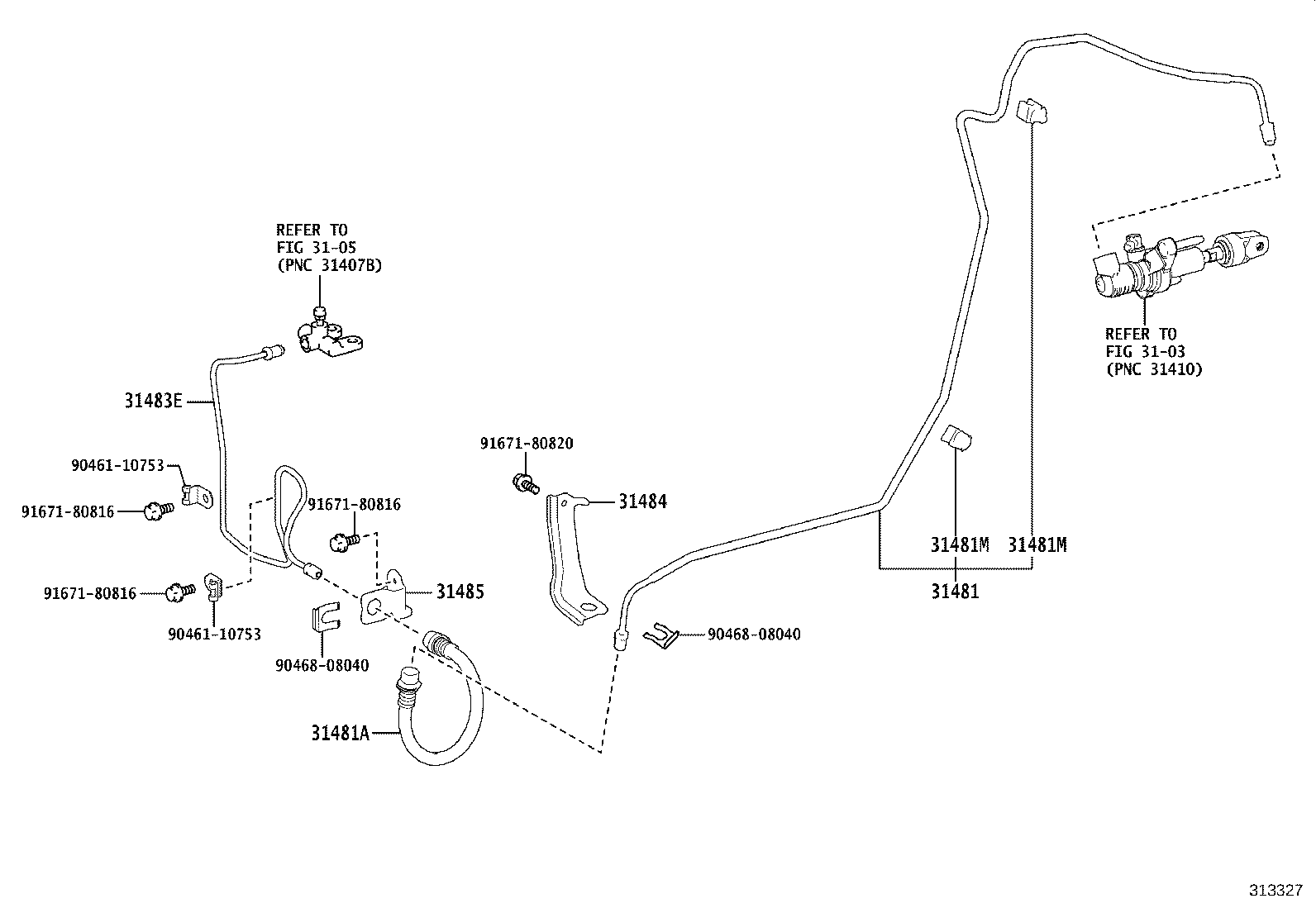

ILLUST NO. 2 OF 2(1901- )ZRE212..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12440 |
MZEA12,ZRE212..6F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02H31 |
MZEA12,ZRE212..6F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01E01 |
MZEA12,ZRE212..6F |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01E01 |
MZEA12,ZRE212..6F |
2 | ||
| 31483E - TUBE, BLEEDER CLUTCH RELEASE | ||||
| 31483-12150 |
ZRE212..6F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-10060 |
MZEA12,ZRE212..6F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12440 |
ZRE212..6F |
1 | ||
| Common parts | ||||
| 90461-10753 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
ILLUST NO. 1 OF 2(1901- )ZRE212..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-02610 |
ZRE212..6F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03068 |
MZEA12,ZRE212..6F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
MZEA12,ZRE212..6F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
MZEA12,ZRE212..6F |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
MZEA12,ZRE212..6F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
MZEA12,ZRE212..6F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90105-10524 |
MZEA12,ZRE212..6F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
MZEA12,ZRE212..6F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
MZEA12,ZRE212..6F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08084 |
MZEA12,ZRE212..6F L=28.3 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
MZEA12,ZRE212..6F |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-02100 |
ZRE212..6F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-02520 |
ZRE212..6F |
1 | ||
| 55324C - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-12260 |
MZEA12,ZRE212..6F |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90119-08C96 | ||||
| 90179-10088 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1901- )ZRE212..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12440 |
MZEA12,ZRE212..6F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02H31 |
MZEA12,ZRE212..6F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01E01 |
MZEA12,ZRE212..6F |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01E01 |
MZEA12,ZRE212..6F |
2 | ||
| 31483E - TUBE, BLEEDER CLUTCH RELEASE | ||||
| 31483-12150 |
ZRE212..6F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-10060 |
MZEA12,ZRE212..6F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12440 |
ZRE212..6F |
1 | ||
| Common parts | ||||
| 90461-10753 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
