ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )2ZRFAE

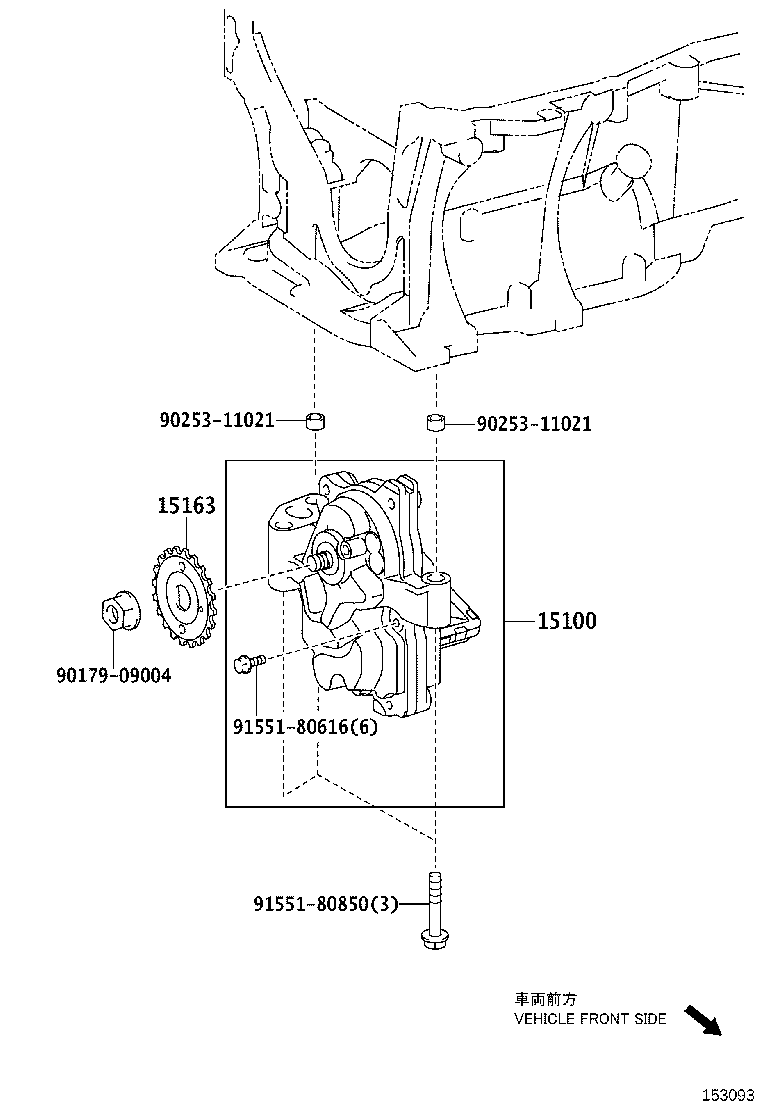

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-37021 |
2ZRFAE..ZRE212 |
1 | ||
| 15163 - GEAR, OIL PUMP DRIVE SHAFT | ||||
| 15163-28010 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90179-09004 | ||||
| 90253-11021 | ||||
| 91551-80616 | ||||
| 91551-80850 | ||||
(1901- )2ZRFAE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-37021 |
2ZRFAE..ZRE212 |
1 | ||
| 15163 - GEAR, OIL PUMP DRIVE SHAFT | ||||
| 15163-28010 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90179-09004 | ||||
| 90253-11021 | ||||
| 91551-80616 | ||||
| 91551-80850 | ||||
