ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

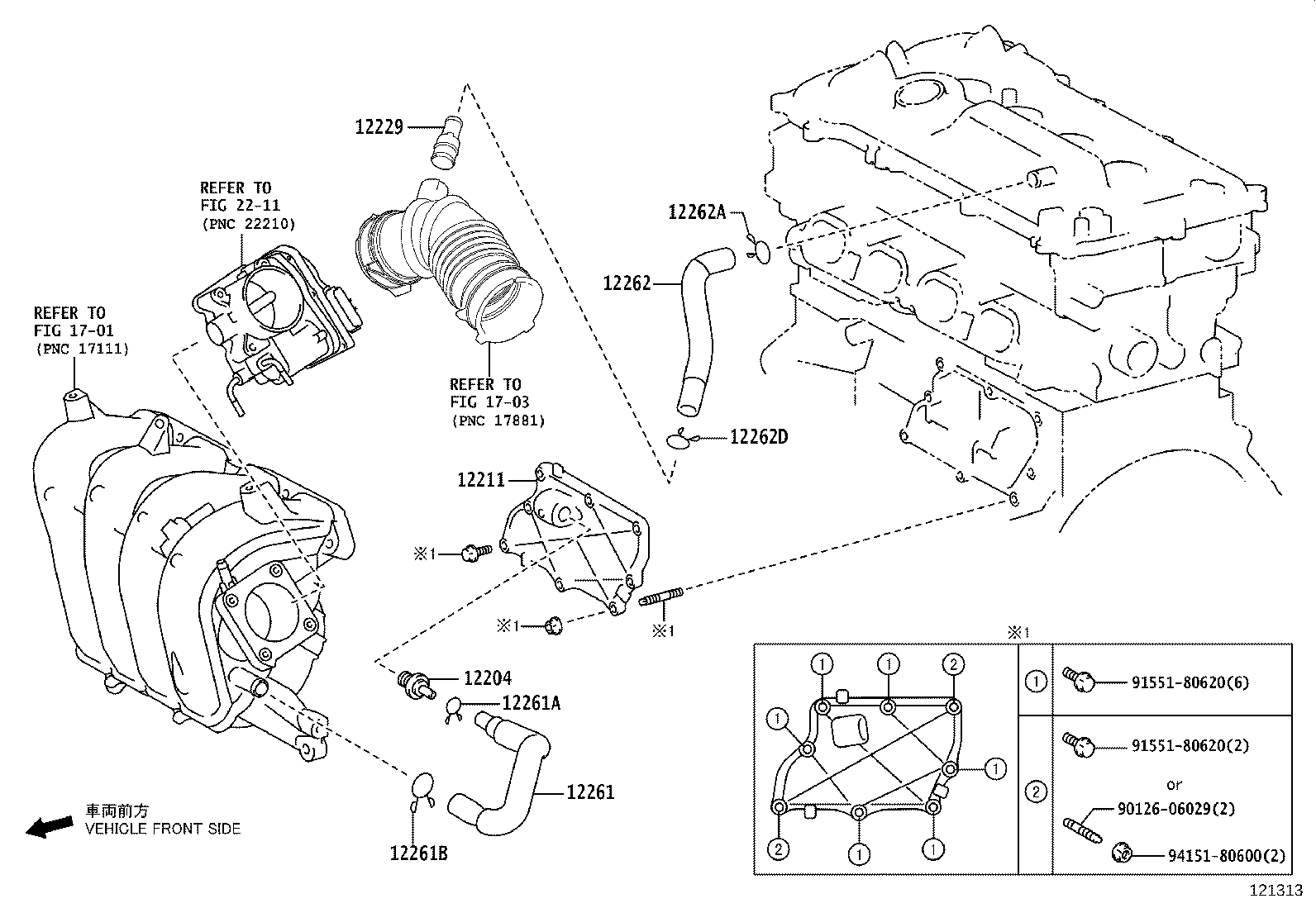

(1901- )2ZRFAE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-37010 |
2ZRFAE..ZRE212 |
1 | ||
| 12211 - CASE, VENTILATION, NO.1 | ||||
| 12211-37010 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 12229 - PIPE, VENTILATION | ||||
| 12229-21010 |
2ZRFAE..ZRE212 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-37040 |
2ZRFAE..ZRE212 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90466-22005 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-37020 |
2ZRFAE..ZRE212 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 12262D - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 91551-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
| 2211 | ||||

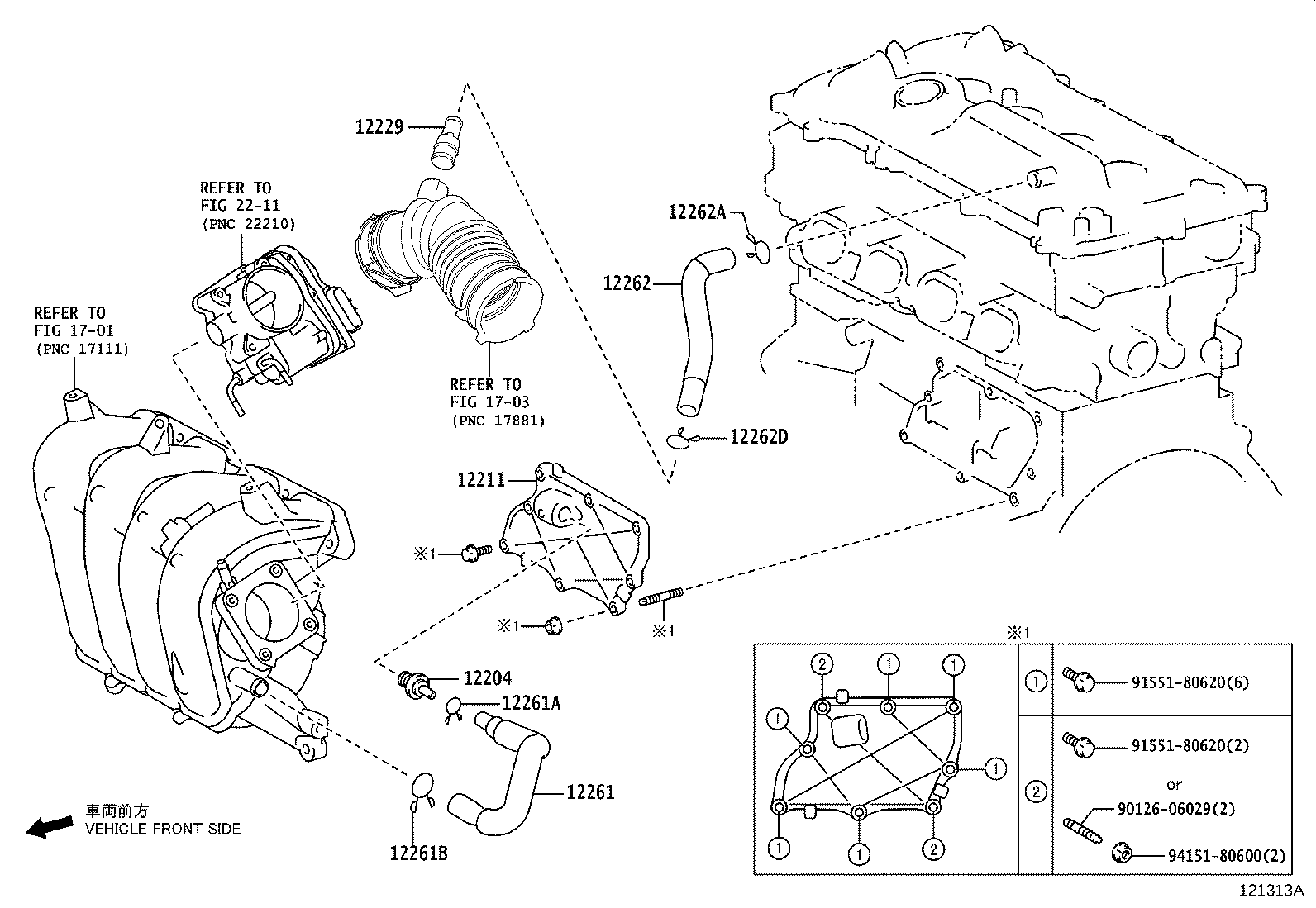

(1901- )2ZRFAE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90126-06029 | ||||
| 91551-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
| 2211 | ||||
