ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

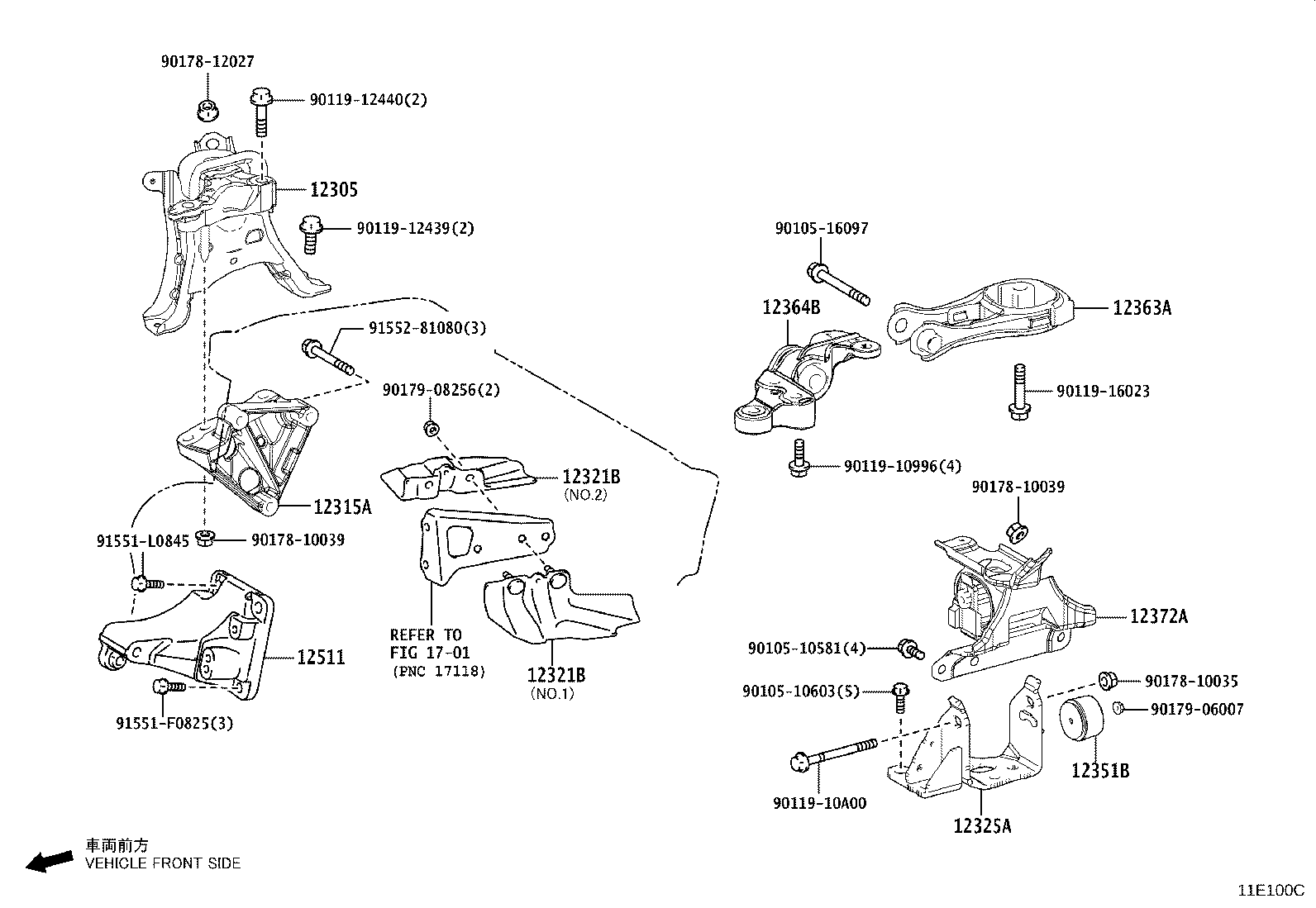

(1901- )2ZRFAE..6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37390 |
2ZRFAE..ZRE212 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37060 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
2ZRFAE..ZRE212 NO.1 |
1 | ||
| 43498-12051 |
2ZRFAE..ZRE212 NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
2ZRFAE..ZRE212 NO.1 |
1 | ||
| 43498-12051 |
2ZRFAE..ZRE212 NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-47150 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-37070 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-37040 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12364B - ROD, ENGINE MOVING CONTROL, NO.2 | ||||
| 12364-37060 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T610 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-37010 |
2ZRFAE..ZRE212 |
1 | ||
| Common parts | ||||
| 90105-10581 | ||||
| 90105-10603 | ||||
| 90105-16097 | ||||
| 90119-10996 | ||||
| 90119-10A00 | ||||
| 90119-12439 | ||||
| 90119-12440 | ||||
| 90119-16023 | ||||
| 90178-10035 | ||||
| 90178-10039 | ||||
| 90178-12027 | ||||
| 90179-06007 | ||||
| 90179-08256 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(1901- )2ZRFAE..6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37390 |
2ZRFAE..ZRE212 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37060 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
2ZRFAE..ZRE212 NO.1 |
1 | ||
| 43498-12051 |
2ZRFAE..ZRE212 NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
2ZRFAE..ZRE212 NO.1 |
1 | ||
| 43498-12051 |
2ZRFAE..ZRE212 NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-47150 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-37070 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-37040 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12364B - ROD, ENGINE MOVING CONTROL, NO.2 | ||||
| 12364-37060 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T610 |
2ZRFAE..ZRE212..6F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-37010 |
2ZRFAE..ZRE212 |
1 | ||
| Common parts | ||||
| 90105-10581 | ||||
| 90105-10603 | ||||
| 90105-16097 | ||||
| 90119-10996 | ||||
| 90119-10A00 | ||||
| 90119-12439 | ||||
| 90119-12440 | ||||
| 90119-16023 | ||||
| 90178-10035 | ||||
| 90178-10039 | ||||
| 90178-12027 | ||||
| 90179-06007 | ||||
| 90179-08256 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
