ZRE212L-AEFDPA (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

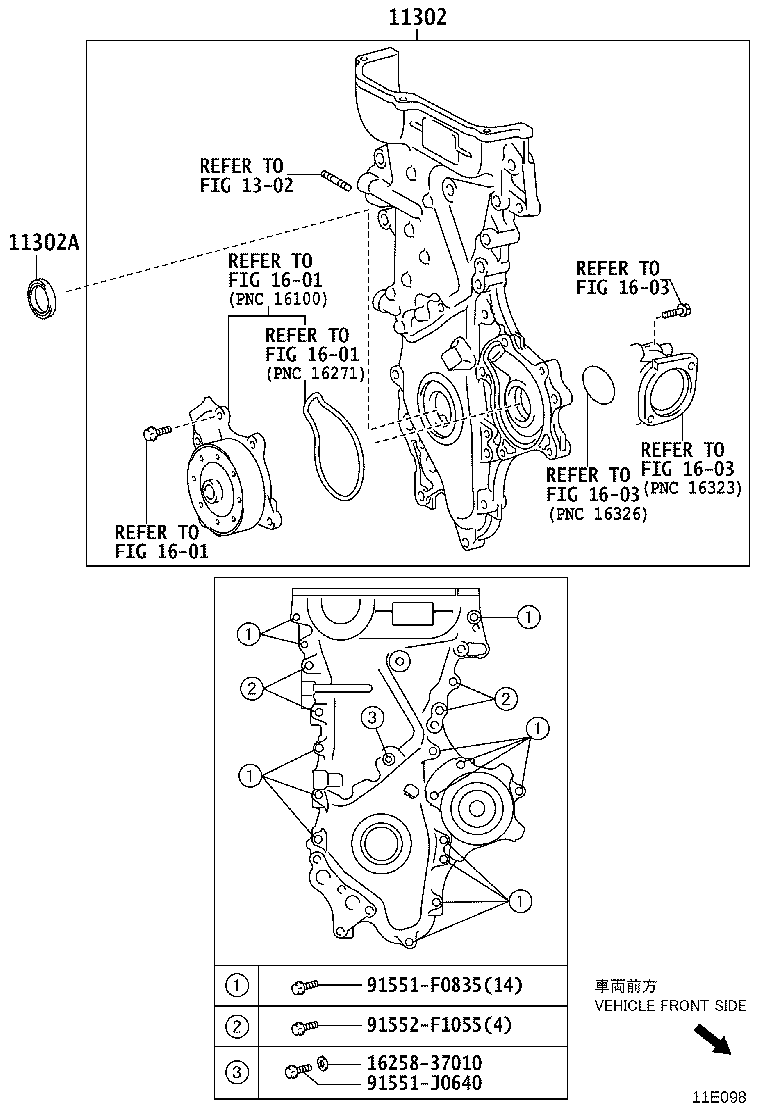

(1901- )2ZRFAE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-37100 |
2ZRFAE..ZRE212 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38096 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 16258-37010 | ||||
| 91551-F0835 | ||||
| 91551-J0640 | ||||
| 91552-F1055 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1601 | ||||
| 1603 | ||||
(1901- )2ZRFAE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-37100 |
2ZRFAE..ZRE212 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38096 |
2ZR#..ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 16258-37010 | ||||
| 91551-F0835 | ||||
| 91551-J0640 | ||||
| 91552-F1055 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1601 | ||||
| 1603 | ||||
