Toyota Corolla sed (jpp) ZRE212 CYLINDER HEAD

Part #	Description	Period	Qty

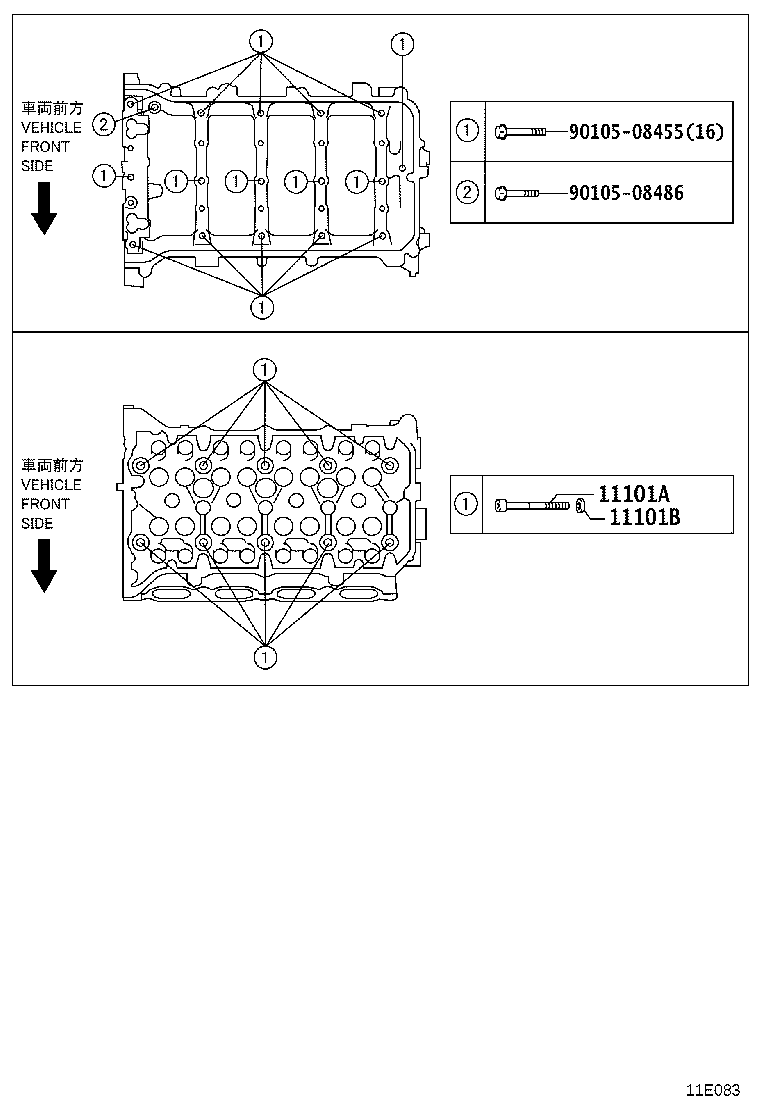

11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02166	2ZR#..ZRE212,ZWE211	01/2019 - 04/2020	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	2ZR#..ZRE212,ZWE211	01/2019 - 04/2020	10
Common parts
90105-08455
90105-08486

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-39675	2ZRFAE..ZRE212	01/2019 - 04/2020	1
11101E - SENSOR, CAM POSITION
90919-05060	2ZRFAE..ZRE212	01/2019 - 04/2020	3
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37010	2ZRFAE..ZRE212 NO.1	01/2019 - 04/2020	1
15330-37020	2ZRFAE..ZRE212 NO.2	01/2019 - 04/2020	1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37010	2ZRFAE..ZRE212 NO.1	01/2019 - 04/2020	1
15330-37020	2ZRFAE..ZRE212 NO.2	01/2019 - 04/2020	1
11103 - HOUSING SUB-ASSY, CAMSHAFT
11107-37042	2ZRFAE..ZRE212	01/2019 - 04/2020	1
11114A - PIN, STRAIGHT
90250-06001	2ZRFAE..ZRE212 L=14,OD=6	01/2019 - 04/2020	3
11115 - GASKET, CYLINDER HEAD
11115-37061	2ZRFAE..ZRE212	01/2019 - 04/2020	1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002	2ZR#..ZRE212,ZWE211	01/2019 - 04/2020	3
11117H - GASKET(FOR WATER HOLE)
90430-20004	2ZR#..ZRE212,ZWE211	01/2019 - 04/2020	3
11122 - BUSH, INTAKE VALVE GUIDE
11123-31050	2ZR#..ZRE212,ZWE211 O/S 0.05	01/2019 - 04/2019	8
11122-31050	2ZR#..ZRE212,ZWE211 STD	01/2019 - 04/2019	8
11123-31090	2ZR#..ZRE212,ZWE211 O/S 0.05	04/2019 - 04/2020	8
11122-31090	2ZR#..ZRE212,ZWE211 STD	04/2019 - 04/2020	8
11126 - BUSH, EXHAUST VALVE GUIDE
11127-31030	2ZR#..ZRE212,ZWE211 O/S 0.05	01/2019 - 04/2019	8
11126-31030	2ZR#..ZRE212,ZWE211 STD	01/2019 - 04/2019	8
11127-31040	2ZR#..ZRE212,ZWE211 O/S 0.05	04/2019 - 04/2020	8
11126-31040	2ZR#..ZRE212,ZWE211 STD	04/2019 - 04/2020	8
11131 - SEAT, INTAKE VALVE
11131-37040	2ZRFAE..ZRE212 STD	01/2019 - 04/2020	8
11132-37040	2ZRFAE..ZRE212 O/S 0.03	01/2019 - 04/2020	8
11135 - SEAT, EXHAUST VALVE
11135-37020	2ZR#..ZRE212,ZWE211 STD	01/2019 - 04/2020	8
11136-37040	2ZRFAE..ZRE212 O/S 0.03	01/2019 - 04/2020	8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11006	2ZRFAE..ZRE212 L=10,OD=8.5	01/2019 - 04/2020	2
11155A - PIN, RING W/HEAD
90253-12002	2ZR#..ZRE212,ZWE211	01/2019 - 04/2020	2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-37010	2ZRFAE..ZRE212	01/2019 - 04/2020	2
11186B - GASKET, CAMSHAFT HOUSING REAR COVER
11186-37010	2ZRFAE..ZRE212	01/2019 - 04/2020	1
11193 - GASKET, SPARK PLUG TUBE
11193-37020	2ZRFAE..ZRE212	01/2019 - 04/2020	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-37070	2ZRFAE..ZRE212	01/2019 - 04/2020	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
16258-37010	2ZRFAE..ZRE212 TYPE B:REFER ILLUST.	01/2019 - 04/2020	1
90210-06013	2ZRFAE..ZRE212 TYPE A:REFER ILLUST.	01/2019 - 04/2020	1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80670	2ZRFAE..ZRE212	01/2019 - 04/2020	1
11213 - GASKET, CYLINDER HEAD COVER
11213-37021	2ZRFAE..ZRE212	01/2019 - 04/2020	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-31010	2ZRFAE..ZRE212	01/2019 - 04/2020	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001	2ZR#..ZRE212,ZWE211	01/2019 - 04/2020	1
12281A - HANGER, ENGINE, NO.1
12281-37070	2ZR#..ZRE212,ZWE211 TYPE B:REFER ILLUST.	01/2019 - 04/2020	1
12281-37021	2ZR#..ZRE212,ZWE211 TYPE A:REFER ILLUST.	01/2019 - 04/2020	1
12282D - HANGER, ENGINE, NO.2
12282-37011	2ZR#..ZRE212,ZWE211 NO PAINTED	01/2019 - 04/2020	1
12282-37060	2ZR#..ZRE212,ZWE211 PAINTED=WHITE	01/2019 - 04/2020	1
12551A - BRACKET, VACUUM PUMP, NO.1
12551-37010	2ZRFAE..ZRE212	01/2019 - 04/2020	1
Common parts
90099-14137
90430-10024
91551-80616
91551-80625
91551-80825
91552-81050
91671-80616
96721-24015
Linked diagrams
1302
2211

ZRE212L-AEFDPA (2019)

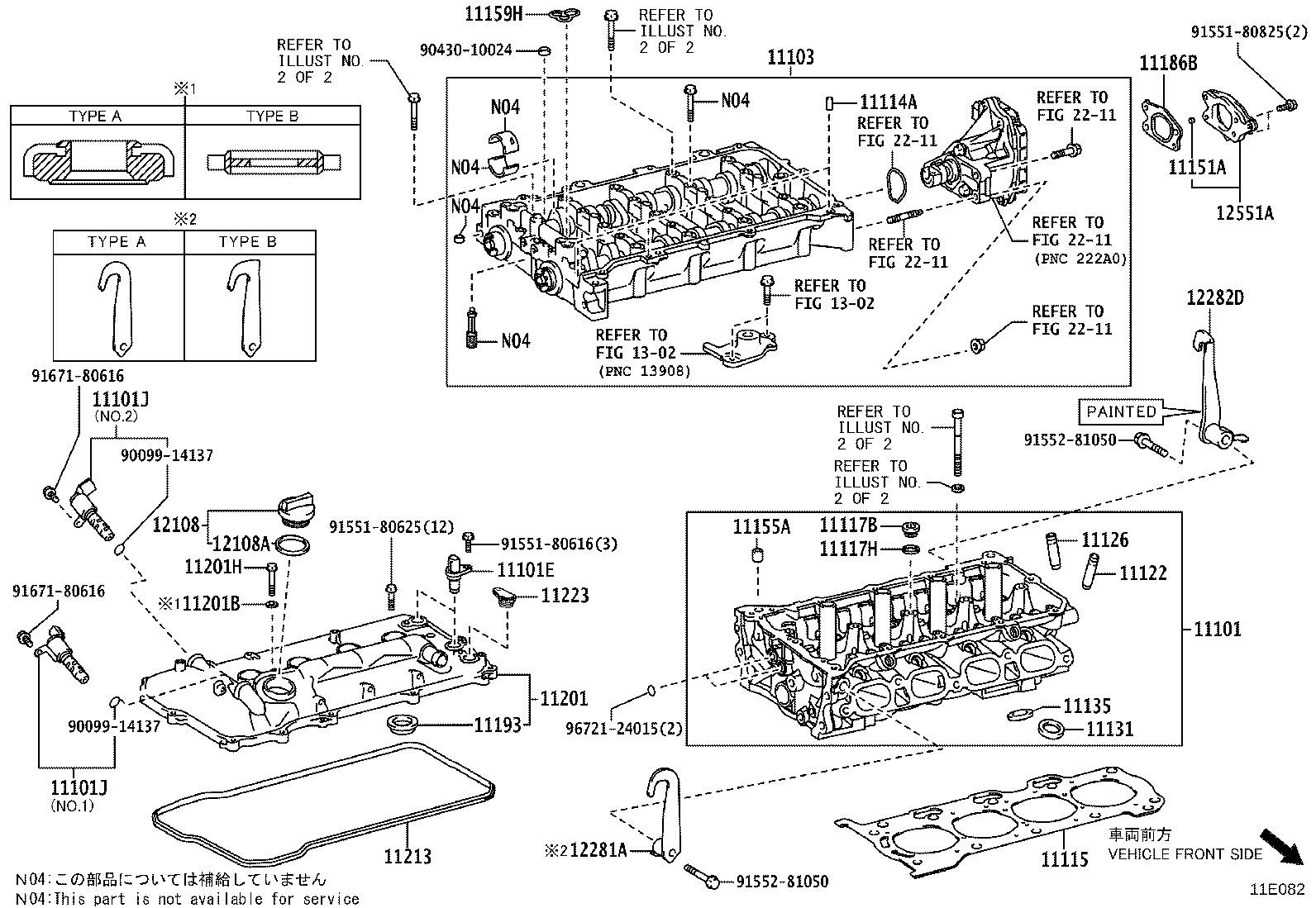

ILLUST NO. 2 OF 2(1901- )2ZRFAE

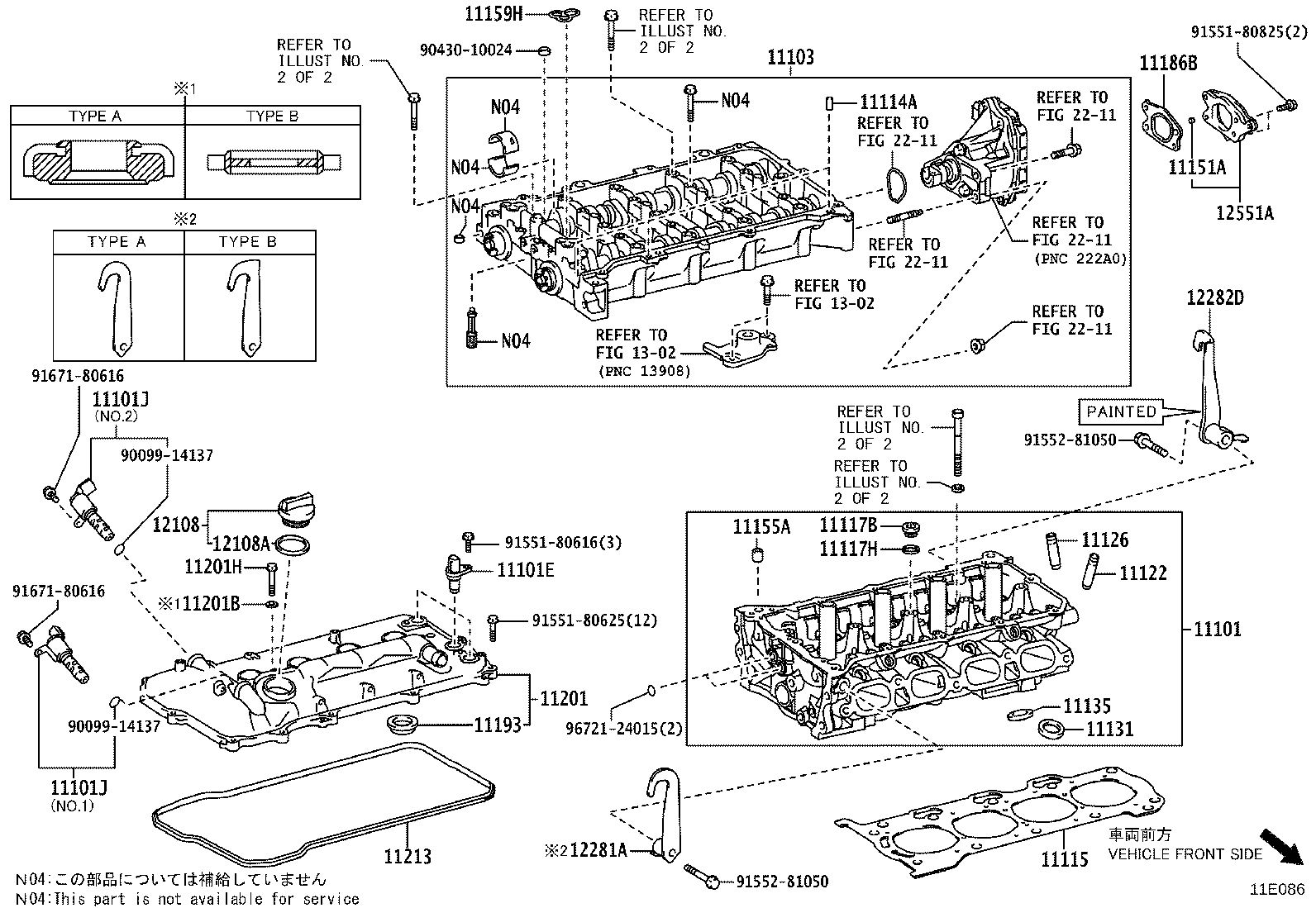

ILLUST NO. 1 OF 2(1901- )2ZRFAE

ILLUST NO. 1 OF 2(1901- )2ZRFAE

ILLUST NO. 2 OF 2(1901- )2ZRFAE
