ZRE212L-AEFDP (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF27(1901- )ZRE212
Click highlighted areas on diagram

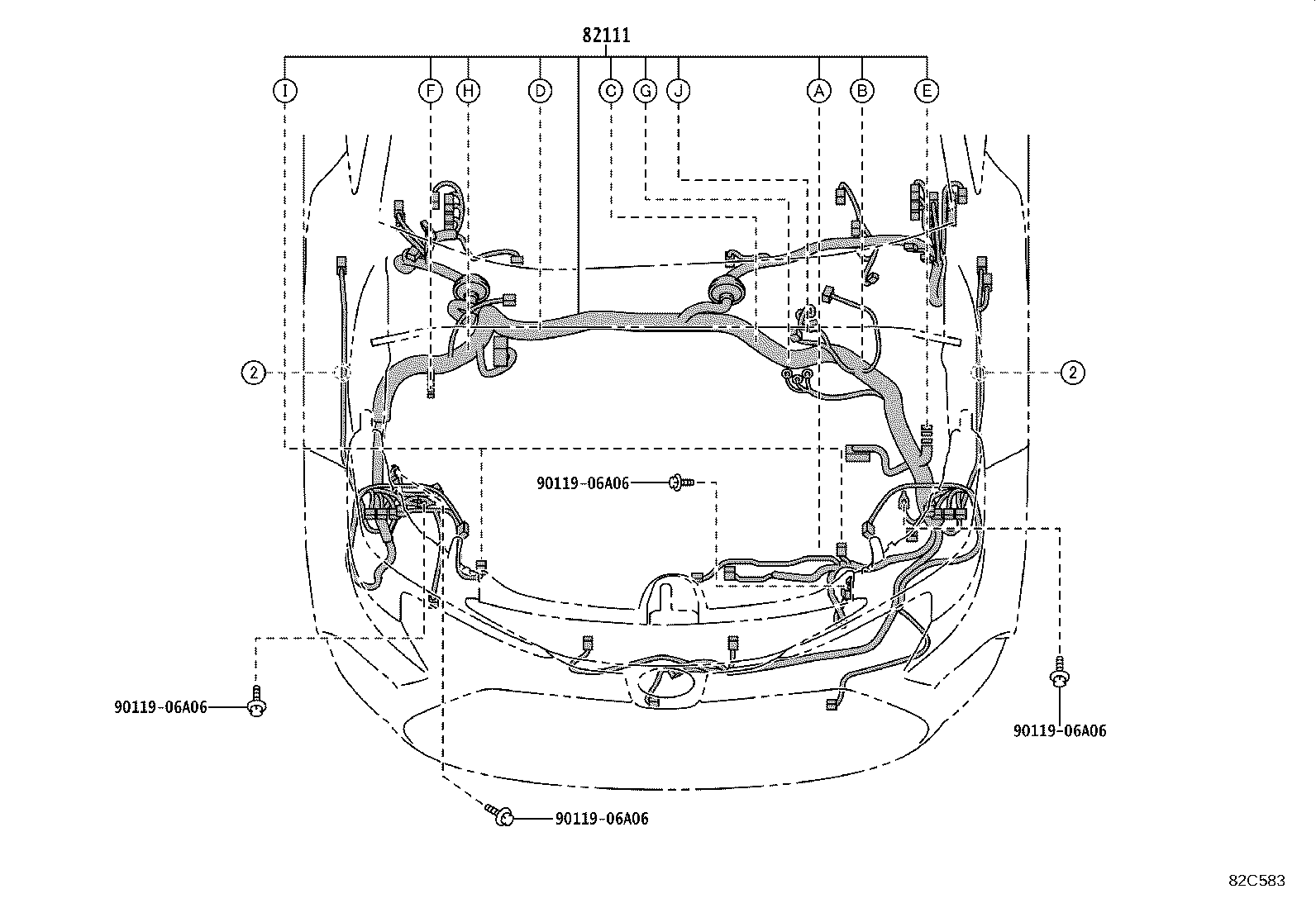

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1KD00 |
ZRE212..6F |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
ILLUST NO. 2 OF27(1901- )ZRE212
Click highlighted areas on diagram

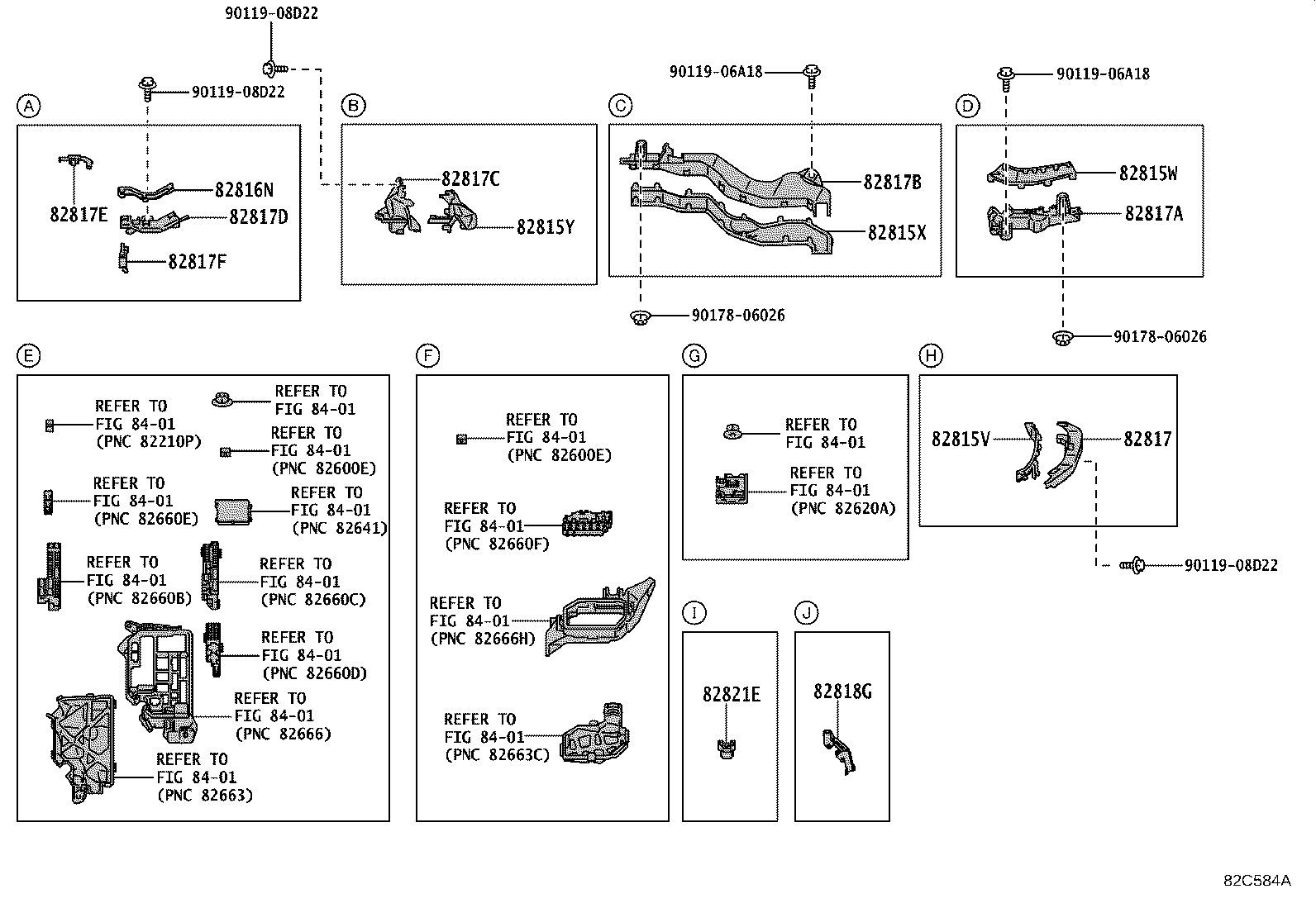

ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-12L00 |
ZRE212..LHD |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-12L10 |
ZRE212..LHD |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12L20 |
ZRE212..LHD |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-12L30 |
ZRE212..LHD |
1 | ||
| 82816N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-12L40 |
ZRE212 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12Y70 |
ZRE212..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12Y80 |
ZRE212..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12Y90 |
ZRE212..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12Z00 |
ZRE212..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12Z20 |
ZRE212 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12Z10 |
MZEA12,ZRE212 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12Z50 |
ZRE212 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12W30 |
ZRE212..LHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
MZEA12,ZRE212 |
2 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF27(1901- )ZRE212..6F
Click highlighted areas on diagram

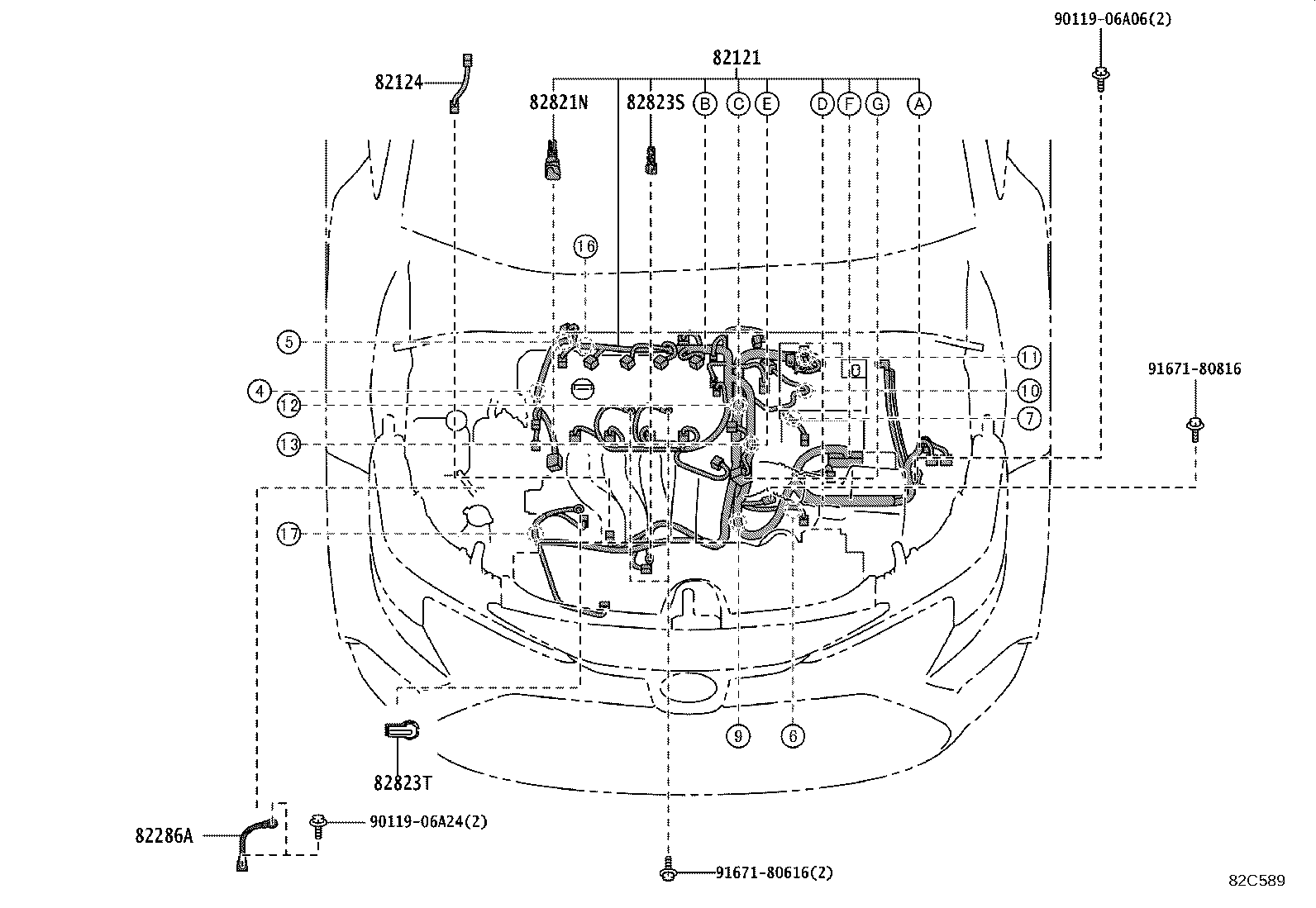

ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO. 8 OF27(1901- )ZRE212..6F
Click highlighted areas on diagram

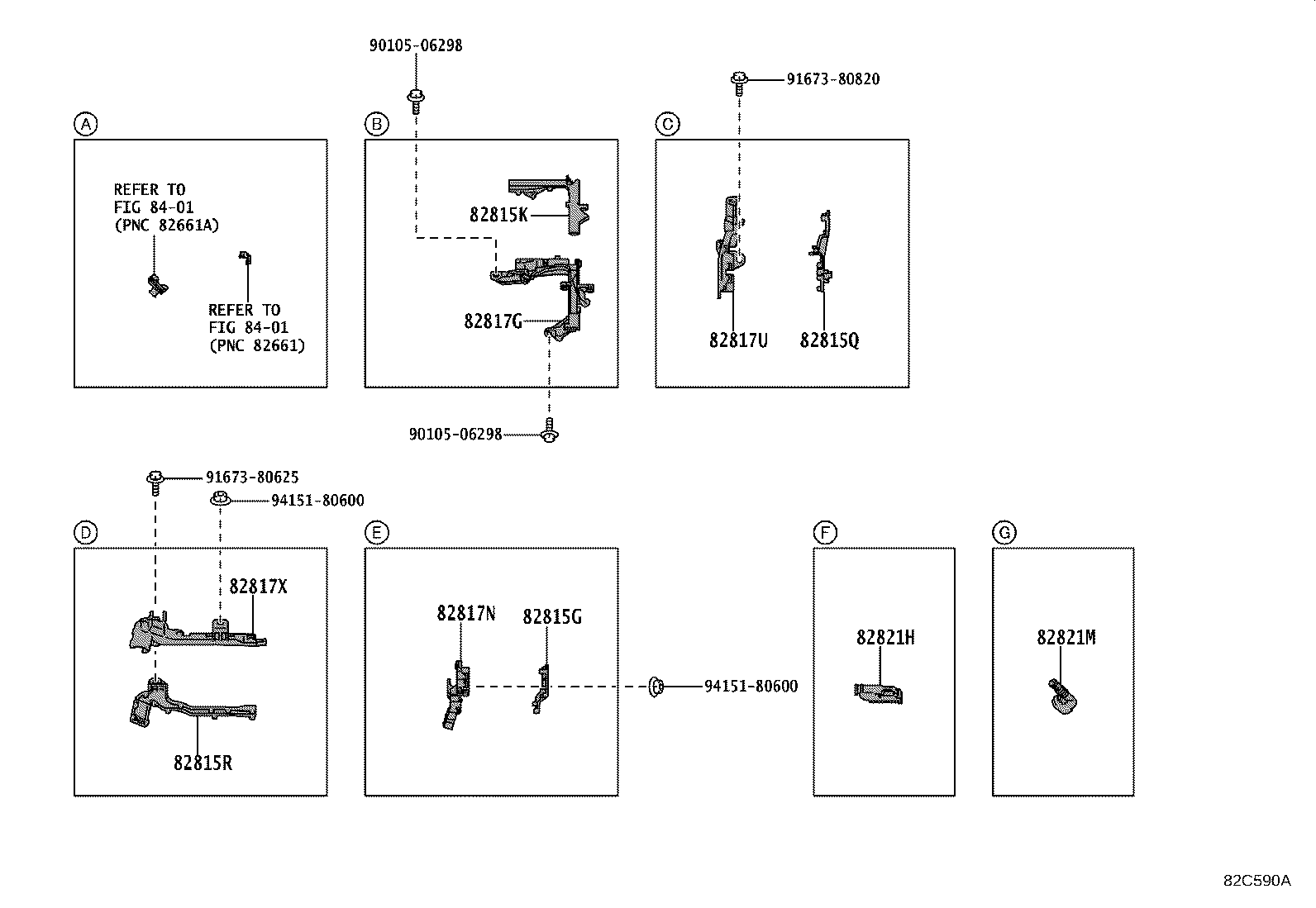

ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12K70 |
ZRE212 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12K40 |
ZRE212 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-12K50 |
ZRE212 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-12K60 |
ZRE212 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12V60 |
ZRE212 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12V90 |
ZRE212 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-12V70 |
ZRE212 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12V80 |
ZRE212 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-33310 |
ZRE212 |
1 | ||
| 82821-12C20 |
ZRE212 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-60100 |
ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 91673-80625 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.17 OF27(1901- )
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.18 OF27(1901- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12S40 |
ZRE212..LHD..L |
1 | ||
| 82151-1AB80 |
ZRE212..LHD..D |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1AA80 |
ZRE212..LHD..D |
1 | ||
| 82152-12Y40 |
ZRE212,ZWE211..LHD..L |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12C10 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12B70 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
ILLUST NO.19 OF27(1901- )ZRE212
Click highlighted areas on diagram

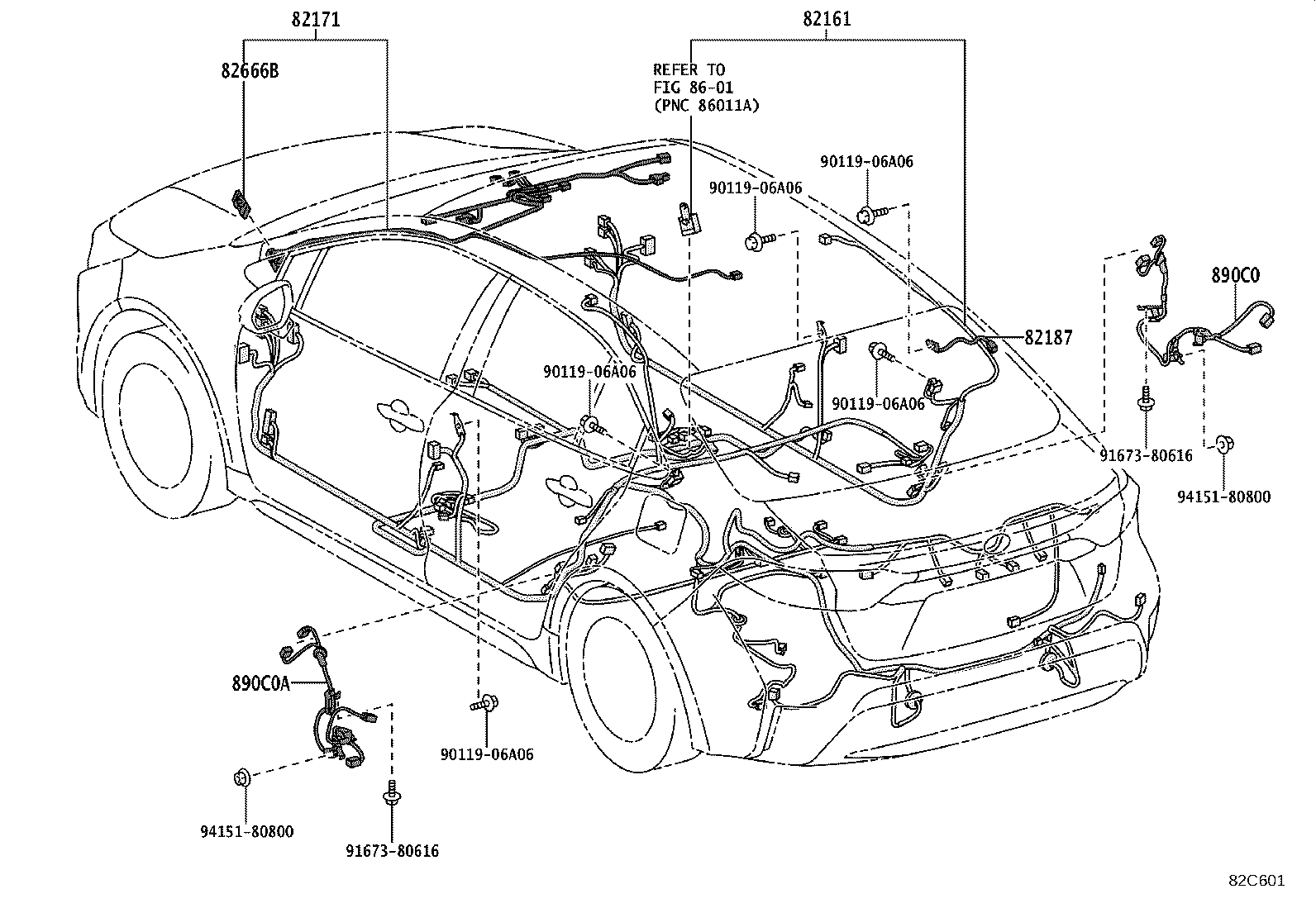

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-12S30 |
ZRE212..LHD..D |
1 | ||
| 82161-12S50 |
ZRE212..LHD..L |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12M90 |
ZRE212..6F |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO.23 OF27(1901- )
Click highlighted areas on diagram
SEAT
| Part # | Description | Qty | Price |
|---|
ILLUST NO.24 OF27(1901- )
Click highlighted areas on diagram
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12631-37010 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12N40 | ||||
| 82715-12P60 | ||||
| 82715-12S30 | ||||
| 82715-12T40 | ||||
| 82715-12T60 | ||||
| 82715-12T70 | ||||
| 82715-12T80 | ||||
| 82715-12U00 | ||||
| 82715-12W00 | ||||
| 82715-12W10 | ||||
| 82715-12W20 | ||||
| 82715-12W50 | ||||
| 82715-28L90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47850 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 90179-06274 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||
ILLUST NO.25 OF27(1901- )
Click highlighted areas on diagram
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-10340 | ||||
| 82715-12U10 | ||||
| 82715-12U20 | ||||
| 82715-12U50 | ||||
| 82715-12U60 | ||||
| 82715-12U70 | ||||
| 82715-12U90 | ||||
| 82715-12V00 | ||||
| 82715-12W70 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47A20 | ||||
| 82715-76790 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
ILLUST NO.26 OF27(1901- )
Click highlighted areas on diagram
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10858 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12732 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12D34 | ||||
ILLUST NO.27 OF27(1901- )
Click highlighted areas on diagram
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||
ILLUST NO. 1 OF34(1901- )ZRE212..LHD
Click highlighted areas on diagram
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1KD00 |
ZRE212..6F |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
ILLUST NO. 2 OF34(1901- )ZRE212..LHD
Click highlighted areas on diagram
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-12L00 |
ZRE212..LHD |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-12L10 |
ZRE212..LHD |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12L20 |
ZRE212..LHD |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-12L30 |
ZRE212..LHD |
1 | ||
| 82816N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-12L40 |
ZRE212 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12Y70 |
ZRE212..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12Y80 |
ZRE212..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12Y90 |
ZRE212..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12Z00 |
ZRE212..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12Z20 |
ZRE212 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12Z10 |
MZEA12,ZRE212 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12Z50 |
ZRE212 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12W30 |
ZRE212..LHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
MZEA12,ZRE212 |
2 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.12 OF34(1901- )ZRE212..6F
Click highlighted areas on diagram
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12K70 |
ZRE212 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12K40 |
ZRE212 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-12K50 |
ZRE212 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-12K60 |
ZRE212 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12V60 |
ZRE212 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12V90 |
ZRE212 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-12V70 |
ZRE212 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12V80 |
ZRE212 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-33310 |
ZRE212 |
1 | ||
| 82821-12C20 |
ZRE212 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-60100 |
ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 91673-80625 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.23 OF34(1901- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12S40 |
ZRE212..LHD..L |
1 | ||
| 82151-1AB80 |
ZRE212..LHD..D |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1AA80 |
ZRE212..LHD..D |
1 | ||
| 82152-12Y40 |
ZRE212,ZWE211..LHD..L |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12C10 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12B70 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
ILLUST NO.24 OF34(1901- )ZRE212
Click highlighted areas on diagram
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-12S30 |
ZRE212..LHD..D |
1 | ||
| 82161-12S50 |
ZRE212..LHD..L |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12M90 |
ZRE212..6F |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO.28 OF34(1901- )LHD
Click highlighted areas on diagram
SEAT
| Part # | Description | Qty | Price |
|---|
ILLUST NO.21 OF34(1901- )LHD
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1KW80 |
ZRE212..6F..D |
1 | ||
| 82141-1TL80 |
ZRE212..6F..L |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12670 |
ZRE212..LHD..L |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-12B80 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-12B80 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12680 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26180 |
ZRE212,ZWE211..LHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-12670 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.30 OF34(1901- )
Click highlighted areas on diagram
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12631-37010 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12N40 | ||||
| 82715-12S30 | ||||
| 82715-12T40 | ||||
| 82715-12T60 | ||||
| 82715-12T70 | ||||
| 82715-12T80 | ||||
| 82715-12U00 | ||||
| 82715-12U10 | ||||
| 82715-12W00 | ||||
| 82715-12W10 | ||||
| 82715-12W20 | ||||
| 82715-12W50 | ||||
| 82715-28L90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47850 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 90179-06274 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||
ILLUST NO.11 OF34(1901- )ZRE212..6F
Click highlighted areas on diagram
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12R30 |
ZRE212..6F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZRE212,ZWE211 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-47010 |
ZRE212,ZWE211 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-12B60 |
ZRE212 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12120 |
ZRE212 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZRE212 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO.32 OF34(1901- )
Click highlighted areas on diagram
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10858 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-11660 | ||||
| 90980-12520 | ||||
| 90980-12732 | ||||
| 90980-12D34 | ||||
| 90980-12E29 | ||||
| 90980-WA052 | ||||
ILLUST NO.33 OF34(1901- )
Click highlighted areas on diagram
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11246 | ||||
| 90980-11399 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12732 | ||||
| 90980-12790 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
ILLUST NO.31 OF34(1901- )
Click highlighted areas on diagram
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-10340 | ||||
| 82715-12U20 | ||||
| 82715-12U50 | ||||
| 82715-12U60 | ||||
| 82715-12U70 | ||||
| 82715-12U90 | ||||
| 82715-12V00 | ||||
| 82715-12V30 | ||||
| 82715-12W70 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47A20 | ||||
| 82715-76790 | ||||
| 90119-06A06 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
ILLUST NO.34 OF34(1901- )
Click highlighted areas on diagram
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
