MZEA12R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )RHD

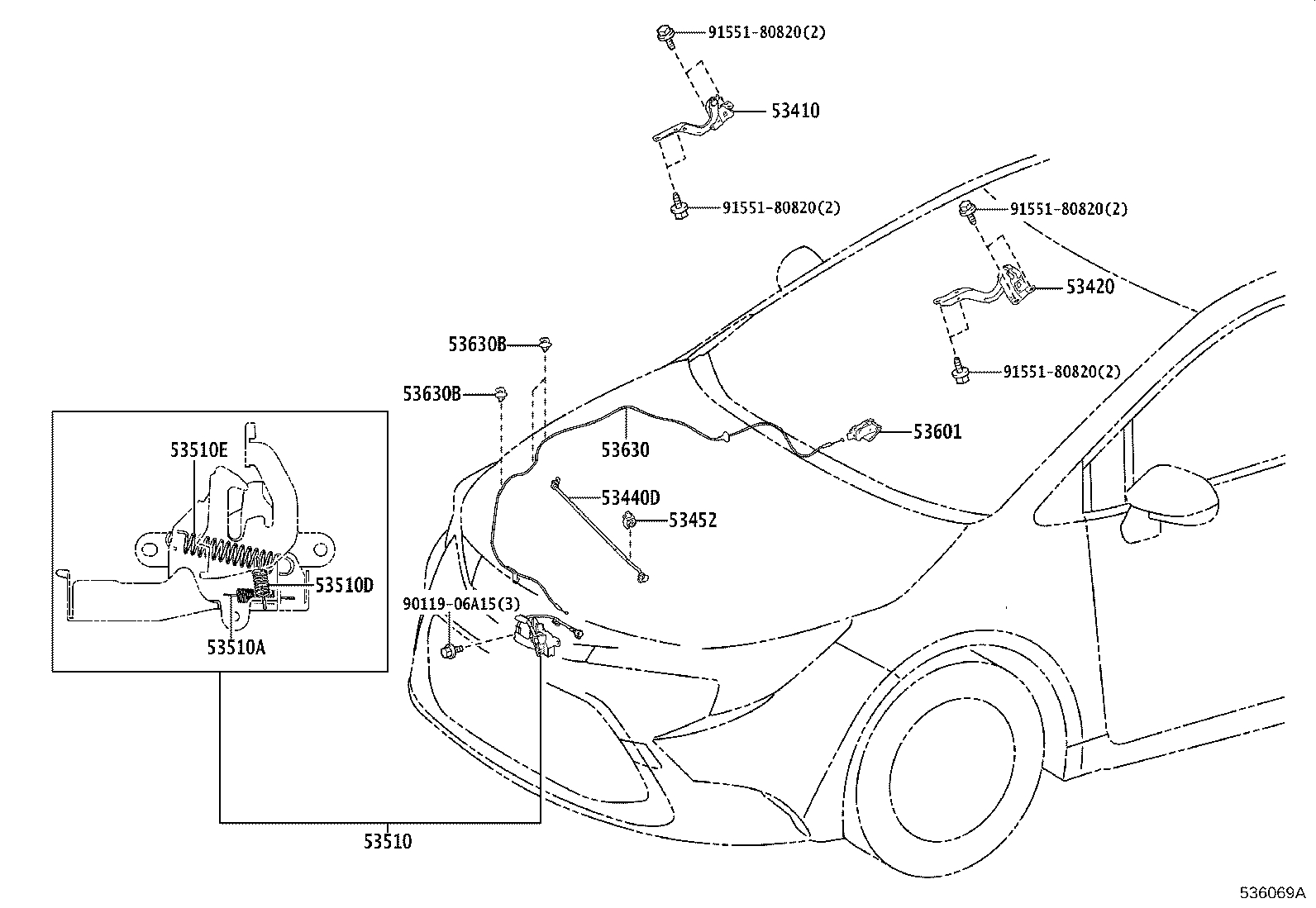

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53510 53510A 53510D 53510E 53601 53630 53630B 53630B 9011906A15 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53440D - SUPPORT ASSY, HOOD
53440-12220

MZEA12,ZRE212,ZWE211

 1
53510 - LOCK ASSY, HOOD
53510-12C70

MZEA12..L;MZEA12..6F

SOUTH AFRICA SPEC

 1
53510-12C11

MZEA12,ZWE211..ARL

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

MZEA12,ZRE212,ZWE211

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

MZEA12,ZRE212,ZWE211

WD=1.2,CW=8.5

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30100C0

ZRE212..D;MZEA12,ZWE211..ARL

BLACK,TRIM1#,2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12730

MZEA12,ZRE212,ZWE211..RHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

MZEA12,ZRE212,ZWE211

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

MZEA12,ZRE212,ZWE211

 3
Common parts
90119-06A15
91551-80820
