AE82L-ELMNCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Aug 1984
Engine
4ALC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

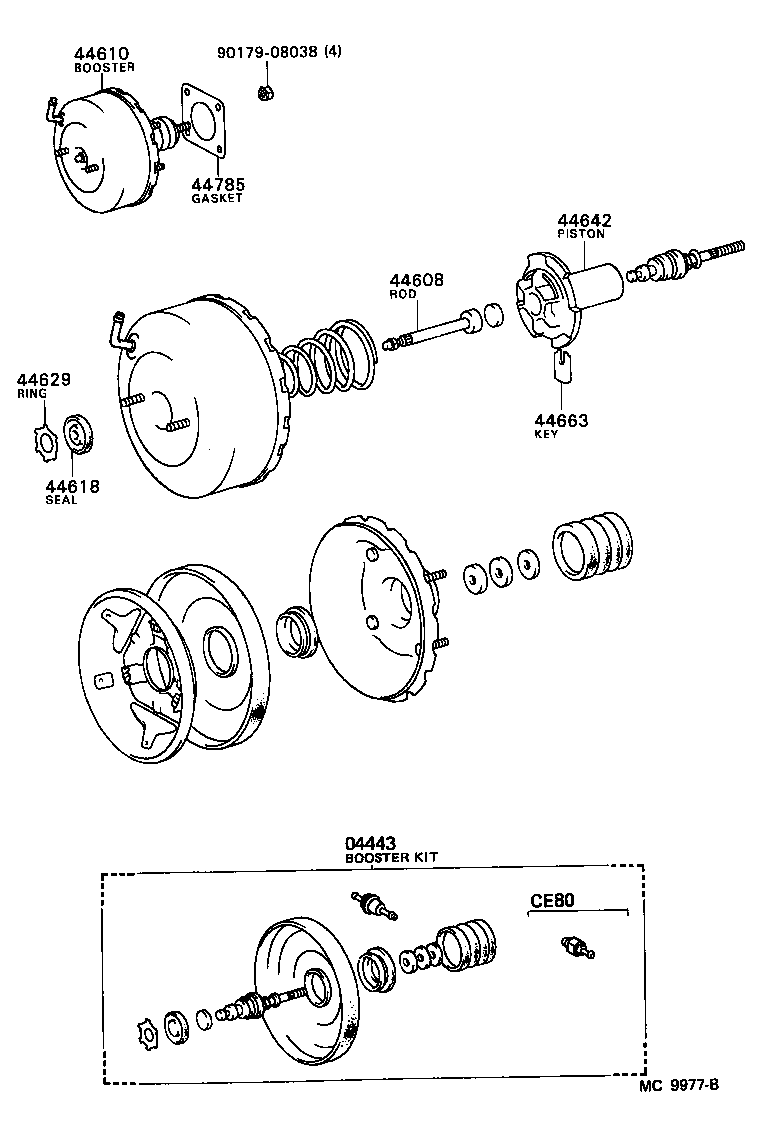

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12340 |
AE82 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
AE82,CE80 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12520 |
AE82,CE80 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE82,CE80 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE82,CE80 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-12520 |
AE82,CE80 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AE82,CE80 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE82,CE80 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8308- )

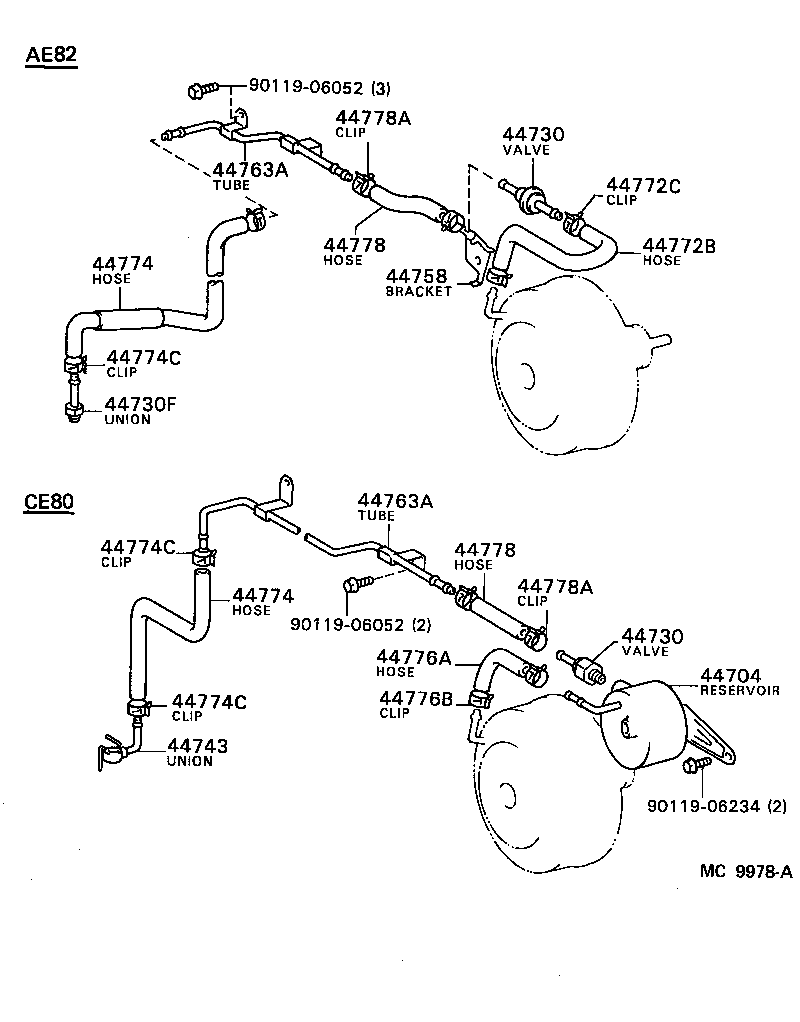

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE82 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE82 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE82 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12220 |
AE82 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12020 |
AE82 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12020 |
AE82 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12201 |
AE82 |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AE82 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12040 |
AE82 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12040 |
AE82 |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
AE82,CE80 |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
AE82,CE80 |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
AE82,CE80 |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44772-12240 |
AE82 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44772-12240 |
AE82 |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AE82,CE80 |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AE82,CE80 |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90119-06234 | ||||
